Dune::Fem::GridTimeProvider< Grid > Class Template Reference

the same functionality as the Dune::TimeProvider. More...

#include <dune/fem/solver/timeprovider.hh>

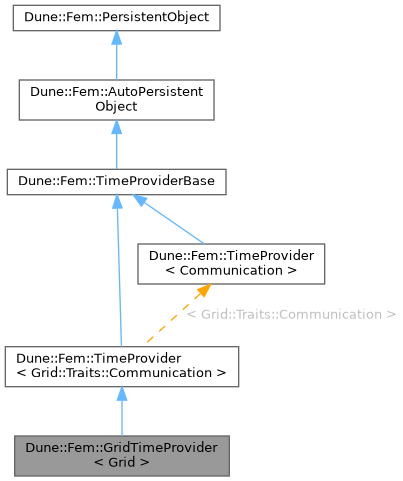

Inheritance diagram for Dune::Fem::GridTimeProvider< Grid >:

Public Types
typedef Grid::Traits::Communication	CommunicationType

Public Member Functions
	GridTimeProvider (const Grid &grid)
	GridTimeProvider (const double startTime, const Grid &grid)
	GridTimeProvider (const double startTime, const double cfl, const Grid &grid)
virtual	~GridTimeProvider ()
void	init ()
	init dt with time step estimate
void	init (const double timeStep)
	init dt with provided time step
void	next ()
	goto next time step
void	next (const double timeStep)
	goto next time step
double	factor () const
	return the global factor number
void	restore (const double time, const int timeStep)
	restore time and timestep from outside (i.e. from former calculation)
virtual void	restore ()
	restore persistent object
virtual void	backup () const
	backup persistent object
double	time () const
	obtain the current time
int	timeStep () const
	obtain number of the current time step
double	deltaT () const
	obtain the size of the current time step
double	inverseDeltaT () const
	obtain the size of the inverse of the current time step
double	timeStepEstimate () const
	obtain current estimate on time step
void	provideTimeStepEstimate (const double dtEstimate)
	set time step estimate to minimum of given value and internal time step estiamte
void	provideTimeStepUpperBound (const double upperBound)
	set upper bound for time step to minimum of given value and internal bound
void	invalidateTimeStep ()
	count current time step a not valid
bool	timeStepValid () const
	return if this time step should be used

Protected Member Functions
void	initTimeStep (const double dtEstimate)
double	getCflFactor () const
int	getUpdateStep () const
void	advance ()
void	initTimeStepEstimate ()
virtual void	insertSubData ()
	insert possible sub data of object
virtual void	removeSubData ()
	remove possible sub data of object
virtual void *	pointer ()

Protected Attributes
const DofManagerType &	dm_
int	sequence_
const CommunicationType &	comm_
const double	cfl_
const int	updateStep_
int	counter_
ParameterReader	parameter_
double	dt_
double	invdt_
double	dtEstimate_
double	dtUpperBound_
bool	valid_
int	timeStep_
double	time_
bool	dtEstimateValid_

Detailed Description

template<class Grid>
class Dune::Fem::GridTimeProvider< Grid >

the same functionality as the Dune::TimeProvider.

This implementation of a timeprovider takes the Communication from a Dune::Grid instance.

Member Typedef Documentation

CommunicationType

template<class Grid >

typedef Grid::Traits::Communication Dune::Fem::GridTimeProvider< Grid >::CommunicationType

Constructor & Destructor Documentation

GridTimeProvider() [1/3]

template<class Grid >

Dune::Fem::GridTimeProvider< Grid >::GridTimeProvider ( const Grid &  grid )

inlineexplicit

GridTimeProvider() [2/3]

template<class Grid >

Dune::Fem::GridTimeProvider< Grid >::GridTimeProvider ( const double  startTime, const Grid &  grid  )

inline

GridTimeProvider() [3/3]

template<class Grid >

Dune::Fem::GridTimeProvider< Grid >::GridTimeProvider ( const double  startTime, const double  cfl, const Grid &  grid  )

inline

~GridTimeProvider()

template<class Grid >

virtual Dune::Fem::GridTimeProvider< Grid >::~GridTimeProvider ( )

inlinevirtual

Member Function Documentation

advance()

void Dune::Fem::TimeProviderBase::advance ( )

inlineprotectedinherited

backup()

virtual void Dune::Fem::TimeProvider< Grid::Traits::Communication >::backup ( ) const

inlinevirtualinherited

backup persistent object

Implements Dune::Fem::PersistentObject.

deltaT()

double Dune::Fem::TimeProviderBase::deltaT ( ) const

inlineinherited

obtain the size of the current time step

Returns

the size of the current time step

factor()

double Dune::Fem::TimeProvider< Grid::Traits::Communication >::factor ( ) const

inlineinherited

return the global factor number

Returns

time step factor

getCflFactor()

double Dune::Fem::TimeProvider< Grid::Traits::Communication >::getCflFactor ( ) const

inlineprotectedinherited

getUpdateStep()

int Dune::Fem::TimeProvider< Grid::Traits::Communication >::getUpdateStep ( ) const

inlineprotectedinherited

init() [1/2]

void Dune::Fem::TimeProvider< Grid::Traits::Communication >::init ( )

inlineinherited

init dt with time step estimate

init() [2/2]

void Dune::Fem::TimeProvider< Grid::Traits::Communication >::init ( const double  timeStep )

inlineinherited

init dt with provided time step

Parameters

[in]

timeStep

value of the first time step (is multiplied with factor)

initTimeStep()

template<class Grid >

void Dune::Fem::GridTimeProvider< Grid >::initTimeStep ( const double  dtEstimate )

inlineprotected

initTimeStepEstimate()

void Dune::Fem::TimeProviderBase::initTimeStepEstimate ( )

inlineprotectedinherited

insertSubData()

virtual void Dune::Fem::PersistentObject::insertSubData ( )

inlineprotectedvirtualinherited

insert possible sub data of object

Reimplemented in Dune::Fem::DiscreteFunctionDefault< Impl >, Dune::Fem::DiscreteFunctionDefault< AdaptiveDiscreteFunction< DiscreteFunctionSpace > >, Dune::Fem::DiscreteFunctionDefault< BlockVectorDiscreteFunction< DiscreteFunctionSpace, BlockVector > >, Dune::Fem::DiscreteFunctionDefault< CombinedDiscreteFunction< ContainedDiscreteFunctionImp, N > >, Dune::Fem::DiscreteFunctionDefault< HierarchicalDiscreteFunction< DiscreteFunctionSpace > >, Dune::Fem::DiscreteFunctionDefault< ISTLBlockVectorDiscreteFunction< DiscreteFunctionSpace, Block > >, Dune::Fem::DiscreteFunctionDefault< TupleDiscreteFunction< DiscreteFunctions ... > >, and Dune::Fem::DiscreteFunctionDefault< VectorDiscreteFunction< DiscreteFunctionSpace, Vector > >.

invalidateTimeStep()

void Dune::Fem::TimeProviderBase::invalidateTimeStep ( )

inlineinherited

count current time step a not valid

inverseDeltaT()

double Dune::Fem::TimeProviderBase::inverseDeltaT ( ) const

inlineinherited

obtain the size of the inverse of the current time step

Returns

the size of the inverse of the current time step

next() [1/2]

void Dune::Fem::TimeProvider< Grid::Traits::Communication >::next ( )

inlineinherited

goto next time step

Sets the size of the next time step to the current time step estimate and sets the estimate to infinity.

next() [2/2]

void Dune::Fem::TimeProvider< Grid::Traits::Communication >::next ( const double  timeStep )

inlineinherited

goto next time step

Sets the size of the next time step to the provided time step value and sets the estimate to infinity.

Parameters

[in]

timeStep

value of the next time step (is multiplied with factor)

pointer()

virtual void * Dune::Fem::PersistentObject::pointer ( )

inlineprotectedvirtualinherited

Reimplemented in Dune::Fem::PersistenceManager::WrapObject< ObjectType, false >.

provideTimeStepEstimate()

void Dune::Fem::TimeProviderBase::provideTimeStepEstimate ( const double  dtEstimate )

inlineinherited

set time step estimate to minimum of given value and internal time step estiamte

Parameters

[in]

dtEstimate

time step size estimate

provideTimeStepUpperBound()

void Dune::Fem::TimeProviderBase::provideTimeStepUpperBound ( const double  upperBound )

inlineinherited

set upper bound for time step to minimum of given value and internal bound

Parameters

[in]

upperBound

time step size estimate

removeSubData()

virtual void Dune::Fem::PersistentObject::removeSubData ( )

inlineprotectedvirtualinherited

remove possible sub data of object

Reimplemented in Dune::Fem::DiscreteFunctionDefault< Impl >, Dune::Fem::DiscreteFunctionDefault< AdaptiveDiscreteFunction< DiscreteFunctionSpace > >, Dune::Fem::DiscreteFunctionDefault< BlockVectorDiscreteFunction< DiscreteFunctionSpace, BlockVector > >, Dune::Fem::DiscreteFunctionDefault< CombinedDiscreteFunction< ContainedDiscreteFunctionImp, N > >, Dune::Fem::DiscreteFunctionDefault< HierarchicalDiscreteFunction< DiscreteFunctionSpace > >, Dune::Fem::DiscreteFunctionDefault< ISTLBlockVectorDiscreteFunction< DiscreteFunctionSpace, Block > >, Dune::Fem::DiscreteFunctionDefault< TupleDiscreteFunction< DiscreteFunctions ... > >, and Dune::Fem::DiscreteFunctionDefault< VectorDiscreteFunction< DiscreteFunctionSpace, Vector > >.

restore() [1/2]

virtual void Dune::Fem::TimeProvider< Grid::Traits::Communication >::restore ( )

inlinevirtualinherited

restore persistent object

Implements Dune::Fem::PersistentObject.

restore() [2/2]

void Dune::Fem::TimeProvider< Grid::Traits::Communication >::restore ( const double  time, const int  timeStep  )

inlineinherited

restore time and timestep from outside (i.e. from former calculation)

Parameters

[in]	time	new time
[in]	timeStep	new time step counter

time()

double Dune::Fem::TimeProviderBase::time ( ) const

inlineinherited

obtain the current time

Returns

the current time

timeStep()

int Dune::Fem::TimeProviderBase::timeStep ( ) const

inlineinherited

obtain number of the current time step

Returns

the current time step counter

timeStepEstimate()

double Dune::Fem::TimeProviderBase::timeStepEstimate ( ) const

inlineinherited

obtain current estimate on time step

Returns

the current estimate for the time step

timeStepValid()

bool Dune::Fem::TimeProviderBase::timeStepValid ( ) const

inlineinherited

return if this time step should be used

Member Data Documentation

cfl_

const double Dune::Fem::TimeProvider< Grid::Traits::Communication >::cfl_

protectedinherited

comm_

const CommunicationType& Dune::Fem::TimeProvider< Grid::Traits::Communication >::comm_

protectedinherited

counter_

int Dune::Fem::TimeProvider< Grid::Traits::Communication >::counter_

protectedinherited

dm_

template<class Grid >

const DofManagerType& Dune::Fem::GridTimeProvider< Grid >::dm_

protected

dt_

double Dune::Fem::TimeProviderBase::dt_

protectedinherited

dtEstimate_

double Dune::Fem::TimeProviderBase::dtEstimate_

protectedinherited

dtEstimateValid_

bool Dune::Fem::TimeProviderBase::dtEstimateValid_

protectedinherited

dtUpperBound_

double Dune::Fem::TimeProviderBase::dtUpperBound_

protectedinherited

invdt_

double Dune::Fem::TimeProviderBase::invdt_

protectedinherited

parameter_

ParameterReader Dune::Fem::TimeProviderBase::parameter_

protectedinherited

sequence_

template<class Grid >

int Dune::Fem::GridTimeProvider< Grid >::sequence_

protected

time_

double Dune::Fem::TimeProviderBase::time_

protectedinherited

timeStep_

int Dune::Fem::TimeProviderBase::timeStep_

protectedinherited

updateStep_

const int Dune::Fem::TimeProvider< Grid::Traits::Communication >::updateStep_

protectedinherited

valid_

bool Dune::Fem::TimeProviderBase::valid_

protectedinherited

---

The documentation for this class was generated from the following file:

• timeprovider.hh
