Public Types | Public Member Functions | Static Public Member Functions | Static Public Attributes | Protected Types | Protected Member Functions | Static Protected Member Functions | List of all members
Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature > Class Template Reference

constructor More...

#include <dune/fem/quadrature/cachingquadrature.hh>

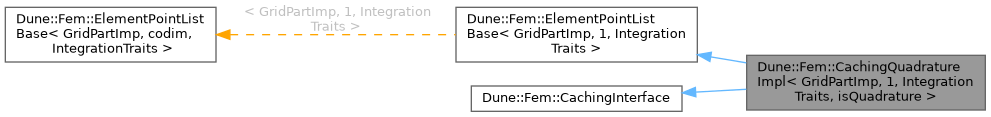

Inheritance diagram for Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >:
Inheritance graph

Public Types

typedef GridPartImp GridPartType
 type of the grid partition

typedef Base::RealType RealType

typedef Base::CoordinateType CoordinateType
 Type of coordinates in codim-0 reference element.

typedef GridPartType::IntersectionIteratorType IntersectionIteratorType
 Type of the intersection iterator.

typedef IntersectionIteratorType::Intersection IntersectionType

typedef QuadraturePointWrapper< This > QuadraturePointWrapperType

typedef QuadraturePointIterator< This > IteratorType
 type of iterator

typedef ElementQuadratureImpl< GridPartType, codimension, IntegrationTraits, isQuadrature > NonConformingQuadratureType
 type of quadrature used for non-conforming intersections

typedef GridPartType::TwistUtilityType TwistUtilityType

typedef IntersectionIteratorType IntersectionIterator

enum  Side
 inside and outside flags More...

typedef IntegrationTraits::IntegrationPointListType IntegrationPointListType
 type of the integration point list

typedef IntegrationPointListType::CoordinateType LocalCoordinateType


Public Member Functions

template<class QuadratureKeyType >
 CachingQuadratureImpl (const GridPartType &gridPart, const IntersectionType &intersection, const QuadratureKeyType &quadKey, const typename Base ::Side side)
 constructor

const QuadraturePointWrapperType operator[] (const size_t i) const

IteratorType begin () const noexcept

IteratorType end () const noexcept

Base::Side side () const

bool isInside () const

const CoordinateType & point (const size_t i) const
 obtain coordinates of i-th integration point

auto weight (std::size_t i) const
 obtain weight of i-th integration point (if quadrature, else 1.0)

const IntersectionType & intersection () const

int twistId () const
 returns the twistId, i.e. [0,...,7]

size_t cachingPoint (const size_t quadraturePoint) const
 map quadrature points to caching points

size_t interpolationPoint (const size_t quadraturePoint) const
 map quadrature points to interpolation points

bool isInterpolationQuadrature (const size_t numShapeFunctions) const
 check if quadrature is interpolation quadrature

size_t localCachingPoint (const size_t i) const

size_t nop () const
 obtain the number of integration points

const LocalCoordinateType & localPoint (size_t i) const
 obtain local coordinates of i-th integration point

size_t id () const
 obtain the identifier of the integration point list

int order () const
 obtain order of the integration point list

GeometryType geometry () const
 obtain GeometryType for this integration point list

GeometryType elementGeometry () const
 obtain GeometryType of the corresponding codim-0 the integration point list belongs to

int nCachingPoints () const

int cachingPointStart () const

int localFaceIndex () const


Static Public Member Functions

static constexpr bool twisted ()
 returns true if cachingPoint is not the identity mapping


Static Public Attributes

static const int dimension = Base::dimension

static const int codimension = Base::codimension

static const int pointSetId


Protected Types

typedef CachingTraits< RealType, dimension >::MapperPairType MapperPairType

typedef CachingTraits< RealType, dimension >::PointVectorType PointVectorType

typedef CacheProvider< GridPartType, codimension > CacheProviderType

typedef PointProvider< RealType, dimension, codimension > PointProviderType


Protected Member Functions

template<class QuadratureKeyType >
Base getPointList (const IntersectionType &intersection, const QuadratureKeyType &key, const typename Base ::Side side)

int getTwist (const GridPartType &gridPart, const IntersectionType &intersection, const typename Base ::Side side)

const IntegrationPointListType & quadImp () const
 obtain the actual implementation of the quadrature


Static Protected Member Functions

static GeometryType getFaceGeometry (const GeometryType &elementGeo, const int face)


Detailed Description

template<typename GridPartImp, class IntegrationTraits, bool isQuadrature>
class Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >

constructor

Note
The CachingQuadratureImpl requires the grid part to get twist information for TwistUtility (see also ElementIntegrationPointList<GridPartImp,1>).
Parameters
[in]gridPartgrid partition
[in]intersectionintersection
[in]quadKeydesired order of the quadrature or other means of quadrature identification
[in]sideeither INSIDE or OUTSIDE; codim-0 entity for which the ElementQuadrature shall be created

Member Typedef Documentation

◆ CacheProviderType

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
typedef CacheProvider< GridPartType, codimension > Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::CacheProviderType
protected

◆ CoordinateType

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
typedef Base::CoordinateType Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::CoordinateType

Type of coordinates in codim-0 reference element.

◆ GridPartType

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
typedef GridPartImp Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::GridPartType

type of the grid partition

◆ IntegrationPointListType

typedef IntegrationTraits::IntegrationPointListType Dune::Fem::ElementPointListBase< GridPartImp, codim, IntegrationTraits >::IntegrationPointListType
inherited

type of the integration point list

◆ IntersectionIterator

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
typedef IntersectionIteratorType Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::IntersectionIterator

◆ IntersectionIteratorType

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
typedef GridPartType::IntersectionIteratorType Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::IntersectionIteratorType

Type of the intersection iterator.

◆ IntersectionType

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
typedef IntersectionIteratorType::Intersection Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::IntersectionType

◆ IteratorType

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
typedef QuadraturePointIterator< This > Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::IteratorType

type of iterator

◆ LocalCoordinateType

typedef IntegrationPointListType::CoordinateType Dune::Fem::ElementPointListBase< GridPartImp, codim, IntegrationTraits >::LocalCoordinateType
inherited

◆ MapperPairType

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
typedef CachingTraits<RealType,dimension>::MapperPairType Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::MapperPairType
protected

◆ NonConformingQuadratureType

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
typedef ElementQuadratureImpl< GridPartType, codimension, IntegrationTraits, isQuadrature > Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::NonConformingQuadratureType

type of quadrature used for non-conforming intersections

◆ PointProviderType

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
typedef PointProvider< RealType, dimension, codimension> Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::PointProviderType
protected

◆ PointVectorType

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
typedef CachingTraits<RealType,dimension>::PointVectorType Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::PointVectorType
protected

◆ QuadraturePointWrapperType

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
typedef QuadraturePointWrapper< This > Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::QuadraturePointWrapperType

◆ RealType

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
typedef Base::RealType Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::RealType

◆ TwistUtilityType

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
typedef GridPartType::TwistUtilityType Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::TwistUtilityType

Member Enumeration Documentation

◆ Side

enum Dune::Fem::ElementPointListBase::Side
inherited

inside and outside flags

Constructor & Destructor Documentation

◆ CachingQuadratureImpl()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
template<class QuadratureKeyType >
Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::CachingQuadratureImpl ( const GridPartType &  gridPart,
const IntersectionType &  intersection,
const QuadratureKeyType &  quadKey,
const typename Base ::Side  side
)
inline

constructor

Note
The CachingQuadratureImpl requires the grid part to get twist information for TwistUtility (see also ElementIntegrationPointList<GridPartImp,1>).
Parameters
[in]gridPartgrid partition
[in]intersectionintersection
[in]quadKeydesired order of the quadrature or other means of quadrature identification
[in]sideeither INSIDE or OUTSIDE; codim-0 entity for which the ElementQuadrature shall be created

Member Function Documentation

◆ begin()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
IteratorType Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::begin ( ) const
inlinenoexcept

◆ cachingPoint()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
size_t Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::cachingPoint ( const size_t  quadraturePoint) const
inline

map quadrature points to caching points

For codim-1 entites, the mapping consists of two stages:

  • Consider the twist to get the quadrature point number on the face of the (codim-0) reference element,
  • Map the twisted quadrature point number to the caching point number.
Parameters
[in]quadraturePointnumber of quadrature point to map to a caching point

◆ cachingPointStart()

int Dune::Fem::ElementPointListBase< GridPartImp, codim, IntegrationTraits >::cachingPointStart ( ) const
inlineinherited

◆ elementGeometry()

GeometryType Dune::Fem::ElementPointListBase< GridPartImp, codim, IntegrationTraits >::elementGeometry ( ) const
inlineinherited

obtain GeometryType of the corresponding codim-0 the integration point list belongs to

An element integration point list can return the coordinates of integration points with resepct to the codim-0 reference element and the reference element corresponding to the subentity the quadrature actually lives on. This method returns the geometry of the codim-0 entity.

Note
Calling this method yields a virtual function call, so do not call this method unnecessarily.
Returns
GeometryType for this integration point list

◆ end()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
IteratorType Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::end ( ) const
inlinenoexcept

◆ geometry()

GeometryType Dune::Fem::ElementPointListBase< GridPartImp, codim, IntegrationTraits >::geometry ( ) const
inlineinherited

obtain GeometryType for this integration point list

◆ getFaceGeometry()

static GeometryType Dune::Fem::ElementPointListBase< GridPartImp, codim, IntegrationTraits >::getFaceGeometry ( const GeometryType &  elementGeo,
const int  face
)
inlinestaticprotectedinherited

◆ getPointList()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
template<class QuadratureKeyType >
Base Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::getPointList ( const IntersectionType &  intersection,
const QuadratureKeyType &  key,
const typename Base ::Side  side
)
inlineprotected

◆ getTwist()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
int Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::getTwist ( const GridPartType &  gridPart,
const IntersectionType &  intersection,
const typename Base ::Side  side
)
inlineprotected

◆ id()

size_t Dune::Fem::ElementPointListBase< GridPartImp, codim, IntegrationTraits >::id ( ) const
inlineinherited

obtain the identifier of the integration point list

The identifier of an integration point list must be globally unique. Even integration point lists for different dimensions must have different identifiers.

Note
Quadratures are considered distinct if they differ in one of the following points: geometry type, order, dimension or implementation.
Returns
globally unique identifier of the integration point list

◆ interpolationPoint()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
size_t Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::interpolationPoint ( const size_t  quadraturePoint) const
inline

map quadrature points to interpolation points

Parameters
[in]quadraturePointnumber of quadrature point to map to an interpolation point

◆ intersection()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
const IntersectionType & Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::intersection ( ) const
inline

◆ isInside()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
bool Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::isInside ( ) const
inline

◆ isInterpolationQuadrature()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
bool Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::isInterpolationQuadrature ( const size_t  numShapeFunctions) const
inline

check if quadrature is interpolation quadrature

Parameters
[in]numShapeFunctionsnumber of shapeFunctions that has to match number of quadrature points or number of internal interpolation points

◆ localCachingPoint()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
size_t Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::localCachingPoint ( const size_t  i) const
inline

◆ localFaceIndex()

int Dune::Fem::ElementPointListBase< GridPartImp, codim, IntegrationTraits >::localFaceIndex ( ) const
inlineinherited

◆ localPoint()

const LocalCoordinateType & Dune::Fem::ElementPointListBase< GridPartImp, codim, IntegrationTraits >::localPoint ( size_t  i) const
inlineinherited

obtain local coordinates of i-th integration point

This method returns a reference to the local coordinates of the i-th integration point for 0 <= i < nop(). Here, local coordinates means coordinates with respect to the reference element of the subentity.

Parameters
[in]inumber of the integration point, 0 <= i < nop()
Returns
reference to i-th integration point

◆ nCachingPoints()

int Dune::Fem::ElementPointListBase< GridPartImp, codim, IntegrationTraits >::nCachingPoints ( ) const
inlineinherited

◆ nop()

size_t Dune::Fem::ElementPointListBase< GridPartImp, codim, IntegrationTraits >::nop ( ) const
inlineinherited

obtain the number of integration points

Returns
number of integration points within this list

◆ operator[]()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
const QuadraturePointWrapperType Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::operator[] ( const size_t  i) const
inline

◆ order()

int Dune::Fem::ElementPointListBase< GridPartImp, codim, IntegrationTraits >::order ( ) const
inlineinherited

obtain order of the integration point list

The order of a quadrature is the maximal polynomial degree that is guaranteed to be integrated exactly by the quadrature.

In case of an integration point list, the definition of this value is left to the implementor.

Note
Calling this method yields a virtual function call, so do not call this method unnecessarily.
Returns
the order of the integration point list

◆ point()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
const CoordinateType & Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::point ( const size_t  i) const
inline

obtain coordinates of i-th integration point

This method returns a reference to the coordinates of the i-th integration point for 0 <= i < nop(). The integration point is given in local coordinates, i.e., coordinates with respect to the reference element.

Parameters
[in]inumber of the integration point, 0 <= i < nop()
Returns
reference to i-th integration point

◆ quadImp()

const IntegrationPointListType & Dune::Fem::ElementPointListBase< GridPartImp, codim, IntegrationTraits >::quadImp ( ) const
inlineprotectedinherited

obtain the actual implementation of the quadrature

Note
This method may only be used in derived classes.
Returns
a reference to the actual implementation of the quadrature

◆ side()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
Base::Side Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::side ( ) const
inline

◆ twisted()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
static constexpr bool Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::twisted ( )
inlinestaticconstexpr

returns true if cachingPoint is not the identity mapping

◆ twistId()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
int Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::twistId ( ) const
inline

returns the twistId, i.e. [0,...,7]

◆ weight()

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
auto Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::weight ( std::size_t  i) const
inline

obtain weight of i-th integration point (if quadrature, else 1.0)

This method returns the weight of the i-th integration point for 0 <= i < nop() within the quadrature.

Note
The integration point can be obtained via the point() method.
The quadrature weights sum up to the volume of the reference element.
Parameters
[in]inumber of the integration point, 0 <= i < nop()
Returns
weight of the i-th integration point

Member Data Documentation

◆ codimension

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
const int Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::codimension = Base::codimension
static

◆ dimension

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
const int Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::dimension = Base::dimension
static

◆ pointSetId

template<typename GridPartImp , class IntegrationTraits , bool isQuadrature>
const int Dune::Fem::CachingQuadratureImpl< GridPartImp, 1, IntegrationTraits, isQuadrature >::pointSetId
static
Initial value:
= (quadPointSetId > 0) ? quadPointSetId :
SelectQuadraturePointSetId< void > :: value
The documentation for this class was generated from the following file:
Legal Statements / Impressum   |  Hosted by TU Dresden & Uni Heidelberg  |  Generated by   doxygen 1.9.8
