Dune::Fem::CachingInterface Class Reference

interface a cachable quadrature has to implement More...

#include <dune/fem/quadrature/cachingquadrature.hh>

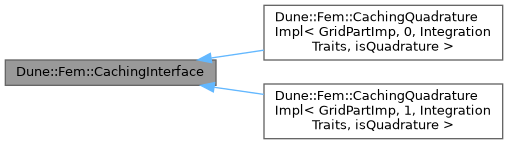

Inheritance diagram for Dune::Fem::CachingInterface:

Public Member Functions
int	twistId () const
	returns the twistId, i.e. [0,...,7]
size_t	cachingPoint (const size_t quadraturePoint) const
	map quadrature points to caching points
size_t	interpolationPoint (const size_t quadraturePoint) const
	map quadrature points to interpolation points
bool	isInterpolationQuadrature (const size_t numShapeFunctions) const
	check if quadrature is interpolation quadrature

Static Public Member Functions
static constexpr bool	twisted ()
	returns true if cachingPoint is not the identity mapping

Protected Member Functions
	CachingInterface ()

Detailed Description

interface a cachable quadrature has to implement

Constructor & Destructor Documentation

CachingInterface()

Dune::Fem::CachingInterface::CachingInterface ( )

inlineprotected

Member Function Documentation

cachingPoint()

size_t Dune::Fem::CachingInterface::cachingPoint ( const size_t  quadraturePoint ) const

inline

map quadrature points to caching points

For codim-1 entites, the mapping consists of two stages:

• Consider the twist to get the quadrature point number on the face of the (codim-0) reference element,
• Map the twisted quadrature point number to the caching point number.

Parameters

[in]

quadraturePoint

number of quadrature point to map to a caching point

interpolationPoint()

size_t Dune::Fem::CachingInterface::interpolationPoint ( const size_t  quadraturePoint ) const

inline

map quadrature points to interpolation points

Parameters

[in]

quadraturePoint

number of quadrature point to map to an interpolation point

isInterpolationQuadrature()

bool Dune::Fem::CachingInterface::isInterpolationQuadrature ( const size_t  numShapeFunctions ) const

inline

check if quadrature is interpolation quadrature

Parameters

[in]

numShapeFunctions

number of shapeFunctions that has to match number of quadrature points or number of internal interpolation points

twisted()

static constexpr bool Dune::Fem::CachingInterface::twisted ( )

inlinestaticconstexpr

returns true if cachingPoint is not the identity mapping

twistId()

int Dune::Fem::CachingInterface::twistId ( ) const

inline

returns the twistId, i.e. [0,...,7]

---

The documentation for this class was generated from the following file:

• cachingquadrature.hh
