Dune::Fem::Stencil< DomainSpace, RangeSpace > Class Template Reference

default implementation for a general operator stencil More...

#include <dune/fem/operator/common/stencil.hh>

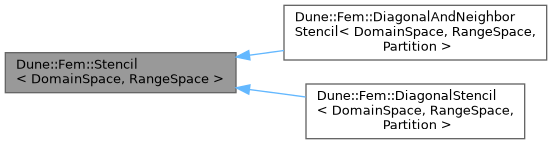

Inheritance diagram for Dune::Fem::Stencil< DomainSpace, RangeSpace >:

Public Types
typedef DomainIteratorType::Entity	DomainEntityType
typedef RangeIteratorType::Entity	RangeEntityType
typedef DomainBlockMapper::GlobalKeyType	DomainGlobalKeyType
typedef RangeBlockMapper::GlobalKeyType	RangeGlobalKeyType
typedef std::set< DomainGlobalKeyType >	LocalStencilType
	type for storing the stencil of one row
typedef std::vector< std::size_t >::size_type	IndexType
	type of std::vector for indexing
typedef std::conditional< indexIsSimple, std::unordered_map< RangeGlobalKeyType, LocalStencilType >, std::map< RangeGlobalKeyType, LocalStencilType > >::type	GlobalStencilType

Public Member Functions
	Stencil (const DomainSpace &dSpace, const RangeSpace &rSpace)
	Constructor.
virtual	~Stencil ()
const DomainSpace &	domainSpace () const
const RangeSpace &	rangeSpace () const
void	fill (const DomainEntityType &dEntity, const RangeEntityType &rEntity, bool fillGhost=true) const
	Create stencil entries for (dEntity,rEntity) pair.
const LocalStencilType &	localStencil (const RangeGlobalKeyType &key) const
	Return stencil for a given row of the matrix.
const GlobalStencilType &	globalStencil () const
	Return the full stencil.
int	maxNonZerosEstimate () const
	Return an upper bound for the maximum number of non-zero entries in all rows.
int	rows () const
int	cols () const
void	update ()
	clear previously computed entries such that a re-compute happens when used again
void	setup ()

Static Public Attributes
static const bool	indexIsSimple = std::is_convertible< RangeGlobalKeyType, IndexType >::value

Protected Member Functions
virtual void	setupStencil () const =0
	method to setup stencil depending on entity set defined in derived class

Protected Attributes
const DomainSpace &	domainSpace_
const RangeSpace &	rangeSpace_
const DomainBlockMapper &	domainBlockMapper_
const RangeBlockMapper &	rangeBlockMapper_
GlobalStencilType	globalStencil_

Detailed Description

template<class DomainSpace, class RangeSpace>
class Dune::Fem::Stencil< DomainSpace, RangeSpace >

default implementation for a general operator stencil

To assemble a matrix from an operator the method reserve has to be called on the linear operator class passing a stencil object as parameter. To setup a full stencil the method fill has to be called with each pair (en,nb) for which the localMatrix method is called during the assembly.

Template Parameters

DomainSpace	type of discrete function space for the domain
RangeSpace	type of discrete function space for the range

Member Typedef Documentation

DomainEntityType

template<class DomainSpace , class RangeSpace >

typedef DomainIteratorType::Entity Dune::Fem::Stencil< DomainSpace, RangeSpace >::DomainEntityType

DomainGlobalKeyType

template<class DomainSpace , class RangeSpace >

typedef DomainBlockMapper::GlobalKeyType Dune::Fem::Stencil< DomainSpace, RangeSpace >::DomainGlobalKeyType

GlobalStencilType

template<class DomainSpace , class RangeSpace >

typedef std::conditional<indexIsSimple,std::unordered_map<RangeGlobalKeyType,LocalStencilType>,std::map<RangeGlobalKeyType,LocalStencilType>>::type Dune::Fem::Stencil< DomainSpace, RangeSpace >::GlobalStencilType

IndexType

template<class DomainSpace , class RangeSpace >

typedef std::vector<std::size_t>::size_type Dune::Fem::Stencil< DomainSpace, RangeSpace >::IndexType

type of std::vector for indexing

LocalStencilType

template<class DomainSpace , class RangeSpace >

typedef std::set< DomainGlobalKeyType > Dune::Fem::Stencil< DomainSpace, RangeSpace >::LocalStencilType

type for storing the stencil of one row

RangeEntityType

template<class DomainSpace , class RangeSpace >

typedef RangeIteratorType::Entity Dune::Fem::Stencil< DomainSpace, RangeSpace >::RangeEntityType

RangeGlobalKeyType

template<class DomainSpace , class RangeSpace >

typedef RangeBlockMapper::GlobalKeyType Dune::Fem::Stencil< DomainSpace, RangeSpace >::RangeGlobalKeyType

Constructor & Destructor Documentation

Stencil()

template<class DomainSpace , class RangeSpace >

Dune::Fem::Stencil< DomainSpace, RangeSpace >::Stencil ( const DomainSpace &  dSpace, const RangeSpace &  rSpace  )

inline

Constructor.

Parameters

[in]	dSpace	domain space
[in]	rSpace	range space

~Stencil()

template<class DomainSpace , class RangeSpace >

virtual Dune::Fem::Stencil< DomainSpace, RangeSpace >::~Stencil ( )

inlinevirtual

Member Function Documentation

cols()

template<class DomainSpace , class RangeSpace >

int Dune::Fem::Stencil< DomainSpace, RangeSpace >::cols ( ) const

inline

domainSpace()

template<class DomainSpace , class RangeSpace >

const DomainSpace & Dune::Fem::Stencil< DomainSpace, RangeSpace >::domainSpace ( ) const

inline

fill()

template<class DomainSpace , class RangeSpace >

void Dune::Fem::Stencil< DomainSpace, RangeSpace >::fill ( const DomainEntityType &  dEntity, const RangeEntityType &  rEntity, bool  fillGhost = true  ) const

inline

Create stencil entries for (dEntity,rEntity) pair.

Parameters

[in]	dEntity	domain entity
[in]	rEntity	range entity
[in]	fillGhost	setup stencil even for a ghost domain entity

globalStencil()

template<class DomainSpace , class RangeSpace >

const GlobalStencilType & Dune::Fem::Stencil< DomainSpace, RangeSpace >::globalStencil ( ) const

inline

Return the full stencil.

localStencil()

template<class DomainSpace , class RangeSpace >

const LocalStencilType & Dune::Fem::Stencil< DomainSpace, RangeSpace >::localStencil ( const RangeGlobalKeyType &  key ) const

inline

Return stencil for a given row of the matrix.

Parameters

[in]

key

key for matrix row

maxNonZerosEstimate()

template<class DomainSpace , class RangeSpace >

int Dune::Fem::Stencil< DomainSpace, RangeSpace >::maxNonZerosEstimate ( ) const

inline

Return an upper bound for the maximum number of non-zero entries in all rows.

rangeSpace()

template<class DomainSpace , class RangeSpace >

const RangeSpace & Dune::Fem::Stencil< DomainSpace, RangeSpace >::rangeSpace ( ) const

inline

rows()

template<class DomainSpace , class RangeSpace >

int Dune::Fem::Stencil< DomainSpace, RangeSpace >::rows ( ) const

inline

setup()

template<class DomainSpace , class RangeSpace >

void Dune::Fem::Stencil< DomainSpace, RangeSpace >::setup ( )

inline

setupStencil()

template<class DomainSpace , class RangeSpace >

virtual void Dune::Fem::Stencil< DomainSpace, RangeSpace >::setupStencil ( ) const

protectedpure virtual

method to setup stencil depending on entity set defined in derived class

Implemented in Dune::Fem::DiagonalStencil< DomainSpace, RangeSpace, Partition >, and Dune::Fem::DiagonalAndNeighborStencil< DomainSpace, RangeSpace, Partition >.

update()

template<class DomainSpace , class RangeSpace >

void Dune::Fem::Stencil< DomainSpace, RangeSpace >::update ( )

inline

clear previously computed entries such that a re-compute happens when used again

Member Data Documentation

domainBlockMapper_

template<class DomainSpace , class RangeSpace >

const DomainBlockMapper& Dune::Fem::Stencil< DomainSpace, RangeSpace >::domainBlockMapper_

protected

domainSpace_

template<class DomainSpace , class RangeSpace >

const DomainSpace& Dune::Fem::Stencil< DomainSpace, RangeSpace >::domainSpace_

protected

globalStencil_

template<class DomainSpace , class RangeSpace >

GlobalStencilType Dune::Fem::Stencil< DomainSpace, RangeSpace >::globalStencil_

mutableprotected

indexIsSimple

template<class DomainSpace , class RangeSpace >

const bool Dune::Fem::Stencil< DomainSpace, RangeSpace >::indexIsSimple = std::is_convertible< RangeGlobalKeyType, IndexType >::value

static

rangeBlockMapper_

template<class DomainSpace , class RangeSpace >

const RangeBlockMapper& Dune::Fem::Stencil< DomainSpace, RangeSpace >::rangeBlockMapper_

protected

rangeSpace_

template<class DomainSpace , class RangeSpace >

const RangeSpace& Dune::Fem::Stencil< DomainSpace, RangeSpace >::rangeSpace_

protected

---

The documentation for this class was generated from the following file:

• stencil.hh
