interface for time evolution operators More...

#include <dune/fem/operator/common/spaceoperatorif.hh>

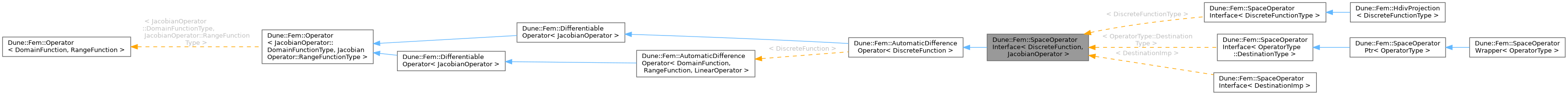

Inheritance diagram for Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >:

Public Types
typedef DiscreteFunction	DestinationType
	type of argument and destination

typedef DestinationType::DiscreteFunctionSpaceType	DiscreteFunctionSpaceType
	type of discrete function space

typedef DiscreteFunctionSpaceType	SpaceType
	convenience typedef for space type

typedef BaseType::RangeFunctionType	RangeFunctionType

typedef BaseType::DomainFunctionType	DomainFunctionType

typedef BaseType::RangeFieldType	RangeFieldType

typedef BaseType::DomainFieldType	DomainFieldType

typedef Dune::FieldTraits< RangeFieldType >::real_type	RealType

typedef BaseType::JacobianOperatorType	JacobianOperatorType

typedef RangeFunctionType::DiscreteFunctionSpaceType	RangeSpaceType

typedef DomainFunctionType::DiscreteFunctionSpaceType	DomainSpaceType

Public Member Functions
virtual	~SpaceOperatorInterface ()
	destructor

virtual const DiscreteFunctionSpaceType &	space () const =0
	return reference to space (needed by ode solvers)

virtual int	size () const
	return size of discrete function space, i.e. number of unknowns

virtual void	initializeTimeStepSize (const DestinationType &U0) const
	call operator once to calculate initial time step size

virtual bool	hasLimiter () const
	return true if limit method is implemented

virtual void	setTime (const double time)
	set time for operators

virtual double	timeStepEstimate () const
	estimate maximum time step

virtual void	limit (const DestinationType &arg, DestinationType &dest) const
	limiter application operator

virtual void	applyLimiter (DestinationType &U) const
	limiter application operator

virtual const DestinationType *	destination () const
	return reference to pass's local memory

virtual void	jacobian (const DomainFunctionType &u, JacobianOperatorType &jOp) const

virtual void	jacobian (const DomainFunctionType &u, JacobianOperatorType &jOp) const =0
	obtain linearization

virtual void	operator() (const DomainFunctionType &u, RangeFunctionType &w) const=0
	application operator

virtual void	finalize ()
	finalization of operator

virtual bool	nonlinear () const

Protected Attributes
std::unique_ptr< DestinationType >	uTmp_

Detailed Description

template<class DiscreteFunction, class JacobianOperator = Fem::AutomaticDifferenceOperator< DiscreteFunction >>
class Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >

interface for time evolution operators

The SpaceOperatorInterface defines an interface for operators \(L: X \longrightarrow X\) from a discrete function space \(X\) into itself. This interface is used to implement operators working with the ODE solvers.

Template Parameters

DiscreteFunction type of discretefunction modelling the elements of \(X\).

An interface class:

Member Typedef Documentation

◆ DestinationType

template<class DiscreteFunction , class JacobianOperator = Fem::AutomaticDifferenceOperator< DiscreteFunction >>

typedef DiscreteFunction Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >::DestinationType

type of argument and destination

◆ DiscreteFunctionSpaceType

template<class DiscreteFunction , class JacobianOperator = Fem::AutomaticDifferenceOperator< DiscreteFunction >>

typedef DestinationType::DiscreteFunctionSpaceType Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >::DiscreteFunctionSpaceType

type of discrete function space

◆ DomainFieldType

typedef BaseType::DomainFieldType Dune::Fem::AutomaticDifferenceOperator< DiscreteFunction , DiscreteFunction , AutomaticDifferenceLinearOperator< DiscreteFunction , DiscreteFunction > >::DomainFieldType

inherited

◆ DomainFunctionType

typedef BaseType::DomainFunctionType Dune::Fem::AutomaticDifferenceOperator< DiscreteFunction , DiscreteFunction , AutomaticDifferenceLinearOperator< DiscreteFunction , DiscreteFunction > >::DomainFunctionType

inherited

◆ DomainSpaceType

typedef DomainFunctionType::DiscreteFunctionSpaceType Dune::Fem::AutomaticDifferenceOperator< DiscreteFunction , DiscreteFunction , AutomaticDifferenceLinearOperator< DiscreteFunction , DiscreteFunction > >::DomainSpaceType

inherited

◆ JacobianOperatorType

typedef BaseType::JacobianOperatorType Dune::Fem::AutomaticDifferenceOperator< DiscreteFunction , DiscreteFunction , AutomaticDifferenceLinearOperator< DiscreteFunction , DiscreteFunction > >::JacobianOperatorType

inherited

◆ RangeFieldType

typedef BaseType::RangeFieldType Dune::Fem::AutomaticDifferenceOperator< DiscreteFunction , DiscreteFunction , AutomaticDifferenceLinearOperator< DiscreteFunction , DiscreteFunction > >::RangeFieldType

inherited

◆ RangeFunctionType

typedef BaseType::RangeFunctionType Dune::Fem::AutomaticDifferenceOperator< DiscreteFunction , DiscreteFunction , AutomaticDifferenceLinearOperator< DiscreteFunction , DiscreteFunction > >::RangeFunctionType

inherited

◆ RangeSpaceType

typedef RangeFunctionType::DiscreteFunctionSpaceType Dune::Fem::AutomaticDifferenceOperator< DiscreteFunction , DiscreteFunction , AutomaticDifferenceLinearOperator< DiscreteFunction , DiscreteFunction > >::RangeSpaceType

inherited

◆ RealType

typedef Dune::FieldTraits<RangeFieldType>::real_type Dune::Fem::AutomaticDifferenceOperator< DiscreteFunction , DiscreteFunction , AutomaticDifferenceLinearOperator< DiscreteFunction , DiscreteFunction > >::RealType

inherited

◆ SpaceType

template<class DiscreteFunction , class JacobianOperator = Fem::AutomaticDifferenceOperator< DiscreteFunction >>

typedef DiscreteFunctionSpaceType Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >::SpaceType

convenience typedef for space type

Constructor & Destructor Documentation

◆ ~SpaceOperatorInterface()

template<class DiscreteFunction , class JacobianOperator = Fem::AutomaticDifferenceOperator< DiscreteFunction >>

virtual Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >::~SpaceOperatorInterface ( )

inlinevirtual

destructor

Member Function Documentation

◆ applyLimiter()

template<class DiscreteFunction , class JacobianOperator = Fem::AutomaticDifferenceOperator< DiscreteFunction >>

virtual void Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >::applyLimiter ( DestinationType & U ) const

inlinevirtual

limiter application operator

Parameters

[in,out] U argument and destination to apply Limiter(u), needs internal copying

Note: : Default implementation is to do nothing (hasLimiter == false)

◆ destination()

template<class DiscreteFunction , class JacobianOperator = Fem::AutomaticDifferenceOperator< DiscreteFunction >>

virtual const DestinationType * Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >::destination ( ) const

inlinevirtual

return reference to pass's local memory

Reimplemented in Dune::Fem::SpaceOperatorPtr< OperatorType >.

◆ finalize()

virtual void Dune::Fem::Operator< JacobianOperator::DomainFunctionType , JacobianOperator::RangeFunctionType >::finalize ( )

inlinevirtualinherited

finalization of operator

Note: The default implementation is empty.

◆ hasLimiter()

template<class DiscreteFunction , class JacobianOperator = Fem::AutomaticDifferenceOperator< DiscreteFunction >>

virtual bool Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >::hasLimiter ( ) const

inlinevirtual

return true if limit method is implemented

Returns: true if limit is implemented

◆ initializeTimeStepSize()

template<class DiscreteFunction , class JacobianOperator >

void Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >::initializeTimeStepSize ( const DestinationType & U0 ) const

inlinevirtual

call operator once to calculate initial time step size

Parameters

U0	initial data to compute initial time step size

◆ jacobian() [1/2]

virtual void Dune::Fem::AutomaticDifferenceOperator< DiscreteFunction , DiscreteFunction , AutomaticDifferenceLinearOperator< DiscreteFunction , DiscreteFunction > >::jacobian	(	const DomainFunctionType &	u,
		JacobianOperatorType &	jOp
	)		const

inlinevirtualinherited

◆ jacobian() [2/2]

template<class JacobianOperator >

virtual void Dune::Fem::DifferentiableOperator< JacobianOperator >::jacobian	(	const DomainFunctionType &	u,
		JacobianOperatorType &	jOp
	)		const

pure virtualinherited

obtain linearization

Parameters

[in]	u	argument discrete function
[out]	jOp	destination Jacobian operator

Note: This method has to be implemented by all derived classes.

Implemented in Dune::Fem::DifferentiableGalerkinOperator< Integrands, JacobianOperator >, Dune::Fem::MassLumpingDifferentiableOperator< Integrands, MassIntegrands, JacobianOperator >, and Dune::Fem::MOLDifferentiableGalerkinOperator< Integrands, JacobianOperator >.

◆ limit()

template<class DiscreteFunction , class JacobianOperator = Fem::AutomaticDifferenceOperator< DiscreteFunction >>

virtual void Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >::limit	(	const DestinationType &	arg,
		DestinationType &	dest
	)		const

inlinevirtual

limiter application operator

Parameters

arg	argument, u
dest	destination, Limiter(u)

Note: : Default implementation is to copy arg into dest.

◆ nonlinear()

virtual bool Dune::Fem::Operator< JacobianOperator::DomainFunctionType , JacobianOperator::RangeFunctionType >::nonlinear ( ) const

inlinevirtualinherited

Return true if the Operator is nonlinear and false otherwise (default is true).

Reimplemented in DirichletWrapperOperator< Operator, Constraints >, Dune::Fem::DifferentiableGalerkinOperator< Integrands, JacobianOperator >, and Dune::Fem::DifferentiableGalerkinOperator< ModelIntegrands, LinearOperator >.

◆ operator()()

virtual void Dune::Fem::Operator< JacobianOperator::DomainFunctionType , JacobianOperator::RangeFunctionType >::operator()	(	const DomainFunctionType &	u,
		RangeFunctionType &	w
	)		const

pure virtualinherited

application operator

Parameters

[in]	u	argument discrete function
[out]	w	destination discrete function

Note: This method has to be implemented by all derived classes.

◆ setTime()

template<class DiscreteFunction , class JacobianOperator = Fem::AutomaticDifferenceOperator< DiscreteFunction >>

virtual void Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >::setTime ( const double time )

inlinevirtual

set time for operators

Parameters

time	current time of evaluation

Reimplemented in Dune::Fem::SpaceOperatorPtr< OperatorType >, and Dune::Fem::HdivProjection< DiscreteFunctionType >.

◆ size()

template<class DiscreteFunction , class JacobianOperator = Fem::AutomaticDifferenceOperator< DiscreteFunction >>

virtual int Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >::size ( ) const

inlinevirtual

return size of discrete function space, i.e. number of unknowns

◆ space()

template<class DiscreteFunction , class JacobianOperator = Fem::AutomaticDifferenceOperator< DiscreteFunction >>

virtual const DiscreteFunctionSpaceType & Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >::space ( ) const

pure virtual

return reference to space (needed by ode solvers)

Implemented in Dune::Fem::SpaceOperatorPtr< OperatorType >, and Dune::Fem::HdivProjection< DiscreteFunctionType >.

◆ timeStepEstimate()

template<class DiscreteFunction , class JacobianOperator = Fem::AutomaticDifferenceOperator< DiscreteFunction >>

virtual double Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >::timeStepEstimate ( ) const

inlinevirtual

estimate maximum time step

For an explicit time discretization, the time step has to be limited. An estimate for the maximum time step of an explicit Euler scheme is returned by this function. Maximum time steps for higher order Runge Kutta schemes can be derived from this value.

Reimplemented in Dune::Fem::SpaceOperatorPtr< OperatorType >, and Dune::Fem::HdivProjection< DiscreteFunctionType >.

Member Data Documentation

◆ uTmp_

template<class DiscreteFunction , class JacobianOperator = Fem::AutomaticDifferenceOperator< DiscreteFunction >>

std::unique_ptr< DestinationType > Dune::Fem::SpaceOperatorInterface< DiscreteFunction, JacobianOperator >::uTmp_

mutableprotected

The documentation for this class was generated from the following file:

spaceoperatorif.hh
