Dune::Fem::LocalMatrixWrapper< LocalMatrixStack > Class Template Reference

#include <dune/fem/operator/common/localmatrixwrapper.hh>

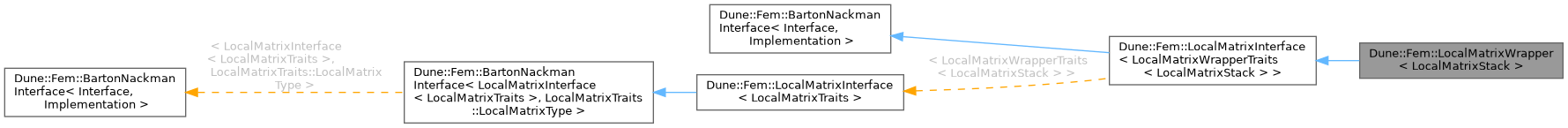

Inheritance diagram for Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >:
Inheritance graph

Public Types

typedef LocalMatrixStack LocalMatrixStackType
 type of the local matrix stack

typedef LocalMatrixWrapperTraits< LocalMatrixStackType > Traits
 type of the traits

typedef Traits::WrappedLocalMatrixType WrappedLocalMatrixType
 type of the wrapped local matrix

typedef Traits::RangeFieldType RangeFieldType

typedef BaseType::DomainSpaceType DomainSpaceType

typedef BaseType::RangeSpaceType RangeSpaceType

typedef BaseType::DomainBasisFunctionSetType DomainBasisFunctionSetType

typedef BaseType::RangeBasisFunctionSetType RangeBasisFunctionSetType

typedef BaseType::DomainEntityType DomainEntityType

typedef BaseType::RangeEntityType RangeEntityType

typedef ThisType LocalMatrixInterfaceType
 type of this interface

typedef Traits::LocalMatrixType LocalMatrixType
 type of local matrix implementation

typedef Traits::LittleBlockType LittleBlockType

typedef MatrixColumnObject< Traits > MatrixColumnType


Public Member Functions

 LocalMatrixWrapper (LocalMatrixStackType &stack)
 constructor creating an uninitialized local matrix

template<class DomainEntityType , class RangeEntityType >
 LocalMatrixWrapper (LocalMatrixStackType &stack, const DomainEntityType &domainEntity, const RangeEntityType &rangeEntity)
 constructor initializing the wrapped local matrix

 LocalMatrixWrapper (const ThisType &other)
 copy constructor

 ~LocalMatrixWrapper ()
 destructor

ThisType & operator= (const ThisType &)=delete

void init (const DomainEntityType &domainEntity, const RangeEntityType &rangeEntity)
 initialize the local matrix to entities

void add (int localRow, int localCol, const RangeFieldType &value)
 add value to matrix entry (row,col) where row and col are local row and local column

void set (int localRow, int localCol, const RangeFieldType &value)
 set value of matrix entry (row,col) where row and col are local row and local column

void clearRow (const int localRow)
 set row to zero values

void clearCol (const int localCol)
 set row to zero values

const RangeFieldType get (const int localRow, const int localCol) const
 get value of matrix entry (row,col) where row and col are local row and local column

void scale (const RangeFieldType &scalar)
 scale matrix with scalar value

void clear ()
 set all entries of local matrix to zero

void resort ()
 resort ordering in global matrix (if possible)

int rows () const
 get number of rows within the matrix

int columns () const
 get number of columns within the matrix

template<class DomainLocalFunctionImp , class RangeLocalFunctionImp >
void multiplyAdd (const DomainLocalFunctionImp &dLf, RangeLocalFunctionImp &rLf)
 multiply left hand side with local matrix and add to right hand side rhs += Matrix * lhs

const DomainSpaceType & domainSpace () const
 access to the domain space

const RangeSpaceType & rangeSpace () const
 access to the range space

const DomainEntityType & domainEntity () const

const RangeEntityType & rangeEntity () const

const DomainBasisFunctionSetType & domainBasisFunctionSet () const
 access to the base function set within the domain space

const RangeBasisFunctionSetType & rangeBasisFunctionSet () const
 access to the base function set within the range space

void bind (const DomainEntityType &domainEntity, const RangeEntityType &rangeEntity)
 initialize the local matrix to entities

void unbind ()
 clear local matrix from entities

void multiplyAdd (const DomainLocalFunctionType &lhs, RangeLocalFunctionType &rhs) const
 multiply left hand side with local matrix and add to right hand side rhs += Matrix * lhs

MatrixColumnType column (const unsigned int col)
 return column object for local matrix which contains axpy methods for convenience

void finalize ()
 finalize local matrix setup and possibly add values to real matrix


Protected Member Functions

const WrappedLocalMatrixType & localMatrix () const

WrappedLocalMatrixType & localMatrix ()

const Implementation & asImp () const

Implementation & asImp ()


Static Protected Member Functions

static const Implementation & asImp (const ThisType &other)

static Implementation & asImp (ThisType &other)

static const Implementation & asImp (const ThisType &other)

static Implementation & asImp (ThisType &other)


Member Typedef Documentation

◆ DomainBasisFunctionSetType

template<class LocalMatrixStack >
typedef BaseType::DomainBasisFunctionSetType Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::DomainBasisFunctionSetType

◆ DomainEntityType

template<class LocalMatrixStack >
typedef BaseType::DomainEntityType Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::DomainEntityType

◆ DomainSpaceType

template<class LocalMatrixStack >
typedef BaseType::DomainSpaceType Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::DomainSpaceType

◆ LittleBlockType

typedef Traits::LittleBlockType Dune::Fem::LocalMatrixInterface< LocalMatrixWrapperTraits< LocalMatrixStack > >::LittleBlockType
inherited

type of block (i.e. FieldMatrix for BlockMatrices

◆ LocalMatrixInterfaceType

typedef ThisType Dune::Fem::LocalMatrixInterface< LocalMatrixWrapperTraits< LocalMatrixStack > >::LocalMatrixInterfaceType
inherited

type of this interface

◆ LocalMatrixStackType

template<class LocalMatrixStack >
typedef LocalMatrixStack Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::LocalMatrixStackType

type of the local matrix stack

◆ LocalMatrixType

typedef Traits::LocalMatrixType Dune::Fem::LocalMatrixInterface< LocalMatrixWrapperTraits< LocalMatrixStack > >::LocalMatrixType
inherited

type of local matrix implementation

◆ MatrixColumnType

typedef MatrixColumnObject< Traits > Dune::Fem::LocalMatrixInterface< LocalMatrixWrapperTraits< LocalMatrixStack > >::MatrixColumnType
inherited

◆ RangeBasisFunctionSetType

template<class LocalMatrixStack >
typedef BaseType::RangeBasisFunctionSetType Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::RangeBasisFunctionSetType

◆ RangeEntityType

template<class LocalMatrixStack >
typedef BaseType::RangeEntityType Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::RangeEntityType

◆ RangeFieldType

template<class LocalMatrixStack >
typedef Traits::RangeFieldType Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::RangeFieldType

◆ RangeSpaceType

template<class LocalMatrixStack >
typedef BaseType::RangeSpaceType Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::RangeSpaceType

◆ Traits

template<class LocalMatrixStack >
typedef LocalMatrixWrapperTraits< LocalMatrixStackType > Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::Traits

type of the traits

◆ WrappedLocalMatrixType

template<class LocalMatrixStack >
typedef Traits::WrappedLocalMatrixType Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::WrappedLocalMatrixType

type of the wrapped local matrix

Constructor & Destructor Documentation

◆ LocalMatrixWrapper() [1/3]

template<class LocalMatrixStack >
Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::LocalMatrixWrapper ( LocalMatrixStackType &  stack)
inlineexplicit

constructor creating an uninitialized local matrix

◆ LocalMatrixWrapper() [2/3]

template<class LocalMatrixStack >
template<class DomainEntityType , class RangeEntityType >
Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::LocalMatrixWrapper ( LocalMatrixStackType &  stack,
const DomainEntityType &  domainEntity,
const RangeEntityType &  rangeEntity
)
inline

constructor initializing the wrapped local matrix

◆ LocalMatrixWrapper() [3/3]

template<class LocalMatrixStack >
Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::LocalMatrixWrapper ( const ThisType &  other)
inline

copy constructor

Parameters
[in]otherLocalMatrixWrapper to copy

◆ ~LocalMatrixWrapper()

template<class LocalMatrixStack >
Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::~LocalMatrixWrapper ( )
inline

destructor

Member Function Documentation

◆ add()

template<class LocalMatrixStack >
void Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::add ( int  localRow,
int  localCol,
const RangeFieldType &  value
)
inline

add value to matrix entry (row,col) where row and col are local row and local column

Parameters
[in]localRowlocal row
[in]localCollocal column
[in]valuevalue to add

◆ asImp() [1/6]

Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( )
inlineprotectedinherited

◆ asImp() [2/6]

const Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( ) const
inlineprotectedinherited

◆ asImp() [3/6]

template<class Interface , class Implementation >
static const Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( const ThisType &  other)
inlinestaticprotectedinherited

◆ asImp() [4/6]

static const Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( const ThisType &  other)
inlinestaticprotectedinherited

◆ asImp() [5/6]

template<class Interface , class Implementation >
static Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( ThisType &  other)
inlinestaticprotectedinherited

◆ asImp() [6/6]

static Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( ThisType &  other)
inlinestaticprotectedinherited

◆ bind()

void Dune::Fem::LocalMatrixInterface< LocalMatrixWrapperTraits< LocalMatrixStack > >::bind ( const DomainEntityType &  domainEntity,
const RangeEntityType &  rangeEntity
)
inlineinherited

initialize the local matrix to entities

Parameters
[in]domainEntityentity within grid of domain space,
[in]rangeEntityentity within grid of range space

◆ clear()

template<class LocalMatrixStack >
void Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::clear ( )
inline

set all entries of local matrix to zero

◆ clearCol()

template<class LocalMatrixStack >
void Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::clearCol ( const int  localCol)
inline

set row to zero values

Parameters
[in]localRowlocal row that is set to zero

◆ clearRow()

template<class LocalMatrixStack >
void Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::clearRow ( const int  localRow)
inline

set row to zero values

Parameters
[in]localRowlocal row that is set to zero

◆ column()

MatrixColumnType Dune::Fem::LocalMatrixInterface< LocalMatrixWrapperTraits< LocalMatrixStack > >::column ( const unsigned int  col)
inlineinherited

return column object for local matrix which contains axpy methods for convenience

Parameters
collocal column number
Returns
object of type MatrixColumnObject

◆ columns()

template<class LocalMatrixStack >
int Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::columns ( ) const
inline

get number of columns within the matrix

◆ domainBasisFunctionSet()

template<class LocalMatrixStack >
const DomainBasisFunctionSetType & Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::domainBasisFunctionSet ( ) const
inline

access to the base function set within the domain space

◆ domainEntity()

template<class LocalMatrixStack >
const DomainEntityType & Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::domainEntity ( ) const
inline

◆ domainSpace()

template<class LocalMatrixStack >
const DomainSpaceType & Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::domainSpace ( ) const
inline

access to the domain space

◆ finalize()

void Dune::Fem::LocalMatrixInterface< LocalMatrixWrapperTraits< LocalMatrixStack > >::finalize ( )
inlineinherited

finalize local matrix setup and possibly add values to real matrix

◆ get()

template<class LocalMatrixStack >
const RangeFieldType Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::get ( const int  localRow,
const int  localCol
) const
inline

get value of matrix entry (row,col) where row and col are local row and local column

Parameters
[in]localRowlocal row
[in]localCollocal column
Returns
value of matrix entry

◆ init()

template<class LocalMatrixStack >
void Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::init ( const DomainEntityType &  domainEntity,
const RangeEntityType &  rangeEntity
)
inline

initialize the local matrix to entities

Parameters
[in]domainEntityentity within grid of domain space,
[in]rangeEntityentity within grid of range space

◆ localMatrix() [1/2]

template<class LocalMatrixStack >
WrappedLocalMatrixType & Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::localMatrix ( )
inlineprotected

◆ localMatrix() [2/2]

template<class LocalMatrixStack >
const WrappedLocalMatrixType & Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::localMatrix ( ) const
inlineprotected

◆ multiplyAdd() [1/2]

template<class LocalMatrixStack >
template<class DomainLocalFunctionImp , class RangeLocalFunctionImp >
void Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::multiplyAdd ( const DomainLocalFunctionImp &  dLf,
RangeLocalFunctionImp &  rLf
)
inline

multiply left hand side with local matrix and add to right hand side rhs += Matrix * lhs

Parameters
[in]lhsleft hand side
[out]rhsright hand side

◆ multiplyAdd() [2/2]

void Dune::Fem::LocalMatrixInterface< LocalMatrixWrapperTraits< LocalMatrixStack > >::multiplyAdd ( const DomainLocalFunctionType &  lhs,
RangeLocalFunctionType &  rhs
) const
inlineinherited

multiply left hand side with local matrix and add to right hand side rhs += Matrix * lhs

Parameters
[in]lhsleft hand side
[out]rhsright hand side

◆ operator=()

template<class LocalMatrixStack >
ThisType & Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::operator= ( const ThisType &  )
delete

◆ rangeBasisFunctionSet()

template<class LocalMatrixStack >
const RangeBasisFunctionSetType & Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::rangeBasisFunctionSet ( ) const
inline

access to the base function set within the range space

◆ rangeEntity()

template<class LocalMatrixStack >
const RangeEntityType & Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::rangeEntity ( ) const
inline

◆ rangeSpace()

template<class LocalMatrixStack >
const RangeSpaceType & Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::rangeSpace ( ) const
inline

access to the range space

◆ resort()

template<class LocalMatrixStack >
void Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::resort ( )
inline

resort ordering in global matrix (if possible)

◆ rows()

template<class LocalMatrixStack >
int Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::rows ( ) const
inline

get number of rows within the matrix

◆ scale()

template<class LocalMatrixStack >
void Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::scale ( const RangeFieldType &  scalar)
inline

scale matrix with scalar value

Parameters
[in]scalarscalar value that scales the matrix

◆ set()

template<class LocalMatrixStack >
void Dune::Fem::LocalMatrixWrapper< LocalMatrixStack >::set ( int  localRow,
int  localCol,
const RangeFieldType &  value
)
inline

set value of matrix entry (row,col) where row and col are local row and local column

Parameters
[in]localRowlocal row
[in]localCollocal column
[in]valuevalue to set

◆ unbind()

void Dune::Fem::LocalMatrixInterface< LocalMatrixWrapperTraits< LocalMatrixStack > >::unbind ( )
inlineinherited

clear local matrix from entities

The documentation for this class was generated from the following file:
Legal Statements / Impressum   |  Hosted by TU Dresden & Uni Heidelberg  |  Generated by   doxygen 1.9.8
