Dune::Fem::DifferentiableOperator< JacobianOperator > Class Template Reference

abstract differentiable operator More...

#include <dune/fem/operator/common/differentiableoperator.hh>

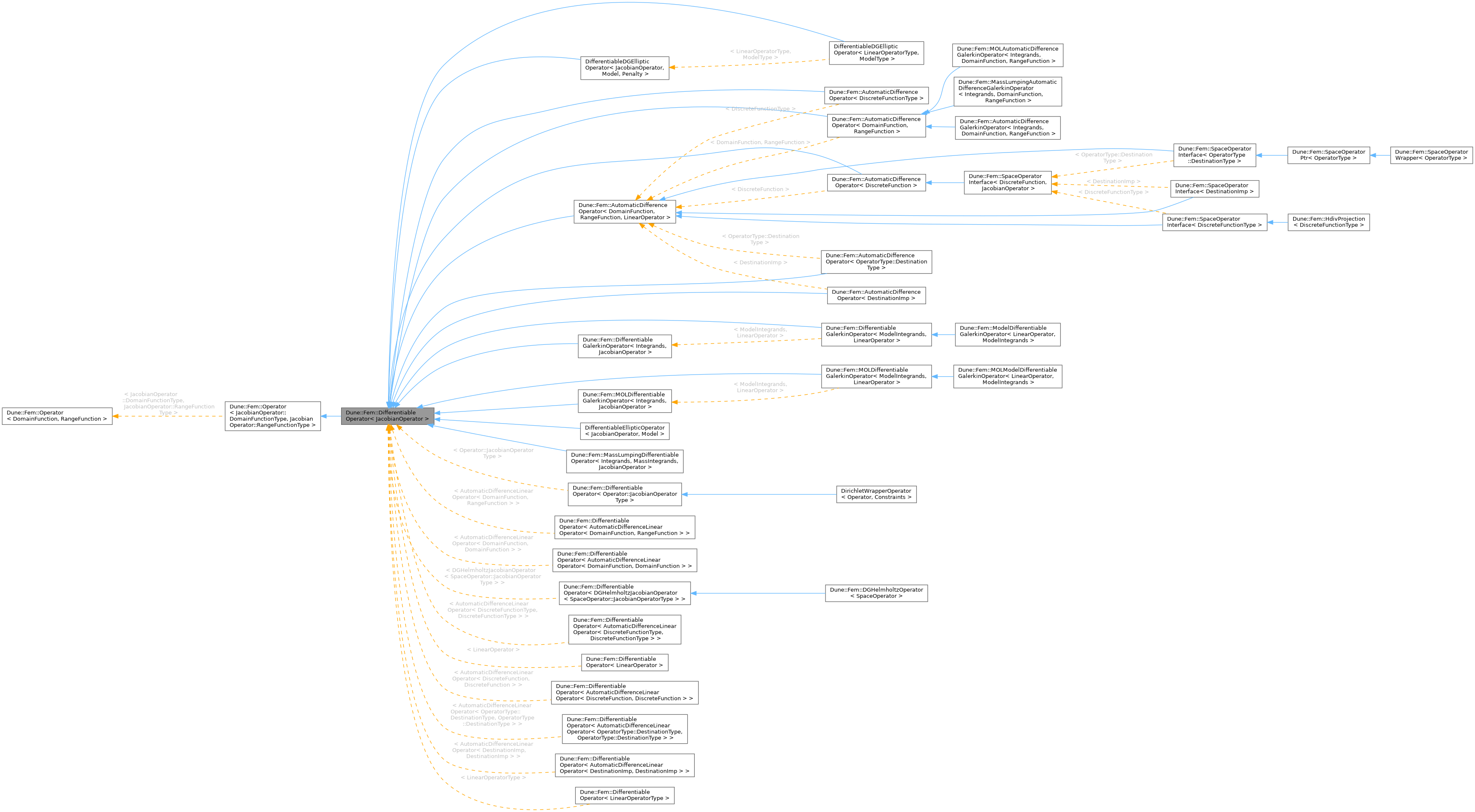

Inheritance diagram for Dune::Fem::DifferentiableOperator< JacobianOperator >:

Public Types
typedef JacobianOperator	JacobianOperatorType
	type of linear operator modelling the operator's Jacobian
typedef BaseType::DomainFunctionType	DomainFunctionType
	type of discrete function in the operator's domain
typedef BaseType::RangeFunctionType	RangeFunctionType
	type of discrete function in the operator's range
typedef DomainFunctionType::RangeFieldType	DomainFieldType
	field type of the operator's domain
typedef RangeFunctionType::RangeFieldType	RangeFieldType
	field type of the operator's range

Public Member Functions
virtual void	jacobian (const DomainFunctionType &u, JacobianOperatorType &jOp) const =0
	obtain linearization
virtual void	operator() (const DomainFunctionType &u, RangeFunctionType &w) const=0
	application operator
virtual void	finalize ()
	finalization of operator
virtual bool	nonlinear () const

Detailed Description

template<class JacobianOperator>
class Dune::Fem::DifferentiableOperator< JacobianOperator >

abstract differentiable operator

Differentiable operators are operators providing a linearization.

Template Parameters

JacobianOperator

type of linear operator describing the Jacobian (linearization) of this operator

Note

The types for the operator's domain and range function are derived from the JacobianOperator.

An interface class:

Member Typedef Documentation

DomainFieldType

template<class JacobianOperator >

typedef DomainFunctionType::RangeFieldType Dune::Fem::DifferentiableOperator< JacobianOperator >::DomainFieldType

field type of the operator's domain

DomainFunctionType

template<class JacobianOperator >

typedef BaseType::DomainFunctionType Dune::Fem::DifferentiableOperator< JacobianOperator >::DomainFunctionType

type of discrete function in the operator's domain

JacobianOperatorType

template<class JacobianOperator >

typedef JacobianOperator Dune::Fem::DifferentiableOperator< JacobianOperator >::JacobianOperatorType

type of linear operator modelling the operator's Jacobian

RangeFieldType

template<class JacobianOperator >

typedef RangeFunctionType::RangeFieldType Dune::Fem::DifferentiableOperator< JacobianOperator >::RangeFieldType

field type of the operator's range

RangeFunctionType

template<class JacobianOperator >

typedef BaseType::RangeFunctionType Dune::Fem::DifferentiableOperator< JacobianOperator >::RangeFunctionType

type of discrete function in the operator's range

Member Function Documentation

finalize()

virtual void Dune::Fem::Operator< JacobianOperator::DomainFunctionType , JacobianOperator::RangeFunctionType >::finalize ( )

inlinevirtualinherited

finalization of operator

Note

The default implementation is empty.

jacobian()

template<class JacobianOperator >

virtual void Dune::Fem::DifferentiableOperator< JacobianOperator >::jacobian ( const DomainFunctionType &  u, JacobianOperatorType &  jOp  ) const

pure virtual

obtain linearization

Parameters

[in]	u	argument discrete function
[out]	jOp	destination Jacobian operator

Note

This method has to be implemented by all derived classes.

Implemented in Dune::Fem::DifferentiableGalerkinOperator< Integrands, JacobianOperator >, Dune::Fem::MassLumpingDifferentiableOperator< Integrands, MassIntegrands, JacobianOperator >, and Dune::Fem::MOLDifferentiableGalerkinOperator< Integrands, JacobianOperator >.

nonlinear()

virtual bool Dune::Fem::Operator< JacobianOperator::DomainFunctionType , JacobianOperator::RangeFunctionType >::nonlinear ( ) const

inlinevirtualinherited

Return true if the Operator is nonlinear and false otherwise (default is true).

Reimplemented in DirichletWrapperOperator< Operator, Constraints >, Dune::Fem::DifferentiableGalerkinOperator< Integrands, JacobianOperator >, and Dune::Fem::DifferentiableGalerkinOperator< ModelIntegrands, LinearOperator >.

operator()()

virtual void Dune::Fem::Operator< JacobianOperator::DomainFunctionType , JacobianOperator::RangeFunctionType >::operator() ( const DomainFunctionType &  u, RangeFunctionType &  w  ) const

pure virtualinherited

application operator

Parameters

[in]	u	argument discrete function
[out]	w	destination discrete function

Note

This method has to be implemented by all derived classes.

---

The documentation for this class was generated from the following file:

• differentiableoperator.hh
