Public Types | Public Member Functions | Protected Types | Protected Member Functions | Protected Attributes | List of all members
Dune::Fem::GridFunctionView< GF, true > Struct Template Reference

#include <dune/fem/misc/gridfunctionview.hh>

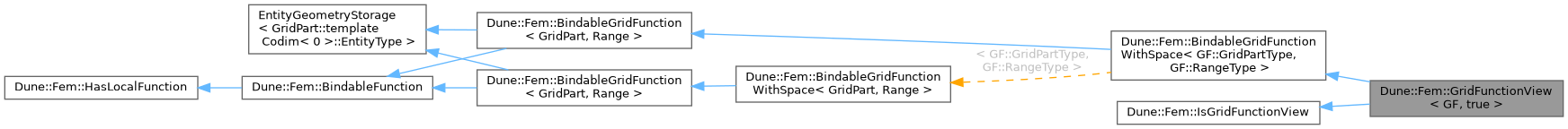

Inheritance diagram for Dune::Fem::GridFunctionView< GF, true >:
Inheritance graph

Public Types

using Base = BindableGridFunctionWithSpace< typename GF::GridPartType, typename GF::RangeType >

typedef GF::EntityType Entity

typedef GF::RangeType Value

typedef Entity::Geometry::LocalCoordinate LocalCoordinate

typedef GF::GridPartType GridPartType

typedef GridPart::template Codim< 0 >::EntityType EntityType

typedef EntityType::Geometry::GlobalCoordinate DomainType

typedef Dune::Fem::GridFunctionSpace< GridPartType, GF::RangeType > FunctionSpaceType

typedef FunctionSpaceType::RangeFieldType RangeFieldType

typedef FunctionSpaceType::RangeType RangeType

typedef FunctionSpaceType::JacobianRangeType JacobianRangeType

typedef FunctionSpaceType::HessianRangeType HessianRangeType

typedef DiscreteFunctionSpaceAdapter< FunctionSpaceType, GridPartType > DiscreteFunctionSpaceType

typedef EntityGeometryStorage< EntityType > BaseType

typedef GridPart::IntersectionType IntersectionType

typedef EntityType::Geometry Geometry

typedef Geometry::ctype ctype
 type of coordinate field

typedef std::decay_t< decltype(Dune::ReferenceElements< ctype, Geometry::coorddimension >::general(std::declval< const Dune::GeometryType & >())) > ReferenceElementType
 type of reference element


Public Member Functions

 GridFunctionView (const GF &gf)

Value operator() (const LocalCoordinate &x) const

void bind (const Entity &entity)

void unbind ()

template<class IntersectionType >
void bind (const IntersectionType &intersection, IntersectionSide side)

unsigned int order () const
 return the order of the space

const std::string & name () const

void bind (const EntityType &entity)
 set new entity object and geometry if enabled

bool continuous () const

template<class Point >
DomainType global (const Point &x) const

template<class Point >
void evaluate (const Point &x, RangeType &ret) const

template<class Quadrature , class RangeArray >
void evaluate (const Quadrature &quadrature, RangeArray &values) const

const GridPart & gridPart () const

const Entity & entity () const
 return entity

bool valid () const
 return true if entity pointer is set

const Geometry & geometry () const
 return geometry

Dune::GeometryType type () const
 return geometry type

const ReferenceElementType & referenceElement () const
 return reference element


Protected Types

typedef std::optional< EntityType > EntityStorageType

typedef std::conditional< storeGeometry, std::optional< Geometry >, Empty >::type GeometryStorageType


Protected Member Functions

void copyGeometry (const EntityGeometryStorageImpl &other)


Protected Attributes

const GridPart & gridPart_

EntityStorageType entity_

GeometryStorageType geometry_


Member Typedef Documentation

◆ Base

template<class GF >
using Dune::Fem::GridFunctionView< GF, true >::Base = BindableGridFunctionWithSpace<typename GF::GridPartType, typename GF::RangeType>

◆ BaseType

template<class GridPart , class Range >
typedef EntityGeometryStorage< EntityType > Dune::Fem::BindableGridFunction< GridPart, Range >::BaseType
inherited

◆ ctype

template<class Entity , bool storeGeometry = true>
typedef Geometry::ctype Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::ctype
inherited

type of coordinate field

◆ DiscreteFunctionSpaceType

typedef DiscreteFunctionSpaceAdapter< FunctionSpaceType, GridPartType > Dune::Fem::BindableGridFunctionWithSpace< GF::GridPartType , GF::RangeType >::DiscreteFunctionSpaceType
inherited

◆ DomainType

typedef EntityType::Geometry::GlobalCoordinate Dune::Fem::BindableGridFunctionWithSpace< GF::GridPartType , GF::RangeType >::DomainType
inherited

◆ Entity

template<class GF >
typedef GF::EntityType Dune::Fem::GridFunctionView< GF, true >::Entity

◆ EntityStorageType

template<class Entity , bool storeGeometry = true>
typedef std::optional< EntityType > Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::EntityStorageType
protectedinherited

◆ EntityType

typedef GridPart::template Codim<0>::EntityType Dune::Fem::BindableGridFunctionWithSpace< GF::GridPartType , GF::RangeType >::EntityType
inherited

◆ FunctionSpaceType

typedef Dune::Fem::GridFunctionSpace<GridPartType, GF::RangeType > Dune::Fem::BindableGridFunctionWithSpace< GF::GridPartType , GF::RangeType >::FunctionSpaceType
inherited

◆ Geometry

template<class GridPart , class Range >
typedef EntityType::Geometry Dune::Fem::BindableGridFunction< GridPart, Range >::Geometry
inherited

◆ GeometryStorageType

template<class Entity , bool storeGeometry = true>
typedef std::conditional<storeGeometry,std::optional<Geometry>,Empty>::type Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::GeometryStorageType
protectedinherited

◆ GridPartType

typedef GF::GridPartType Dune::Fem::BindableGridFunctionWithSpace< GF::GridPartType , GF::RangeType >::GridPartType
inherited

◆ HessianRangeType

typedef FunctionSpaceType::HessianRangeType Dune::Fem::BindableGridFunctionWithSpace< GF::GridPartType , GF::RangeType >::HessianRangeType
inherited

◆ IntersectionType

template<class GridPart , class Range >
typedef GridPart::IntersectionType Dune::Fem::BindableGridFunction< GridPart, Range >::IntersectionType
inherited

◆ JacobianRangeType

typedef FunctionSpaceType::JacobianRangeType Dune::Fem::BindableGridFunctionWithSpace< GF::GridPartType , GF::RangeType >::JacobianRangeType
inherited

◆ LocalCoordinate

template<class GF >
typedef Entity::Geometry::LocalCoordinate Dune::Fem::GridFunctionView< GF, true >::LocalCoordinate

◆ RangeFieldType

typedef FunctionSpaceType::RangeFieldType Dune::Fem::BindableGridFunctionWithSpace< GF::GridPartType , GF::RangeType >::RangeFieldType
inherited

◆ RangeType

typedef FunctionSpaceType::RangeType Dune::Fem::BindableGridFunctionWithSpace< GF::GridPartType , GF::RangeType >::RangeType
inherited

◆ ReferenceElementType

template<class Entity , bool storeGeometry = true>
typedef std::decay_t< decltype( Dune::ReferenceElements< ctype, Geometry::coorddimension >:: general( std::declval< const Dune::GeometryType & >() ) ) > Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::ReferenceElementType
inherited

type of reference element

◆ Value

template<class GF >
typedef GF::RangeType Dune::Fem::GridFunctionView< GF, true >::Value

Constructor & Destructor Documentation

◆ GridFunctionView()

template<class GF >
Dune::Fem::GridFunctionView< GF, true >::GridFunctionView ( const GF &  gf)
inline

Member Function Documentation

◆ bind() [1/3]

template<class GF >
void Dune::Fem::GridFunctionView< GF, true >::bind ( const Entity &  entity)
inline

◆ bind() [2/3]

template<class Entity , bool storeGeometry = true>
void Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::bind ( const EntityType &  entity)
inlineinherited

set new entity object and geometry if enabled

◆ bind() [3/3]

template<class GF >
template<class IntersectionType >
void Dune::Fem::GridFunctionView< GF, true >::bind ( const IntersectionType &  intersection,
IntersectionSide  side
)
inline

◆ continuous()

template<class GridPart , class Range >
bool Dune::Fem::BindableGridFunction< GridPart, Range >::continuous ( ) const
inlineinherited

◆ copyGeometry()

template<class Entity , bool storeGeometry = true>
void Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::copyGeometry ( const EntityGeometryStorageImpl< Entity, storeGeometry > &  other)
inlineprotectedinherited

◆ entity()

template<class Entity , bool storeGeometry = true>
const Entity & Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::entity ( ) const
inlineinherited

return entity

◆ evaluate() [1/2]

template<class GridPart , class Range >
template<class Point >
void Dune::Fem::BindableGridFunction< GridPart, Range >::evaluate ( const Point &  x,
RangeType &  ret
) const
inherited

◆ evaluate() [2/2]

template<class GridPart , class Range >
template<class Quadrature , class RangeArray >
void Dune::Fem::BindableGridFunction< GridPart, Range >::evaluate ( const Quadrature &  quadrature,
RangeArray &  values
) const
inlineinherited

◆ geometry()

template<class Entity , bool storeGeometry = true>
const Geometry & Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::geometry ( ) const
inlineinherited

return geometry

◆ global()

template<class GridPart , class Range >
template<class Point >
DomainType Dune::Fem::BindableGridFunction< GridPart, Range >::global ( const Point &  x) const
inlineinherited

◆ gridPart()

template<class GridPart , class Range >
const GridPart & Dune::Fem::BindableGridFunction< GridPart, Range >::gridPart ( ) const
inlineinherited

◆ name()

const std::string & Dune::Fem::BindableGridFunctionWithSpace< GF::GridPartType , GF::RangeType >::name ( ) const
inlineinherited

◆ operator()()

template<class GF >
Value Dune::Fem::GridFunctionView< GF, true >::operator() ( const LocalCoordinate &  x) const
inline

◆ order()

unsigned int Dune::Fem::BindableGridFunctionWithSpace< GF::GridPartType , GF::RangeType >::order ( ) const
inlineinherited

return the order of the space

◆ referenceElement()

template<class Entity , bool storeGeometry = true>
const ReferenceElementType & Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::referenceElement ( ) const
inlineinherited

return reference element

◆ type()

template<class Entity , bool storeGeometry = true>
Dune::GeometryType Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::type ( ) const
inlineinherited

return geometry type

◆ unbind()

template<class GF >
void Dune::Fem::GridFunctionView< GF, true >::unbind ( )
inline

◆ valid()

template<class Entity , bool storeGeometry = true>
bool Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::valid ( ) const
inlineinherited

return true if entity pointer is set

Member Data Documentation

◆ entity_

template<class Entity , bool storeGeometry = true>
EntityStorageType Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::entity_
protectedinherited

◆ geometry_

template<class Entity , bool storeGeometry = true>
GeometryStorageType Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::geometry_
protectedinherited

◆ gridPart_

template<class GridPart , class Range >
const GridPart& Dune::Fem::BindableGridFunction< GridPart, Range >::gridPart_
protectedinherited
The documentation for this struct was generated from the following file:
