Dune::Fem::IOInterface Class Reference

IOInterface to write data to hard disk. More...

#include <dune/fem/io/file/iointerface.hh>

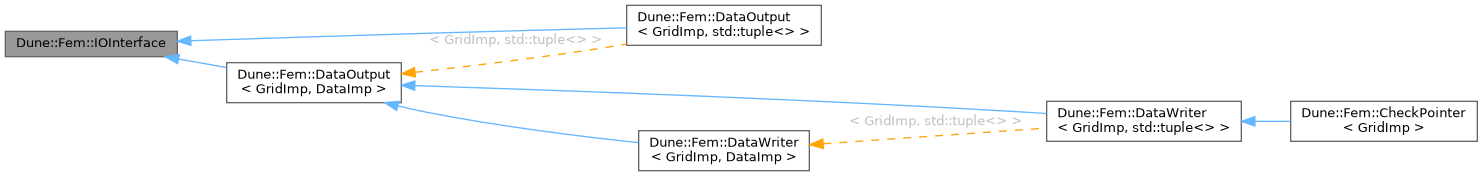

Inheritance diagram for Dune::Fem::IOInterface:

Public Member Functions
virtual	~IOInterface ()
	destructor
virtual void	writeData (double sequenceStamp) const =0
	write data with a given sequence stamp
virtual void	write (const TimeProviderBase &tp) const =0
	write given data to disc, evaluates parameter savecount and savestep
virtual void	write () const =0
	write given data to disc, evaluates parameter savecount

Static Public Member Functions
static std::string	defaultGridKey (int dimension, bool check=true)
	return FEM key for macro grid reading
static std::string	defaultGridKey (int dimension, const ParameterReader &parameter, bool check=true)
static std::string	defaultGridKey (std::string base, int dimension, bool check=true)
static std::string	defaultGridKey (std::string base, int dimension, const ParameterReader &parameter, bool check=true)
	return FEM key for macro grid reading
static void	createPath (const std::string &path)
	create given path in combination with rank
static std::string	createPathName (const std::string &pathPref, int rank)
	create given path in combination with rank
static std::string	readPath ()
template<class CommunicatorType >
static void	createGlobalPath (const CommunicatorType &comm, const std::string &path)
	create global path for data output
static std::string	copyPathToFilename (const std::string &path)
template<class CommunicatorType >
static std::string	createPath (const CommunicatorType &comm, const std::string &pathPrefix, const std::string &dataPrefix, const int step, const bool alsoCreateRankPath=true)
static std::string	createRecoverPath (const std::string &pathPrefix, const int rank, const std::string &dataPrefix, const int step, const bool alsoUseRankPath=true)

Protected Member Functions
	IOInterface ()
	default constructor

Detailed Description

IOInterface to write data to hard disk.

An interface class:

Constructor & Destructor Documentation

IOInterface()

Dune::Fem::IOInterface::IOInterface ( )

inlineprotected

default constructor

~IOInterface()

virtual Dune::Fem::IOInterface::~IOInterface ( )

inlinevirtual

destructor

Member Function Documentation

copyPathToFilename()

static std::string Dune::Fem::IOInterface::copyPathToFilename ( const std::string &  path )

inlinestatic

createGlobalPath()

template<class CommunicatorType >

static void Dune::Fem::IOInterface::createGlobalPath ( const CommunicatorType &  comm, const std::string &  path  )

inlinestatic

create global path for data output

createPath() [1/2]

template<class CommunicatorType >

static std::string Dune::Fem::IOInterface::createPath ( const CommunicatorType &  comm, const std::string &  pathPrefix, const std::string &  dataPrefix, const int  step, const bool  alsoCreateRankPath = true  )

inlinestatic

createPath() [2/2]

static void Dune::Fem::IOInterface::createPath ( const std::string &  path )

inlinestatic

create given path in combination with rank

createPathName()

static std::string Dune::Fem::IOInterface::createPathName ( const std::string &  pathPref, int  rank  )

inlinestatic

create given path in combination with rank

createRecoverPath()

static std::string Dune::Fem::IOInterface::createRecoverPath ( const std::string &  pathPrefix, const int  rank, const std::string &  dataPrefix, const int  step, const bool  alsoUseRankPath = true  )

inlinestatic

defaultGridKey() [1/4]

static std::string Dune::Fem::IOInterface::defaultGridKey ( int  dimension, bool  check = true  )

inlinestatic

return FEM key for macro grid reading

defaultGridKey() [2/4]

static std::string Dune::Fem::IOInterface::defaultGridKey ( int  dimension, const ParameterReader &  parameter, bool  check = true  )

inlinestatic

defaultGridKey() [3/4]

static std::string Dune::Fem::IOInterface::defaultGridKey ( std::string  base, int  dimension, bool  check = true  )

inlinestatic

defaultGridKey() [4/4]

static std::string Dune::Fem::IOInterface::defaultGridKey ( std::string  base, int  dimension, const ParameterReader &  parameter, bool  check = true  )

inlinestatic

return FEM key for macro grid reading

readPath()

static std::string Dune::Fem::IOInterface::readPath ( )

inlinestatic

standard path reading and creation method rank is added to output path

write() [1/2]

virtual void Dune::Fem::IOInterface::write ( ) const

pure virtual

write given data to disc, evaluates parameter savecount

Implemented in Dune::Fem::DataOutput< GridImp, DataImp >, and Dune::Fem::DataOutput< GridImp, std::tuple<> >.

write() [2/2]

virtual void Dune::Fem::IOInterface::write ( const TimeProviderBase &  tp ) const

pure virtual

write given data to disc, evaluates parameter savecount and savestep

Parameters

tp	time provider for time and step

Implemented in Dune::Fem::DataOutput< GridImp, DataImp >, and Dune::Fem::DataOutput< GridImp, std::tuple<> >.

writeData()

virtual void Dune::Fem::IOInterface::writeData ( double  sequenceStamp ) const

pure virtual

write data with a given sequence stamp

Parameters

sequenceStamp

stamp for the data set

Implemented in Dune::Fem::DataOutput< GridImp, DataImp >, and Dune::Fem::DataOutput< GridImp, std::tuple<> >.

---

The documentation for this class was generated from the following file:

• iointerface.hh
