Implementation of the IOInterface. This class manages checkpointing. More...

#include <dune/fem/io/file/datawriter.hh>

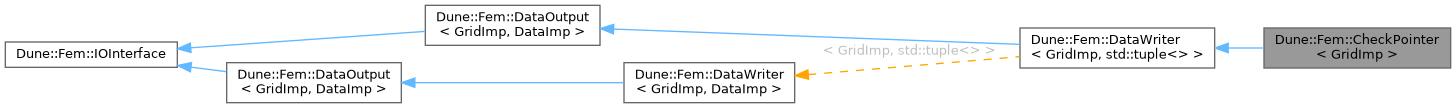

Inheritance diagram for Dune::Fem::CheckPointer< GridImp >:

Classes
struct	GridPersistentObject
	call appropriate backup and restore methods on the grid class More...

Public Types
enum	OutputFormat { vtk = 0 , vtkvtx = 1 , subvtk = 2 , binary = 3 , gnuplot = 4 , none = 5 }

Public Member Functions
	CheckPointer (const GridType &grid, const CheckPointerParameters &parameter=CheckPointerParameters())
	Constructor generating a checkpointer.

	CheckPointer (const GridType &grid, const TimeProviderBase &tp, const CheckPointerParameters &parameter=CheckPointerParameters())
	Constructor generating a checkpointer.

virtual const char *	myClassName () const
	print class name

bool	willWrite (const TimeProviderBase &tp) const
	returns true if data will be written on next write call

virtual void	writeBinaryData (const double time) const
	write binary data

void	consistentSaveStep (const TimeProviderBase &tp) const

virtual bool	willWrite () const
	returns true if data will be written on next write call

void	write (const std::string &outstring) const
	write given data to disc, evaluates parameter savecount

void	write () const
	write given data to disc, evaluates parameter savecount

void	write (const TimeProviderBase &tp, const std::string &outstring) const
	write given data to disc, evaluates parameter savecount and savestep

void	write (const TimeProviderBase &tp) const
	write given data to disc, evaluates parameter savecount and savestep

void	writeData (double sequenceStamp, const std::string &outstring) const
	write data with a given sequence stamp and outstring

void	writeData (double sequenceStamp) const
	write data with a given sequence stamp

const std::string &	path () const
	return output path name

int	writeStep () const
	return write step

int	writeCalls () const
	return write calls

double	saveTime () const
	return save time

Static Public Member Functions
static GridType *	restoreGrid (const std::string checkFile, const int givenRank=-1, const CheckPointerParameters &parameter=CheckPointerParameters())
	restore grid from previous runs

static void	restoreData (const GridType &grid, const std::string checkFile, const int rank=-1)
	restores data, assumes that all objects have been created and inserted to PersistenceManager before this method is called

static void	writeSingleCheckPoint (const GridType &grid, const double time, const bool storePersistenceManager, const int writeStep=0)

static std::string	defaultGridKey (int dimension, bool check=true)
	return FEM key for macro grid reading

static std::string	defaultGridKey (int dimension, const ParameterReader &parameter, bool check=true)

static std::string	defaultGridKey (std::string base, int dimension, bool check=true)

static std::string	defaultGridKey (std::string base, int dimension, const ParameterReader &parameter, bool check=true)
	return FEM key for macro grid reading

static void	createPath (const std::string &path)
	create given path in combination with rank

template<class CommunicatorType >
static std::string	createPath (const CommunicatorType &comm, const std::string &pathPrefix, const std::string &dataPrefix, const int step, const bool alsoCreateRankPath=true)

static std::string	createPathName (const std::string &pathPref, int rank)
	create given path in combination with rank

static std::string	readPath ()

template<class CommunicatorType >
static void	createGlobalPath (const CommunicatorType &comm, const std::string &path)
	create global path for data output

static std::string	copyPathToFilename (const std::string &path)

static std::string	createRecoverPath (const std::string &pathPrefix, const int rank, const std::string &dataPrefix, const int step, const bool alsoUseRankPath=true)

Protected Types
typedef GridImp	GridType
	used grid type

typedef DofManager< GridType >	DofManagerType

typedef DataWriter< GridImp, DataImp >	BaseType
	type of base class

typedef CheckPointer< GridImp >	ThisType
	type of this class

typedef DataImp	OutPutDataType
	used data tuple

typedef GridPersistentObject	PersistentGridObjectType

Protected Member Functions
void	initialize (const CheckPointerParameters &parameter)

	CheckPointer (const GridType &grid, const int myRank, const char *checkFile, const bool takeCareOfPersistenceManager=true, const int writeStep=0)
	Constructor generating a checkpointer to restore data.

std::string	restorePersistentData ()
	restores data, assumes that all objects have been created before this method is called

template<class InputTuple >
void	restoreUserData (InputTuple &data)

void	restoreData ()

bool	readCheckPoint (const bool warn=true)
	read checkpoint file

void	writeCheckPoint (const std::string &path, const double time, const int savestep) const

std::string	writeMyBinaryData (const double sequenceStamp, const int step, OutputTuple &data) const

auto	getGridPart () const

auto	getGridPart (std::integral_constant< bool, false >) const

auto	getGridPart (std::integral_constant< bool, true >) const

std::string	writeGnuPlotOutput () const

virtual void	display () const
	display data with grape

template<class OutputTupleType >
void	grapeDisplay (OutputTupleType &data) const
	display data with grape

Protected Attributes
OutPutDataType	fakeData_

std::unique_ptr< PersistentGridObjectType >	persistentGridObject_

OutPutDataType *	dataPtr_

const int	checkPointStep_

const int	maxCheckPointNumber_

int	myRank_

std::string	checkPointFile_

bool	takeCareOfPersistenceManager_

std::stringstream	macroGrid_

const bool	separateRankPath_

const GridType &	grid_
	type of this class

OutPutDataType	data_

std::string	path_

std::string	datapref_

bool	grapeDisplay_

int	writeStep_

int	writeCalls_

double	saveTime_

double	saveStep_

int	saveCount_

OutputFormat	outputFormat_

bool	conformingOutput_

std::unique_ptr< FileWriter >	sequence_

std::unique_ptr< PVDWriter >	pvd_

std::unique_ptr< const DataOutputParameters >	param_

Detailed Description

template<class GridImp>
class Dune::Fem::CheckPointer< GridImp >

Implementation of the IOInterface. This class manages checkpointing.

All data that was registered to PersistenceManager will be stored in binary output format. The derivation from DataWriter is simply to use the writeStep method. The binary output of DataWriter is not used anymore and does not work for checkpointing.

Member Typedef Documentation

◆ BaseType

template<class GridImp >

typedef DataWriter<GridImp,DataImp> Dune::Fem::CheckPointer< GridImp >::BaseType

protected

type of base class

◆ DofManagerType

template<class GridImp >

typedef DofManager< GridType > Dune::Fem::CheckPointer< GridImp >::DofManagerType

protected

◆ GridType

template<class GridImp >

typedef GridImp Dune::Fem::CheckPointer< GridImp >::GridType

protected

used grid type

◆ OutPutDataType

template<class GridImp >

typedef DataImp Dune::Fem::CheckPointer< GridImp >::OutPutDataType

protected

used data tuple

◆ PersistentGridObjectType

template<class GridImp >

typedef GridPersistentObject Dune::Fem::CheckPointer< GridImp >::PersistentGridObjectType

protected

◆ ThisType

template<class GridImp >

typedef CheckPointer< GridImp > Dune::Fem::CheckPointer< GridImp >::ThisType

protected

type of this class

Member Enumeration Documentation

◆ OutputFormat

template<class GridImp , class DataImp >

enum Dune::Fem::DataOutput::OutputFormat

inherited

Enumerator
vtk
vtkvtx
subvtk
binary
gnuplot
none

Constructor & Destructor Documentation

◆ CheckPointer() [1/3]

template<class GridImp >

Dune::Fem::CheckPointer< GridImp >::CheckPointer	(	const GridType &	grid,
		const CheckPointerParameters &	parameter = `CheckPointerParameters()`
	)

inline

Constructor generating a checkpointer.

Parameters

grid	corresponding grid
parameter	structure for tuning the behavior of the Dune::CheckPointer defaults to Dune::CheckPointerParameters

◆ CheckPointer() [2/3]

template<class GridImp >

Dune::Fem::CheckPointer< GridImp >::CheckPointer	(	const GridType &	grid,
		const TimeProviderBase &	tp,
		const CheckPointerParameters &	parameter = `CheckPointerParameters()`
	)

inline

Constructor generating a checkpointer.

Parameters

grid	corresponding grid
data	Tuple containing discrete functions to write
tp	a time provider to set time (e.g. for restart)
parameter	structure for tuning the behavior of the Dune::CheckPointer defaults to Dune::CheckPointerParameters

◆ CheckPointer() [3/3]

template<class GridImp >

Dune::Fem::CheckPointer< GridImp >::CheckPointer	(	const GridType &	grid,
		const int	myRank,
		const char *	checkFile,
		const bool	takeCareOfPersistenceManager = `true`,
		const int	writeStep = `0`
	)

inlineprotected

Constructor generating a checkpointer to restore data.

Parameters

grid	corresponding grid
myRank	rank of process
data	Tuple containing discrete functions to write
checkFile	filename for restoring state of program from previous runs
takeCareOfPersistenceManager	flag whether to keep persistent values by PersistenceManager (default true)
writeStep	initial counter value, default 0

Note: In Addition to the parameters read by the DataWriter this class reads the following parameters:

write checkpoint every ‘CheckPointStep’ time step

fem.io.checkpointstep: 500

store checkpoint information to file ‘CheckPointFile’

fem.io.checkpointfile: checkpoint

Member Function Documentation

◆ consistentSaveStep()

template<class GridImp , class DataImp >

void Dune::Fem::DataOutput< GridImp, DataImp >::consistentSaveStep ( const TimeProviderBase & tp ) const

inlineinherited

◆ copyPathToFilename()

static std::string Dune::Fem::IOInterface::copyPathToFilename ( const std::string & path )

inlinestaticinherited

◆ createGlobalPath()

template<class CommunicatorType >

static void Dune::Fem::IOInterface::createGlobalPath	(	const CommunicatorType &	comm,
		const std::string &	path
	)

inlinestaticinherited

create global path for data output

◆ createPath() [1/2]

template<class CommunicatorType >

static std::string Dune::Fem::IOInterface::createPath	(	const CommunicatorType &	comm,
		const std::string &	pathPrefix,
		const std::string &	dataPrefix,
		const int	step,
		const bool	alsoCreateRankPath = `true`
	)

inlinestaticinherited

◆ createPath() [2/2]

static void Dune::Fem::IOInterface::createPath ( const std::string & path )

inlinestaticinherited

create given path in combination with rank

◆ createPathName()

static std::string Dune::Fem::IOInterface::createPathName	(	const std::string &	pathPref,
		int	rank
	)

inlinestaticinherited

create given path in combination with rank

◆ createRecoverPath()

static std::string Dune::Fem::IOInterface::createRecoverPath	(	const std::string &	pathPrefix,
		const int	rank,
		const std::string &	dataPrefix,
		const int	step,
		const bool	alsoUseRankPath = `true`
	)

inlinestaticinherited

◆ defaultGridKey() [1/4]

static std::string Dune::Fem::IOInterface::defaultGridKey	(	int	dimension,
		bool	check = `true`
	)

inlinestaticinherited

return FEM key for macro grid reading

◆ defaultGridKey() [2/4]

static std::string Dune::Fem::IOInterface::defaultGridKey	(	int	dimension,
		const ParameterReader &	parameter,
		bool	check = `true`
	)

inlinestaticinherited

◆ defaultGridKey() [3/4]

static std::string Dune::Fem::IOInterface::defaultGridKey	(	std::string	base,
		int	dimension,
		bool	check = `true`
	)

inlinestaticinherited

◆ defaultGridKey() [4/4]

static std::string Dune::Fem::IOInterface::defaultGridKey	(	std::string	base,
		int	dimension,
		const ParameterReader &	parameter,
		bool	check = `true`
	)

inlinestaticinherited

return FEM key for macro grid reading

◆ display()

template<class GridImp , class DataImp >

virtual void Dune::Fem::DataOutput< GridImp, DataImp >::display ( ) const

inlineprotectedvirtualinherited

display data with grape

◆ getGridPart() [1/3]

template<class GridImp , class DataImp >

auto Dune::Fem::DataOutput< GridImp, DataImp >::getGridPart ( ) const

inlineprotectedinherited

◆ getGridPart() [2/3]

template<class GridImp , class DataImp >

auto Dune::Fem::DataOutput< GridImp, DataImp >::getGridPart ( std::integral_constant< bool, false > ) const

inlineprotectedinherited

◆ getGridPart() [3/3]

template<class GridImp , class DataImp >

auto Dune::Fem::DataOutput< GridImp, DataImp >::getGridPart ( std::integral_constant< bool, true > ) const

inlineprotectedinherited

◆ grapeDisplay()

template<class GridImp , class DataImp >

template<class OutputTupleType >

void Dune::Fem::DataOutput< GridImp, DataImp >::grapeDisplay ( OutputTupleType & data ) const

inlineprotectedinherited

display data with grape

◆ initialize()

template<class GridImp >

void Dune::Fem::CheckPointer< GridImp >::initialize ( const CheckPointerParameters & parameter )

inlineprotected

◆ myClassName()

template<class GridImp >

virtual const char * Dune::Fem::CheckPointer< GridImp >::myClassName ( ) const

inlinevirtual

print class name

Reimplemented from Dune::Fem::DataWriter< GridImp, std::tuple<> >.

◆ path()

template<class GridImp , class DataImp >

const std::string & Dune::Fem::DataOutput< GridImp, DataImp >::path ( ) const

inlineinherited

return output path name

◆ readCheckPoint()

template<class GridImp >

bool Dune::Fem::CheckPointer< GridImp >::readCheckPoint ( const bool warn = true )

inlineprotected

read checkpoint file

◆ readPath()

static std::string Dune::Fem::IOInterface::readPath ( )

inlinestaticinherited

standard path reading and creation method rank is added to output path

◆ restoreData() [1/2]

template<class GridImp >

void Dune::Fem::CheckPointer< GridImp >::restoreData ( )

inlineprotected

◆ restoreData() [2/2]

template<class GridImp >

static void Dune::Fem::CheckPointer< GridImp >::restoreData	(	const GridType &	grid,
		const std::string	checkFile,
		const int	rank = `-1`
	)

inlinestatic

restores data, assumes that all objects have been created and inserted to PersistenceManager before this method is called

Parameters

grid	Grid the data belong to
checkFile	check point file

◆ restoreGrid()

template<class GridImp >

static GridType * Dune::Fem::CheckPointer< GridImp >::restoreGrid	(	const std::string	checkFile,
		const int	givenRank = `-1`,
		const CheckPointerParameters &	parameter = `CheckPointerParameters()`
	)

inlinestatic

restore grid from previous runs

Parameters

[in]	checkFile	checkPoint filename
[in]	givenRank	number of my process (defaults to MPIManager :: rank() )
[in]	parameter	Parameterclass which provides informations about the checkpoint

Returns: Pointer to restored grid instance

◆ restorePersistentData()

template<class GridImp >

std::string Dune::Fem::CheckPointer< GridImp >::restorePersistentData ( )

inlineprotected

restores data, assumes that all objects have been created before this method is called

◆ restoreUserData()

template<class GridImp >

template<class InputTuple >

void Dune::Fem::CheckPointer< GridImp >::restoreUserData ( InputTuple & data )

inlineprotected

◆ saveTime()

template<class GridImp , class DataImp >

double Dune::Fem::DataOutput< GridImp, DataImp >::saveTime ( ) const

inlineinherited

return save time

◆ willWrite() [1/2]

template<class GridImp , class DataImp >

virtual bool Dune::Fem::DataOutput< GridImp, DataImp >::willWrite ( ) const

inlinevirtualinherited

returns true if data will be written on next write call

◆ willWrite() [2/2]

template<class GridImp >

bool Dune::Fem::CheckPointer< GridImp >::willWrite ( const TimeProviderBase & tp ) const

inlinevirtual

returns true if data will be written on next write call

Reimplemented from Dune::Fem::DataOutput< GridImp, DataImp >.

◆ write() [1/4]

template<class GridImp , class DataImp >

void Dune::Fem::DataOutput< GridImp, DataImp >::write ( ) const

inlinevirtualinherited

write given data to disc, evaluates parameter savecount

Implements Dune::Fem::IOInterface.

◆ write() [2/4]

template<class GridImp , class DataImp >

void Dune::Fem::DataOutput< GridImp, DataImp >::write ( const std::string & outstring ) const

inlineinherited

write given data to disc, evaluates parameter savecount

Parameters

outstring pass additional string for naming

◆ write() [3/4]

template<class GridImp , class DataImp >

void Dune::Fem::DataOutput< GridImp, DataImp >::write ( const TimeProviderBase & tp ) const

inlinevirtualinherited

write given data to disc, evaluates parameter savecount and savestep

Parameters

tp	time provider for time and step

Implements Dune::Fem::IOInterface.

◆ write() [4/4]

template<class GridImp , class DataImp >

void Dune::Fem::DataOutput< GridImp, DataImp >::write	(	const TimeProviderBase &	tp,
		const std::string &	outstring
	)		const

inlineinherited

write given data to disc, evaluates parameter savecount and savestep

Parameters

tp	time provider for time and step
outstring	pass additional string for naming

◆ writeBinaryData()

template<class GridImp >

virtual void Dune::Fem::CheckPointer< GridImp >::writeBinaryData ( const double sequenceStamp ) const

inlinevirtual

write binary data

Reimplemented from Dune::Fem::DataWriter< GridImp, std::tuple<> >.

◆ writeCalls()

template<class GridImp , class DataImp >

int Dune::Fem::DataOutput< GridImp, DataImp >::writeCalls ( ) const

inlineinherited

return write calls

◆ writeCheckPoint()

template<class GridImp >

void Dune::Fem::CheckPointer< GridImp >::writeCheckPoint	(	const std::string &	path,
		const double	time,
		const int	savestep
	)		const

inlineprotected

◆ writeData() [1/2]

template<class GridImp , class DataImp >

void Dune::Fem::DataOutput< GridImp, DataImp >::writeData ( double sequenceStamp ) const

inlinevirtualinherited

write data with a given sequence stamp

Parameters

sequenceStamp stamp for the data set

Implements Dune::Fem::IOInterface.

◆ writeData() [2/2]

template<class GridImp , class DataImp >

void Dune::Fem::DataOutput< GridImp, DataImp >::writeData	(	double	sequenceStamp,
		const std::string &	outstring
	)		const

inlineinherited

write data with a given sequence stamp and outstring

Parameters

sequenceStamp	stamp for the data set
outstring	pass additional string for naming

◆ writeGnuPlotOutput()

template<class GridImp , class DataImp >

std::string Dune::Fem::DataOutput< GridImp, DataImp >::writeGnuPlotOutput ( ) const

inlineprotectedinherited

◆ writeMyBinaryData()

std::string Dune::Fem::DataWriter< GridImp, std::tuple<> >::writeMyBinaryData	(	const double	sequenceStamp,
		const int	step,
		OutputTuple &	data
	)		const

inlineprotectedinherited

◆ writeSingleCheckPoint()

template<class GridImp >

static void Dune::Fem::CheckPointer< GridImp >::writeSingleCheckPoint	(	const GridType &	grid,
		const double	time,
		const bool	storePersistenceManager,
		const int	writeStep = `0`
	)

inlinestatic

◆ writeStep()

template<class GridImp , class DataImp >

int Dune::Fem::DataOutput< GridImp, DataImp >::writeStep ( ) const

inlineinherited

return write step

Member Data Documentation

◆ checkPointFile_

template<class GridImp >

std::string Dune::Fem::CheckPointer< GridImp >::checkPointFile_

protected

◆ checkPointStep_

template<class GridImp >

const int Dune::Fem::CheckPointer< GridImp >::checkPointStep_

protected

◆ conformingOutput_

template<class GridImp , class DataImp >

bool Dune::Fem::DataOutput< GridImp, DataImp >::conformingOutput_

protectedinherited

◆ data_

template<class GridImp , class DataImp >

OutPutDataType Dune::Fem::DataOutput< GridImp, DataImp >::data_

protectedinherited

◆ datapref_

template<class GridImp , class DataImp >

std::string Dune::Fem::DataOutput< GridImp, DataImp >::datapref_

protectedinherited

◆ dataPtr_

template<class GridImp >

OutPutDataType* Dune::Fem::CheckPointer< GridImp >::dataPtr_

protected

◆ fakeData_

template<class GridImp >

OutPutDataType Dune::Fem::CheckPointer< GridImp >::fakeData_

protected

◆ grapeDisplay_

template<class GridImp , class DataImp >

bool Dune::Fem::DataOutput< GridImp, DataImp >::grapeDisplay_

protectedinherited

◆ grid_

template<class GridImp , class DataImp >

const GridType& Dune::Fem::DataOutput< GridImp, DataImp >::grid_

protectedinherited

type of this class

◆ macroGrid_

std::stringstream Dune::Fem::DataWriter< GridImp, std::tuple<> >::macroGrid_

mutableprotectedinherited

◆ maxCheckPointNumber_

template<class GridImp >

const int Dune::Fem::CheckPointer< GridImp >::maxCheckPointNumber_

protected

◆ myRank_

template<class GridImp >

int Dune::Fem::CheckPointer< GridImp >::myRank_

protected

◆ outputFormat_

template<class GridImp , class DataImp >

OutputFormat Dune::Fem::DataOutput< GridImp, DataImp >::outputFormat_

protectedinherited

◆ param_

template<class GridImp , class DataImp >

std::unique_ptr< const DataOutputParameters > Dune::Fem::DataOutput< GridImp, DataImp >::param_

protectedinherited

◆ path_

template<class GridImp , class DataImp >

std::string Dune::Fem::DataOutput< GridImp, DataImp >::path_

protectedinherited

◆ persistentGridObject_

template<class GridImp >

std::unique_ptr< PersistentGridObjectType > Dune::Fem::CheckPointer< GridImp >::persistentGridObject_

protected

◆ pvd_

template<class GridImp , class DataImp >

std::unique_ptr< PVDWriter > Dune::Fem::DataOutput< GridImp, DataImp >::pvd_

protectedinherited

◆ saveCount_

template<class GridImp , class DataImp >

int Dune::Fem::DataOutput< GridImp, DataImp >::saveCount_

protectedinherited

◆ saveStep_

template<class GridImp , class DataImp >

double Dune::Fem::DataOutput< GridImp, DataImp >::saveStep_

protectedinherited

◆ saveTime_

template<class GridImp , class DataImp >

double Dune::Fem::DataOutput< GridImp, DataImp >::saveTime_

mutableprotectedinherited

◆ separateRankPath_

const bool Dune::Fem::DataWriter< GridImp, std::tuple<> >::separateRankPath_

protectedinherited

◆ sequence_

template<class GridImp , class DataImp >

std::unique_ptr< FileWriter > Dune::Fem::DataOutput< GridImp, DataImp >::sequence_

protectedinherited

◆ takeCareOfPersistenceManager_

template<class GridImp >

bool Dune::Fem::CheckPointer< GridImp >::takeCareOfPersistenceManager_

protected

◆ writeCalls_

template<class GridImp , class DataImp >

int Dune::Fem::DataOutput< GridImp, DataImp >::writeCalls_

mutableprotectedinherited

◆ writeStep_

template<class GridImp , class DataImp >

int Dune::Fem::DataOutput< GridImp, DataImp >::writeStep_

mutableprotectedinherited

The documentation for this class was generated from the following file:

datawriter.hh

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ BaseType

◆ DofManagerType

◆ GridType

◆ OutPutDataType

◆ PersistentGridObjectType

◆ ThisType

Member Enumeration Documentation

◆ OutputFormat

Constructor & Destructor Documentation

◆ CheckPointer() [1/3]

◆ CheckPointer() [2/3]

◆ CheckPointer() [3/3]

write checkpoint every ‘CheckPointStep’ time step

store checkpoint information to file ‘CheckPointFile’

Member Function Documentation

◆ consistentSaveStep()

◆ copyPathToFilename()

◆ createGlobalPath()

◆ createPath() [1/2]

◆ createPath() [2/2]

◆ createPathName()

◆ createRecoverPath()

◆ defaultGridKey() [1/4]

◆ defaultGridKey() [2/4]

◆ defaultGridKey() [3/4]

◆ defaultGridKey() [4/4]

◆ display()

◆ getGridPart() [1/3]

◆ getGridPart() [2/3]

◆ getGridPart() [3/3]

◆ grapeDisplay()

◆ initialize()

◆ myClassName()

◆ path()

◆ readCheckPoint()

◆ readPath()

◆ restoreData() [1/2]

◆ restoreData() [2/2]

◆ restoreGrid()

◆ restorePersistentData()

◆ restoreUserData()

◆ saveTime()

◆ willWrite() [1/2]

◆ willWrite() [2/2]

◆ write() [1/4]

◆ write() [2/4]

◆ write() [3/4]

◆ write() [4/4]

◆ writeBinaryData()

◆ writeCalls()

◆ writeCheckPoint()

◆ writeData() [1/2]

◆ writeData() [2/2]

◆ writeGnuPlotOutput()

◆ writeMyBinaryData()

◆ writeSingleCheckPoint()

◆ writeStep()

Member Data Documentation

◆ checkPointFile_

◆ checkPointStep_

◆ conformingOutput_

◆ data_

◆ datapref_

◆ dataPtr_

◆ fakeData_

◆ grapeDisplay_

◆ grid_

◆ macroGrid_

◆ maxCheckPointNumber_

◆ myRank_

◆ outputFormat_
