Implementation of the Dune::Fem::IOInterface. This class manages data output. Available output formats are GRAPE, VTK and VTK Vertex projected using the VtxProjection operator. Details can be found in DiscFuncIO. More...

#include <dune/fem/io/file/dataoutput.hh>

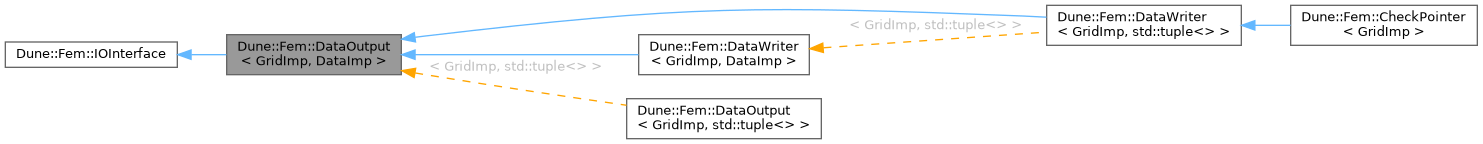

Inheritance diagram for Dune::Fem::DataOutput< GridImp, DataImp >:

Public Types
enum	OutputFormat { vtk = 0 , vtkvtx = 1 , subvtk = 2 , binary = 3 , gnuplot = 4 , none = 5 }

typedef GridImp	GridType
	type of grid used

typedef DataImp	OutPutDataType
	type of data tuple

Public Member Functions
	DataOutput (const GridType &grid, OutPutDataType &data, std::unique_ptr< const DataOutputParameters > parameters)
	Constructor creating data output class.

	DataOutput (const GridType &grid, OutPutDataType &data, const DataOutputParameters &parameter)
	Constructor creating data output class.

	DataOutput (const GridType &grid, OutPutDataType &data, const ParameterReader &parameter=Parameter::container())

	DataOutput (const GridType &grid, OutPutDataType &data, const TimeProviderBase &tp, std::unique_ptr< const DataOutputParameters > parameters)
	Constructor creating data writer.

	DataOutput (const GridType &grid, OutPutDataType &data, const TimeProviderBase &tp, const DataOutputParameters &parameter)
	Constructor creating data writer.

	DataOutput (const GridType &grid, OutPutDataType &data, const TimeProviderBase &tp, const ParameterReader &parameter=Parameter::container())

void	consistentSaveStep (const TimeProviderBase &tp) const

virtual bool	willWrite (const TimeProviderBase &tp) const
	returns true if data will be written on next write call

virtual bool	willWrite () const
	returns true if data will be written on next write call

void	write (const std::string &outstring) const
	write given data to disc, evaluates parameter savecount

void	write () const
	write given data to disc, evaluates parameter savecount

void	write (const TimeProviderBase &tp, const std::string &outstring) const
	write given data to disc, evaluates parameter savecount and savestep

void	write (const TimeProviderBase &tp) const
	write given data to disc, evaluates parameter savecount and savestep

void	writeData (double sequenceStamp, const std::string &outstring) const
	write data with a given sequence stamp and outstring

void	writeData (double sequenceStamp) const
	write data with a given sequence stamp

virtual const char *	myClassName () const
	print class name

const std::string &	path () const
	return output path name

int	writeStep () const
	return write step

int	writeCalls () const
	return write calls

double	saveTime () const
	return save time

Static Public Member Functions
static std::string	defaultGridKey (int dimension, bool check=true)
	return FEM key for macro grid reading

static std::string	defaultGridKey (int dimension, const ParameterReader &parameter, bool check=true)

static std::string	defaultGridKey (std::string base, int dimension, bool check=true)

static std::string	defaultGridKey (std::string base, int dimension, const ParameterReader &parameter, bool check=true)
	return FEM key for macro grid reading

static void	createPath (const std::string &path)
	create given path in combination with rank

template<class CommunicatorType >
static std::string	createPath (const CommunicatorType &comm, const std::string &pathPrefix, const std::string &dataPrefix, const int step, const bool alsoCreateRankPath=true)

static std::string	createPathName (const std::string &pathPref, int rank)
	create given path in combination with rank

static std::string	readPath ()

template<class CommunicatorType >
static void	createGlobalPath (const CommunicatorType &comm, const std::string &path)
	create global path for data output

static std::string	copyPathToFilename (const std::string &path)

static std::string	createRecoverPath (const std::string &pathPrefix, const int rank, const std::string &dataPrefix, const int step, const bool alsoUseRankPath=true)

Protected Member Functions
auto	getGridPart () const

auto	getGridPart (std::integral_constant< bool, false >) const

auto	getGridPart (std::integral_constant< bool, true >) const

std::string	writeGnuPlotOutput () const

virtual void	writeBinaryData (const double) const
	write binary data

virtual void	display () const
	display data with grape

template<class OutputTupleType >
void	grapeDisplay (OutputTupleType &data) const
	display data with grape

Protected Attributes
const GridType &	grid_
	type of this class

OutPutDataType	data_

std::string	path_

std::string	datapref_

bool	grapeDisplay_

int	writeStep_

int	writeCalls_

double	saveTime_

double	saveStep_

int	saveCount_

OutputFormat	outputFormat_

bool	conformingOutput_

std::unique_ptr< FileWriter >	sequence_

std::unique_ptr< PVDWriter >	pvd_

std::unique_ptr< const DataOutputParameters >	param_

Detailed Description

template<class GridImp, class DataImp>
class Dune::Fem::DataOutput< GridImp, DataImp >

Implementation of the Dune::Fem::IOInterface. This class manages data output. Available output formats are GRAPE, VTK and VTK Vertex projected using the VtxProjection operator. Details can be found in DiscFuncIO.

Member Typedef Documentation

◆ GridType

template<class GridImp , class DataImp >

typedef GridImp Dune::Fem::DataOutput< GridImp, DataImp >::GridType

type of grid used

◆ OutPutDataType

template<class GridImp , class DataImp >

typedef DataImp Dune::Fem::DataOutput< GridImp, DataImp >::OutPutDataType

type of data tuple

Member Enumeration Documentation

◆ OutputFormat

template<class GridImp , class DataImp >

enum Dune::Fem::DataOutput::OutputFormat

Enumerator
vtk
vtkvtx
subvtk
binary
gnuplot
none

Constructor & Destructor Documentation

◆ DataOutput() [1/6]

template<class GridImp , class DataImp >

Dune::Fem::DataOutput< GridImp, DataImp >::DataOutput	(	const GridType &	grid,
		OutPutDataType &	data,
		std::unique_ptr< const DataOutputParameters >	parameters
	)

inline

Constructor creating data output class.

Parameters

grid	corresponding grid
data	Tuple containing discrete functions to write
parameters	structure for tuning the behavior of the Dune::DataOutput defaults to Dune::DataOutputParameters

◆ DataOutput() [2/6]

template<class GridImp , class DataImp >

Dune::Fem::DataOutput< GridImp, DataImp >::DataOutput	(	const GridType &	grid,
		OutPutDataType &	data,
		const DataOutputParameters &	parameter
	)

inline

Constructor creating data output class.

Parameters

grid	corresponding grid
data	Tuple containing discrete functions to write
parameter	structure for tuning the behavior of the Dune::DataOutput defaults to Dune::DataOutputParameters

◆ DataOutput() [3/6]

template<class GridImp , class DataImp >

Dune::Fem::DataOutput< GridImp, DataImp >::DataOutput	(	const GridType &	grid,
		OutPutDataType &	data,
		const ParameterReader &	parameter = `Parameter::container()`
	)

inline

◆ DataOutput() [4/6]

template<class GridImp , class DataImp >

Dune::Fem::DataOutput< GridImp, DataImp >::DataOutput	(	const GridType &	grid,
		OutPutDataType &	data,
		const TimeProviderBase &	tp,
		std::unique_ptr< const DataOutputParameters >	parameters
	)

inline

Constructor creating data writer.

Parameters

grid	corresponding grid
data	Tuple containing discrete functions to write
tp	a time provider to set time (e.g. for restart)
parameters	structure for tuning the behavior of the Dune::DataOutput defaults to Dune::DataOutputParameters

◆ DataOutput() [5/6]

template<class GridImp , class DataImp >

Dune::Fem::DataOutput< GridImp, DataImp >::DataOutput	(	const GridType &	grid,
		OutPutDataType &	data,
		const TimeProviderBase &	tp,
		const DataOutputParameters &	parameter
	)

inline

Constructor creating data writer.

Parameters

grid	corresponding grid
data	Tuple containing discrete functions to write
tp	a time provider to set time (e.g. for restart)
parameter	structure for tuning the behavior of the Dune::DataOutput defaults to Dune::DataOutputParameters

◆ DataOutput() [6/6]

template<class GridImp , class DataImp >

Dune::Fem::DataOutput< GridImp, DataImp >::DataOutput	(	const GridType &	grid,
		OutPutDataType &	data,
		const TimeProviderBase &	tp,
		const ParameterReader &	parameter = `Parameter::container()`
	)

inline

Member Function Documentation

◆ consistentSaveStep()

template<class GridImp , class DataImp >

void Dune::Fem::DataOutput< GridImp, DataImp >::consistentSaveStep ( const TimeProviderBase & tp ) const

inline

◆ copyPathToFilename()

static std::string Dune::Fem::IOInterface::copyPathToFilename ( const std::string & path )

inlinestaticinherited

◆ createGlobalPath()

template<class CommunicatorType >

static void Dune::Fem::IOInterface::createGlobalPath	(	const CommunicatorType &	comm,
		const std::string &	path
	)

inlinestaticinherited

create global path for data output

◆ createPath() [1/2]

template<class CommunicatorType >

static std::string Dune::Fem::IOInterface::createPath	(	const CommunicatorType &	comm,
		const std::string &	pathPrefix,
		const std::string &	dataPrefix,
		const int	step,
		const bool	alsoCreateRankPath = `true`
	)

inlinestaticinherited

◆ createPath() [2/2]

static void Dune::Fem::IOInterface::createPath ( const std::string & path )

inlinestaticinherited

create given path in combination with rank

◆ createPathName()

static std::string Dune::Fem::IOInterface::createPathName	(	const std::string &	pathPref,
		int	rank
	)

inlinestaticinherited

create given path in combination with rank

◆ createRecoverPath()

static std::string Dune::Fem::IOInterface::createRecoverPath	(	const std::string &	pathPrefix,
		const int	rank,
		const std::string &	dataPrefix,
		const int	step,
		const bool	alsoUseRankPath = `true`
	)

inlinestaticinherited

◆ defaultGridKey() [1/4]

static std::string Dune::Fem::IOInterface::defaultGridKey	(	int	dimension,
		bool	check = `true`
	)

inlinestaticinherited

return FEM key for macro grid reading

◆ defaultGridKey() [2/4]

static std::string Dune::Fem::IOInterface::defaultGridKey	(	int	dimension,
		const ParameterReader &	parameter,
		bool	check = `true`
	)

inlinestaticinherited

◆ defaultGridKey() [3/4]

static std::string Dune::Fem::IOInterface::defaultGridKey	(	std::string	base,
		int	dimension,
		bool	check = `true`
	)

inlinestaticinherited

◆ defaultGridKey() [4/4]

static std::string Dune::Fem::IOInterface::defaultGridKey	(	std::string	base,
		int	dimension,
		const ParameterReader &	parameter,
		bool	check = `true`
	)

inlinestaticinherited

return FEM key for macro grid reading

◆ display()

template<class GridImp , class DataImp >

virtual void Dune::Fem::DataOutput< GridImp, DataImp >::display ( ) const

inlineprotectedvirtual

display data with grape

◆ getGridPart() [1/3]

template<class GridImp , class DataImp >

auto Dune::Fem::DataOutput< GridImp, DataImp >::getGridPart ( ) const

inlineprotected

◆ getGridPart() [2/3]

template<class GridImp , class DataImp >

auto Dune::Fem::DataOutput< GridImp, DataImp >::getGridPart ( std::integral_constant< bool, false > ) const

inlineprotected

◆ getGridPart() [3/3]

template<class GridImp , class DataImp >

auto Dune::Fem::DataOutput< GridImp, DataImp >::getGridPart ( std::integral_constant< bool, true > ) const

inlineprotected

◆ grapeDisplay()

template<class GridImp , class DataImp >

template<class OutputTupleType >

void Dune::Fem::DataOutput< GridImp, DataImp >::grapeDisplay ( OutputTupleType & data ) const

inlineprotected

display data with grape

◆ myClassName()

template<class GridImp , class DataImp >

virtual const char * Dune::Fem::DataOutput< GridImp, DataImp >::myClassName ( ) const

inlinevirtual

print class name

Reimplemented in Dune::Fem::DataWriter< GridImp, DataImp >, Dune::Fem::DataWriter< GridImp, std::tuple<> >, and Dune::Fem::CheckPointer< GridImp >.

◆ path()

template<class GridImp , class DataImp >

const std::string & Dune::Fem::DataOutput< GridImp, DataImp >::path ( ) const

inline

return output path name

◆ readPath()

static std::string Dune::Fem::IOInterface::readPath ( )

inlinestaticinherited

standard path reading and creation method rank is added to output path

◆ saveTime()

template<class GridImp , class DataImp >

double Dune::Fem::DataOutput< GridImp, DataImp >::saveTime ( ) const

inline

return save time

◆ willWrite() [1/2]

template<class GridImp , class DataImp >

virtual bool Dune::Fem::DataOutput< GridImp, DataImp >::willWrite ( ) const

inlinevirtual

returns true if data will be written on next write call

◆ willWrite() [2/2]

template<class GridImp , class DataImp >

virtual bool Dune::Fem::DataOutput< GridImp, DataImp >::willWrite ( const TimeProviderBase & tp ) const

inlinevirtual

returns true if data will be written on next write call

Reimplemented in Dune::Fem::CheckPointer< GridImp >.

◆ write() [1/4]

template<class GridImp , class DataImp >

void Dune::Fem::DataOutput< GridImp, DataImp >::write ( ) const

inlinevirtual

write given data to disc, evaluates parameter savecount

Implements Dune::Fem::IOInterface.

◆ write() [2/4]

template<class GridImp , class DataImp >

void Dune::Fem::DataOutput< GridImp, DataImp >::write ( const std::string & outstring ) const

inline

write given data to disc, evaluates parameter savecount

Parameters

outstring pass additional string for naming

◆ write() [3/4]

template<class GridImp , class DataImp >

void Dune::Fem::DataOutput< GridImp, DataImp >::write ( const TimeProviderBase & tp ) const

inlinevirtual

write given data to disc, evaluates parameter savecount and savestep

Parameters

tp	time provider for time and step

Implements Dune::Fem::IOInterface.

◆ write() [4/4]

template<class GridImp , class DataImp >

void Dune::Fem::DataOutput< GridImp, DataImp >::write	(	const TimeProviderBase &	tp,
		const std::string &	outstring
	)		const

inline

write given data to disc, evaluates parameter savecount and savestep

Parameters

tp	time provider for time and step
outstring	pass additional string for naming

◆ writeBinaryData()

template<class GridImp , class DataImp >

virtual void Dune::Fem::DataOutput< GridImp, DataImp >::writeBinaryData ( const double ) const

inlineprotectedvirtual

write binary data

Reimplemented in Dune::Fem::DataWriter< GridImp, DataImp >, Dune::Fem::DataWriter< GridImp, std::tuple<> >, and Dune::Fem::CheckPointer< GridImp >.

◆ writeCalls()

template<class GridImp , class DataImp >

int Dune::Fem::DataOutput< GridImp, DataImp >::writeCalls ( ) const

inline

return write calls

◆ writeData() [1/2]

template<class GridImp , class DataImp >

void Dune::Fem::DataOutput< GridImp, DataImp >::writeData ( double sequenceStamp ) const

inlinevirtual

write data with a given sequence stamp

Parameters

sequenceStamp stamp for the data set

Implements Dune::Fem::IOInterface.

◆ writeData() [2/2]

template<class GridImp , class DataImp >

void Dune::Fem::DataOutput< GridImp, DataImp >::writeData	(	double	sequenceStamp,
		const std::string &	outstring
	)		const

inline

write data with a given sequence stamp and outstring

Parameters

sequenceStamp	stamp for the data set
outstring	pass additional string for naming

◆ writeGnuPlotOutput()

template<class GridImp , class DataImp >

std::string Dune::Fem::DataOutput< GridImp, DataImp >::writeGnuPlotOutput ( ) const

inlineprotected

◆ writeStep()

template<class GridImp , class DataImp >

int Dune::Fem::DataOutput< GridImp, DataImp >::writeStep ( ) const

inline

return write step

Member Data Documentation

◆ conformingOutput_

template<class GridImp , class DataImp >

bool Dune::Fem::DataOutput< GridImp, DataImp >::conformingOutput_

protected

◆ data_

template<class GridImp , class DataImp >

OutPutDataType Dune::Fem::DataOutput< GridImp, DataImp >::data_

protected

◆ datapref_

template<class GridImp , class DataImp >

std::string Dune::Fem::DataOutput< GridImp, DataImp >::datapref_

protected

◆ grapeDisplay_

template<class GridImp , class DataImp >

bool Dune::Fem::DataOutput< GridImp, DataImp >::grapeDisplay_

protected

◆ grid_

template<class GridImp , class DataImp >

const GridType& Dune::Fem::DataOutput< GridImp, DataImp >::grid_

protected

type of this class

◆ outputFormat_

template<class GridImp , class DataImp >

OutputFormat Dune::Fem::DataOutput< GridImp, DataImp >::outputFormat_

protected

◆ param_

template<class GridImp , class DataImp >

std::unique_ptr< const DataOutputParameters > Dune::Fem::DataOutput< GridImp, DataImp >::param_

protected

◆ path_

template<class GridImp , class DataImp >

std::string Dune::Fem::DataOutput< GridImp, DataImp >::path_

protected

◆ pvd_

template<class GridImp , class DataImp >

std::unique_ptr< PVDWriter > Dune::Fem::DataOutput< GridImp, DataImp >::pvd_

protected

◆ saveCount_

template<class GridImp , class DataImp >

int Dune::Fem::DataOutput< GridImp, DataImp >::saveCount_

protected

◆ saveStep_

template<class GridImp , class DataImp >

double Dune::Fem::DataOutput< GridImp, DataImp >::saveStep_

protected

◆ saveTime_

template<class GridImp , class DataImp >

double Dune::Fem::DataOutput< GridImp, DataImp >::saveTime_

mutableprotected

◆ sequence_

template<class GridImp , class DataImp >

std::unique_ptr< FileWriter > Dune::Fem::DataOutput< GridImp, DataImp >::sequence_

protected

◆ writeCalls_

template<class GridImp , class DataImp >

int Dune::Fem::DataOutput< GridImp, DataImp >::writeCalls_

mutableprotected

◆ writeStep_

template<class GridImp , class DataImp >

int Dune::Fem::DataOutput< GridImp, DataImp >::writeStep_

mutableprotected

The documentation for this class was generated from the following file:

dataoutput.hh

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ GridType

◆ OutPutDataType

Member Enumeration Documentation

◆ OutputFormat

Constructor & Destructor Documentation

◆ DataOutput() [1/6]

◆ DataOutput() [2/6]

◆ DataOutput() [3/6]

◆ DataOutput() [4/6]

◆ DataOutput() [5/6]

◆ DataOutput() [6/6]

Member Function Documentation

◆ consistentSaveStep()

◆ copyPathToFilename()

◆ createGlobalPath()

◆ createPath() [1/2]

◆ createPath() [2/2]

◆ createPathName()

◆ createRecoverPath()

◆ defaultGridKey() [1/4]

◆ defaultGridKey() [2/4]

◆ defaultGridKey() [3/4]

◆ defaultGridKey() [4/4]

◆ display()

◆ getGridPart() [1/3]

◆ getGridPart() [2/3]

◆ getGridPart() [3/3]

◆ grapeDisplay()

◆ myClassName()

◆ path()

◆ readPath()

◆ saveTime()

◆ willWrite() [1/2]

◆ willWrite() [2/2]

◆ write() [1/4]

◆ write() [2/4]

◆ write() [3/4]

◆ write() [4/4]

◆ writeBinaryData()

◆ writeCalls()

◆ writeData() [1/2]

◆ writeData() [2/2]

◆ writeGnuPlotOutput()

◆ writeStep()

Member Data Documentation

◆ conformingOutput_

◆ data_

◆ datapref_

◆ grapeDisplay_

◆ grid_

◆ outputFormat_

◆ param_

◆ path_

◆ pvd_

◆ saveCount_

◆ saveStep_

◆ saveTime_

◆ sequence_

◆ writeCalls_

◆ writeStep_
