Dune::Fem::FilterInterface< FilterTraits > Class Template Reference

Interface class for filter to use with a Dune::FilteredGridPart. More...

#include <dune/fem/gridpart/filter/filter.hh>

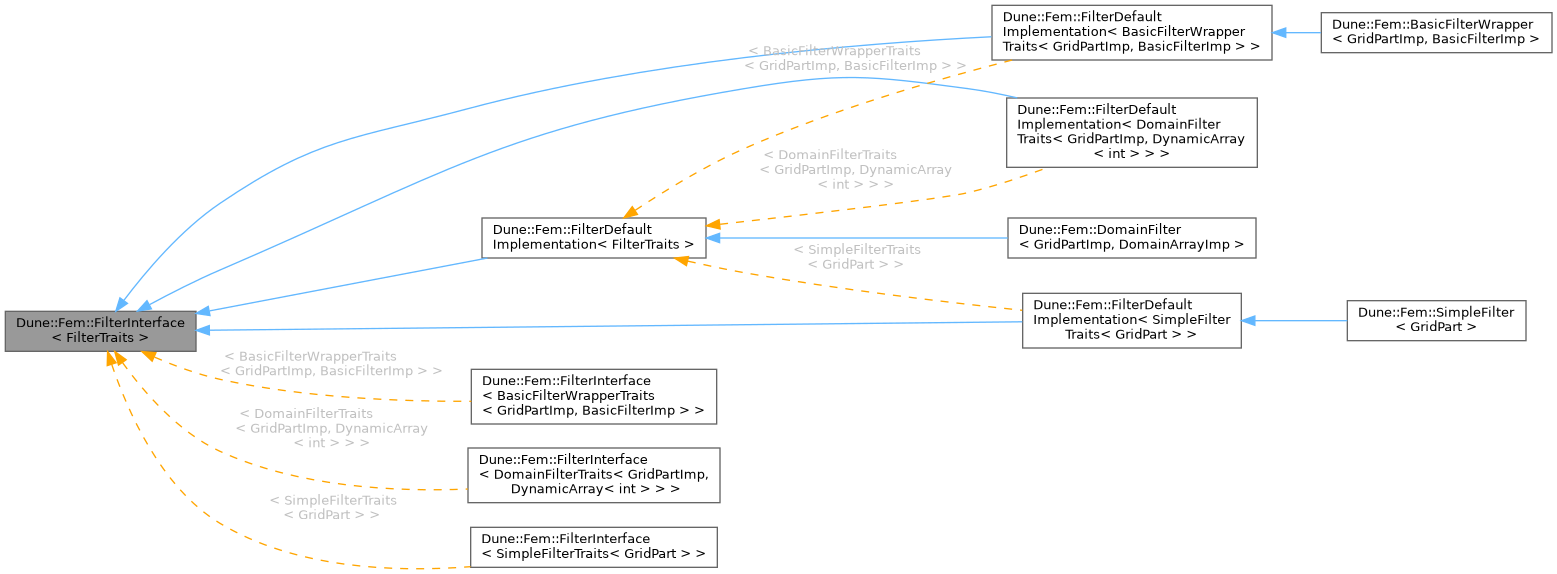

Inheritance diagram for Dune::Fem::FilterInterface< FilterTraits >:

Classes
struct	Codim
	entity types More...

Public Types
typedef Traits::FilterType	FilterType
	type of the filter implementation
typedef Codim< 0 >::EntityType	EntityType
	type of entity with codim=0

Public Member Functions
template<int cd>
bool	contains (const typename Codim< cd >::EntityType &entity) const
	returns true if the given entity of the pointer in the domain
template<class Entity >
bool	contains (const Entity &entity) const
	returns true if the given entity of the pointer in the domain
template<class Intersection >
bool	interiorIntersection (const Intersection &intersection) const
	returns true if an intersection is interior
template<class Intersection >
bool	intersectionBoundary (const Intersection &intersection) const
	returns true if an intersection is a boundary intersection
template<class Intersection >
int	intersectionBoundaryId (const Intersection &intersection) const
	returns the boundary id for an intersection
template<class Intersection >
bool	intersectionNeighbor (const Intersection &intersection) const
	returns true if for an intersection a neighbor exsits

Protected Member Functions
FilterType &	asImp ()
const FilterType &	asImp () const

Friends
class	FilterDefaultImplementation< FilterTraits >

Detailed Description

template<class FilterTraits>
class Dune::Fem::FilterInterface< FilterTraits >

Interface class for filter to use with a Dune::FilteredGridPart.

Member Typedef Documentation

EntityType

template<class FilterTraits >

typedef Codim<0>::EntityType Dune::Fem::FilterInterface< FilterTraits >::EntityType

type of entity with codim=0

FilterType

template<class FilterTraits >

typedef Traits::FilterType Dune::Fem::FilterInterface< FilterTraits >::FilterType

type of the filter implementation

Member Function Documentation

asImp() [1/2]

template<class FilterTraits >

FilterType & Dune::Fem::FilterInterface< FilterTraits >::asImp ( )

inlineprotected

asImp() [2/2]

template<class FilterTraits >

const FilterType & Dune::Fem::FilterInterface< FilterTraits >::asImp ( ) const

inlineprotected

contains() [1/2]

template<class FilterTraits >

template<class Entity >

bool Dune::Fem::FilterInterface< FilterTraits >::contains ( const Entity &  entity ) const

inline

returns true if the given entity of the pointer in the domain

contains() [2/2]

template<class FilterTraits >

template<int cd>

bool Dune::Fem::FilterInterface< FilterTraits >::contains ( const typename Codim< cd >::EntityType &  entity ) const

inline

returns true if the given entity of the pointer in the domain

interiorIntersection()

template<class FilterTraits >

template<class Intersection >

bool Dune::Fem::FilterInterface< FilterTraits >::interiorIntersection ( const Intersection &  intersection ) const

inline

returns true if an intersection is interior

intersectionBoundary()

template<class FilterTraits >

template<class Intersection >

bool Dune::Fem::FilterInterface< FilterTraits >::intersectionBoundary ( const Intersection &  intersection ) const

inline

returns true if an intersection is a boundary intersection

intersectionBoundaryId()

template<class FilterTraits >

template<class Intersection >

int Dune::Fem::FilterInterface< FilterTraits >::intersectionBoundaryId ( const Intersection &  intersection ) const

inline

returns the boundary id for an intersection

intersectionNeighbor()

template<class FilterTraits >

template<class Intersection >

bool Dune::Fem::FilterInterface< FilterTraits >::intersectionNeighbor ( const Intersection &  intersection ) const

inline

returns true if for an intersection a neighbor exsits

Friends And Related Symbol Documentation

FilterDefaultImplementation< FilterTraits >

template<class FilterTraits >

friend class FilterDefaultImplementation< FilterTraits >

friend

---

The documentation for this class was generated from the following file:

• filter/filter.hh
