Interface for the GridPart classes A GridPart class allows to access only a specific subset of a grid's entities. A GridPart implementation provides the corresponding index set and a begin/end iterator pair for accessing those entities, the corresponding intersection iterators and a appropriate communication method. GridParts are used to parametrize spaces (see DiscreteFunctionSpaceDefault [in dune-fem]). More...

#include <dune/fem/gridpart/common/gridpart.hh>

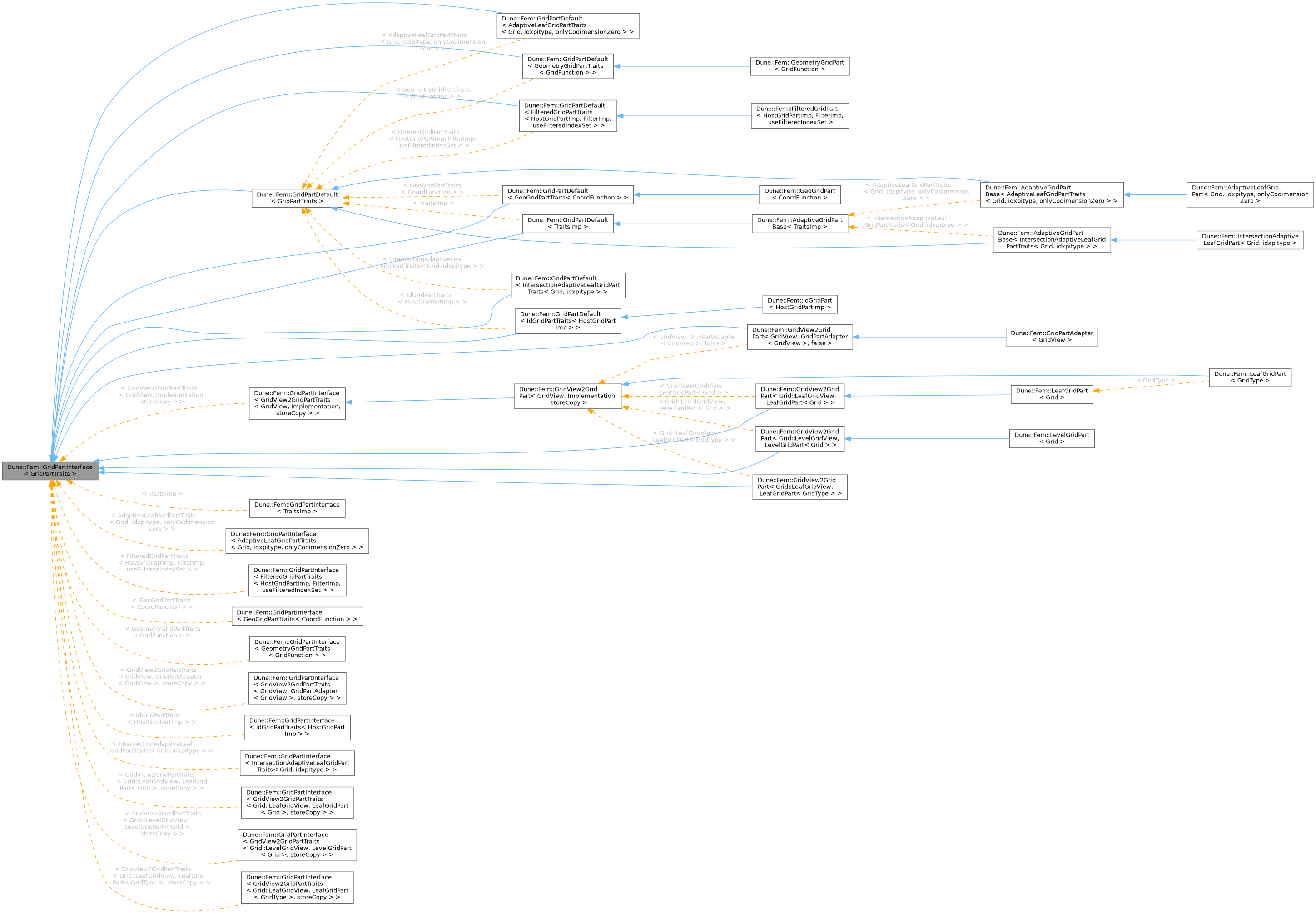

Inheritance diagram for Dune::Fem::GridPartInterface< GridPartTraits >:

Classes
struct	Codim

Public Types
typedef GridPartTraits	Traits
	Type of the Traits.

typedef Traits::GridPartType	GridPartType
	Type of the implementation.

typedef Traits::GridType	GridType
	type of Grid implementation

typedef GridType	Grid
	type of Grid implementation

typedef Traits::IndexSetType	IndexSetType
	Index set implementation.

typedef IndexSetType	IndexSet
	Index set implementation.

typedef Traits::CommunicationType	CommunicationType
	Collective communication.

typedef CommunicationType	Communication
	Collective communication.

typedef Traits::TwistUtilityType	TwistUtilityType
	Twist utility type.

typedef Traits::IntersectionIteratorType	IntersectionIteratorType
	type of IntersectionIterator

typedef IntersectionIteratorType	IntersectionIterator
	type of IntersectionIterator

typedef IntersectionIteratorType::Intersection	IntersectionType
	type of Intersection

typedef IntersectionType	Intersection
	type of Intersection

typedef GridPartType	GridViewType

typedef GridType::ctype	ctype

Public Member Functions
const GridType &	grid () const
	Returns const reference to the underlying grid.

GridType &	grid ()
	Returns reference to the underlying grid.

const IndexSetType &	indexSet () const
	Returns reference to index set of the underlying grid.

bool	isConforming () const
	returns true if current grid part represents a conforming grid

int	size (int codim) const
	obtain number of entities in a given codimension

int	size (const GeometryType &type) const
	obtain number of entities with a given geometry type

template<int codim>
Codim< codim >::IteratorType	begin () const
	obtain begin iterator for the interior-border partition

template<int codim, PartitionIteratorType pitype>
Codim< codim >::template Partition< pitype >::IteratorType	begin () const
	obtain begin iterator for the given partition

template<int codim>
Codim< codim >::IteratorType	end () const
	obtain end iterator for the interior-border partition

template<int codim, PartitionIteratorType pitype>
Codim< codim >::template Partition< pitype >::IteratorType	end () const
	obtain end iterator for the given partition

int	level () const
	Level of the grid part.

IntersectionIteratorType	ibegin (const typename Codim< 0 >::EntityType &entity) const
	ibegin of corresponding intersection iterator for given entity

IntersectionIteratorType	iend (const typename Codim< 0 >::EntityType &entity) const
	iend of corresponding intersection iterator for given entity

int	boundaryId (const IntersectionType &intersection) const
	return boundary if given an intersection

const CommunicationType &	comm () const
	obtain collective communication object

template<class DataHandleImp , class DataType >
void	communicate (CommDataHandleIF< DataHandleImp, DataType > &data, InterfaceType iftype, CommunicationDirection dir) const
	corresponding communication method for grid part

template<class EntitySeed >
Codim< EntitySeed::codimension >::EntityType	entity (const EntitySeed &seed) const
	obtain entity pointer from entity seed

template<class Entity >
const Entity &	convert (const Entity &entity) const
	convert the grid's entity to a grid part entity Usually the parameter is GridType :: Codim< codim > :: Entity and the return is Codim< codim > :: EntityType. In general these types are the same, but for overloaded entities on grid parts this can differ.

template<class EntityType >
bool	contains (const EntityType &e) const
	Return true if the given entity is contained in this grid view.

int	overlapSize (int codim) const

int	ghostSize (int codim) const

int	sequence () const
	return sequence number to update structures depending on the grid part

const auto &	gridView () const

Static Public Attributes
static const PartitionIteratorType	indexSetPartitionType = Traits::indexSetPartitionType
	Maximum Partition type, the index set provides indices for.

static const InterfaceType	indexSetInterfaceType = Traits::indexSetInterfaceType

static constexpr int	dimension = GridType::dimension

static constexpr int	dimensionworld = GridType::dimensionworld

static constexpr bool	conforming = Traits::conforming

Protected Member Functions
	GridPartInterface ()=default
	do not create explicit instances of this class

Detailed Description

template<class GridPartTraits>
class Dune::Fem::GridPartInterface< GridPartTraits >

Interface for the GridPart classes A GridPart class allows to access only a specific subset of a grid's entities. A GridPart implementation provides the corresponding index set and a begin/end iterator pair for accessing those entities, the corresponding intersection iterators and a appropriate communication method. GridParts are used to parametrize spaces (see DiscreteFunctionSpaceDefault [in dune-fem]).

Member Typedef Documentation

◆ Communication

template<class GridPartTraits >

typedef CommunicationType Dune::Fem::GridPartInterface< GridPartTraits >::Communication

Collective communication.

◆ CommunicationType

template<class GridPartTraits >

typedef Traits::CommunicationType Dune::Fem::GridPartInterface< GridPartTraits >::CommunicationType

Collective communication.

◆ ctype

template<class GridPartTraits >

typedef GridType::ctype Dune::Fem::GridPartInterface< GridPartTraits >::ctype

◆ Grid

template<class GridPartTraits >

typedef GridType Dune::Fem::GridPartInterface< GridPartTraits >::Grid

type of Grid implementation

◆ GridPartType

template<class GridPartTraits >

typedef Traits::GridPartType Dune::Fem::GridPartInterface< GridPartTraits >::GridPartType

Type of the implementation.

◆ GridType

template<class GridPartTraits >

typedef Traits::GridType Dune::Fem::GridPartInterface< GridPartTraits >::GridType

type of Grid implementation

◆ GridViewType

template<class GridPartTraits >

typedef GridPartType Dune::Fem::GridPartInterface< GridPartTraits >::GridViewType

◆ IndexSet

template<class GridPartTraits >

typedef IndexSetType Dune::Fem::GridPartInterface< GridPartTraits >::IndexSet

Index set implementation.

◆ IndexSetType

template<class GridPartTraits >

typedef Traits::IndexSetType Dune::Fem::GridPartInterface< GridPartTraits >::IndexSetType

Index set implementation.

◆ Intersection

template<class GridPartTraits >

typedef IntersectionType Dune::Fem::GridPartInterface< GridPartTraits >::Intersection

type of Intersection

◆ IntersectionIterator

template<class GridPartTraits >

typedef IntersectionIteratorType Dune::Fem::GridPartInterface< GridPartTraits >::IntersectionIterator

type of IntersectionIterator

◆ IntersectionIteratorType

template<class GridPartTraits >

typedef Traits::IntersectionIteratorType Dune::Fem::GridPartInterface< GridPartTraits >::IntersectionIteratorType

type of IntersectionIterator

◆ IntersectionType

template<class GridPartTraits >

typedef IntersectionIteratorType::Intersection Dune::Fem::GridPartInterface< GridPartTraits >::IntersectionType

type of Intersection

◆ Traits

template<class GridPartTraits >

typedef GridPartTraits Dune::Fem::GridPartInterface< GridPartTraits >::Traits

Type of the Traits.

◆ TwistUtilityType

template<class GridPartTraits >

typedef Traits::TwistUtilityType Dune::Fem::GridPartInterface< GridPartTraits >::TwistUtilityType

Twist utility type.

Constructor & Destructor Documentation

◆ GridPartInterface()

template<class GridPartTraits >

Dune::Fem::GridPartInterface< GridPartTraits >::GridPartInterface ( )

protecteddefault

do not create explicit instances of this class

Member Function Documentation

◆ begin() [1/2]

template<class GridPartTraits >

template<int codim>

Codim< codim >::IteratorType Dune::Fem::GridPartInterface< GridPartTraits >::begin ( ) const

inline

obtain begin iterator for the interior-border partition

Template Parameters

codim codimension for which the iterator is requested

◆ begin() [2/2]

template<class GridPartTraits >

template<int codim, PartitionIteratorType pitype>

Codim< codim >::template Partition< pitype >::IteratorType Dune::Fem::GridPartInterface< GridPartTraits >::begin ( ) const

inline

obtain begin iterator for the given partition

Template Parameters

codim	codimension for which the iterator is requested
pitype	requested partition iterator type

◆ boundaryId()

template<class GridPartTraits >

int Dune::Fem::GridPartInterface< GridPartTraits >::boundaryId ( const IntersectionType & intersection ) const

inline

return boundary if given an intersection

◆ comm()

template<class GridPartTraits >

const CommunicationType & Dune::Fem::GridPartInterface< GridPartTraits >::comm ( ) const

inline

obtain collective communication object

◆ communicate()

template<class GridPartTraits >

template<class DataHandleImp , class DataType >

void Dune::Fem::GridPartInterface< GridPartTraits >::communicate	(	CommDataHandleIF< DataHandleImp, DataType > &	data,
		InterfaceType	iftype,
		CommunicationDirection	dir
	)		const

inline

corresponding communication method for grid part

◆ contains()

template<class GridPartTraits >

template<class EntityType >

bool Dune::Fem::GridPartInterface< GridPartTraits >::contains ( const EntityType & e ) const

inline

Return true if the given entity is contained in this grid view.

Todo:: Currently we call the implementation on the IndexSet. This may lead to suboptimal efficiency.

Note: If the input element e is not an element of the grid, then the result of contains() is undefined.

◆ convert()

template<class GridPartTraits >

template<class Entity >

const Entity & Dune::Fem::GridPartInterface< GridPartTraits >::convert ( const Entity & entity ) const

inline

convert the grid's entity to a grid part entity Usually the parameter is GridType :: Codim< codim > :: Entity and the return is Codim< codim > :: EntityType. In general these types are the same, but for overloaded entities on grid parts this can differ.

◆ end() [1/2]

template<class GridPartTraits >

template<int codim>

Codim< codim >::IteratorType Dune::Fem::GridPartInterface< GridPartTraits >::end ( ) const

inline

obtain end iterator for the interior-border partition

Template Parameters

codim codimension for which the iterator is requested

◆ end() [2/2]

template<class GridPartTraits >

template<int codim, PartitionIteratorType pitype>

Codim< codim >::template Partition< pitype >::IteratorType Dune::Fem::GridPartInterface< GridPartTraits >::end ( ) const

inline

obtain end iterator for the given partition

Template Parameters

codim	codimension for which the iterator is requested
pitype	requested partition iterator type

◆ entity()

template<class GridPartTraits >

template<class EntitySeed >

Codim< EntitySeed::codimension >::EntityType Dune::Fem::GridPartInterface< GridPartTraits >::entity ( const EntitySeed & seed ) const

inline

obtain entity pointer from entity seed

◆ ghostSize()

template<class GridPartTraits >

int Dune::Fem::GridPartInterface< GridPartTraits >::ghostSize ( int codim ) const

inline

◆ grid() [1/2]

template<class GridPartTraits >

GridType & Dune::Fem::GridPartInterface< GridPartTraits >::grid ( )

inline

Returns reference to the underlying grid.

◆ grid() [2/2]

template<class GridPartTraits >

const GridType & Dune::Fem::GridPartInterface< GridPartTraits >::grid ( ) const

inline

Returns const reference to the underlying grid.

◆ gridView()

template<class GridPartTraits >

const auto & Dune::Fem::GridPartInterface< GridPartTraits >::gridView ( ) const

inline

◆ ibegin()

template<class GridPartTraits >

IntersectionIteratorType Dune::Fem::GridPartInterface< GridPartTraits >::ibegin ( const typename Codim< 0 >::EntityType & entity ) const

inline

ibegin of corresponding intersection iterator for given entity

◆ iend()

template<class GridPartTraits >

IntersectionIteratorType Dune::Fem::GridPartInterface< GridPartTraits >::iend ( const typename Codim< 0 >::EntityType & entity ) const

inline

iend of corresponding intersection iterator for given entity

◆ indexSet()

template<class GridPartTraits >

const IndexSetType & Dune::Fem::GridPartInterface< GridPartTraits >::indexSet ( ) const

inline

Returns reference to index set of the underlying grid.

◆ isConforming()

template<class GridPartTraits >

bool Dune::Fem::GridPartInterface< GridPartTraits >::isConforming ( ) const

inline

returns true if current grid part represents a conforming grid

◆ level()

template<class GridPartTraits >

int Dune::Fem::GridPartInterface< GridPartTraits >::level ( ) const

inline

Level of the grid part.

◆ overlapSize()

template<class GridPartTraits >

int Dune::Fem::GridPartInterface< GridPartTraits >::overlapSize ( int codim ) const

inline

◆ sequence()

template<class GridPartTraits >

int Dune::Fem::GridPartInterface< GridPartTraits >::sequence ( ) const

inline

return sequence number to update structures depending on the grid part

Note: The default returns DofManager< Grid > :: sequence ()

◆ size() [1/2]

template<class GridPartTraits >

int Dune::Fem::GridPartInterface< GridPartTraits >::size ( const GeometryType & type ) const

inline

obtain number of entities with a given geometry type

◆ size() [2/2]

template<class GridPartTraits >

int Dune::Fem::GridPartInterface< GridPartTraits >::size ( int codim ) const

inline

obtain number of entities in a given codimension

Member Data Documentation

◆ conforming

template<class GridPartTraits >

constexpr bool Dune::Fem::GridPartInterface< GridPartTraits >::conforming = Traits::conforming

staticconstexpr

◆ dimension

template<class GridPartTraits >

constexpr int Dune::Fem::GridPartInterface< GridPartTraits >::dimension = GridType::dimension

staticconstexpr

◆ dimensionworld

template<class GridPartTraits >

constexpr int Dune::Fem::GridPartInterface< GridPartTraits >::dimensionworld = GridType::dimensionworld

staticconstexpr

◆ indexSetInterfaceType

template<class GridPartTraits >

const InterfaceType Dune::Fem::GridPartInterface< GridPartTraits >::indexSetInterfaceType = Traits::indexSetInterfaceType

static

◆ indexSetPartitionType

template<class GridPartTraits >

const PartitionIteratorType Dune::Fem::GridPartInterface< GridPartTraits >::indexSetPartitionType = Traits::indexSetPartitionType

static

Maximum Partition type, the index set provides indices for.

The documentation for this class was generated from the following file:

gridpart.hh

Classes

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Detailed Description

Member Typedef Documentation

◆ Communication

◆ CommunicationType

◆ ctype

◆ Grid

◆ GridPartType

◆ GridType

◆ GridViewType

◆ IndexSet

◆ IndexSetType

◆ Intersection

◆ IntersectionIterator

◆ IntersectionIteratorType

◆ IntersectionType

◆ Traits

◆ TwistUtilityType

Constructor & Destructor Documentation

◆ GridPartInterface()

Member Function Documentation

◆ begin() [1/2]

◆ begin() [2/2]

◆ boundaryId()

◆ comm()

◆ communicate()

◆ contains()

◆ convert()

◆ end() [1/2]

◆ end() [2/2]

◆ entity()

◆ ghostSize()

◆ grid() [1/2]

◆ grid() [2/2]

◆ gridView()

◆ ibegin()

◆ iend()

◆ indexSet()

◆ isConforming()

◆ level()

◆ overlapSize()

◆ sequence()

◆ size() [1/2]

◆ size() [2/2]

Member Data Documentation

◆ conforming

◆ dimension

◆ dimensionworld

◆ indexSetInterfaceType

◆ indexSetPartitionType
