Public Types | Public Member Functions | Protected Member Functions | Static Protected Member Functions | Related Symbols | List of all members
Dune::Fem::BasicInstationaryFunction< FunctionSpace, Function > Class Template Reference
Functions

basic wrapper class (still a CRTP) for instationary functions More...

#include <dune/fem/function/common/instationary.hh>

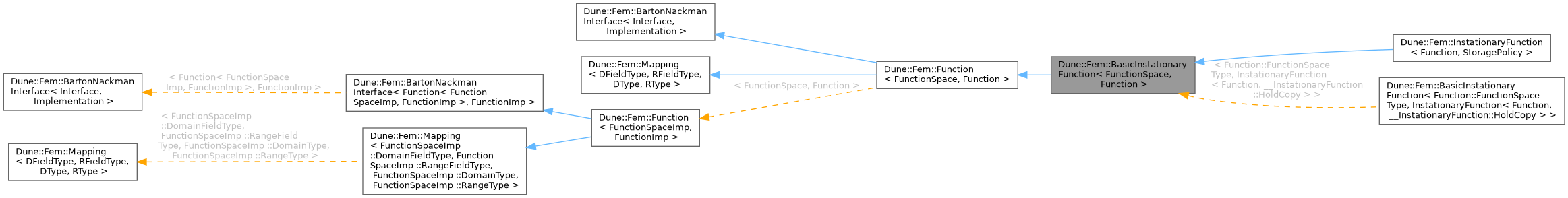

Inheritance diagram for Dune::Fem::BasicInstationaryFunction< FunctionSpace, Function >:
Inheritance graph

Public Types

typedef FunctionSpace FunctionSpaceType
 type of function space this function belongs to

typedef Function FunctionType
 type of the implementation (Barton-Nackman)

typedef FunctionSpaceType::DomainFieldType DomainFieldType
 field type of domain

typedef FunctionSpaceType::RangeFieldType RangeFieldType
 field type of range

typedef FunctionSpaceType::DomainType DomainType
 domain type

typedef FunctionSpaceType::RangeType RangeType
 range type

typedef FunctionSpaceType::JacobianRangeType JacobianRangeType
 jacobian type

typedef FunctionSpaceType::HessianRangeType HessianRangeType
 hessian type

typedef Mapping< DomainFieldType, RangeFieldType, DomainType, RangeType > MappingType
 type of mapping base class


Public Member Functions

virtual void operator() (const DomainType &arg, RangeType &dest) const
 application operator call evaluate

void operator() (const DomainType &arg, RangeType &dest) const
 Application operator that applies all operators in the linear combination stack.

void evaluate (const DomainType &x, RangeType &value) const
 evaluate the function

void jacobian (const DomainType &x, JacobianRangeType &jacobian) const
 evaluate the Jacobian of the function

void hessian (const DomainType &x, HessianRangeType &hessian) const
 evaluate the hessian of the function

Constructon
 BasicInstationaryFunction (double time)

Set time
double setTime (double time)
 set time to give value

double time () const
 return set time


Protected Member Functions

const Implementation & asImp () const

Implementation & asImp ()


Static Protected Member Functions

static const Implementation & asImp (const ThisType &other)

static Implementation & asImp (ThisType &other)

static const Implementation & asImp (const ThisType &other)

static Implementation & asImp (ThisType &other)


Related Symbols

(Note that these are not member symbols.)

template<class DFieldType , class RFieldType , class DType , class RType >
static Mapping< DFieldType, RFieldType, DType, RType > operator+ (const Mapping< DFieldType, RFieldType, DType, RType > &a, const Mapping< DFieldType, RFieldType, DType, RType > &b)
 add two mappings

template<class DFieldType , class RFieldType , class DType , class RType >
static Mapping< DFieldType, RFieldType, DType, RType > operator- (const Mapping< DFieldType, RFieldType, DType, RType > &a, const Mapping< DFieldType, RFieldType, DType, RType > &b)
 substract two mappings

template<class DFieldType , class RFieldType , class DType , class RType >
static Mapping< DFieldType, RFieldType, DType, RType > operator* (const Mapping< DFieldType, RFieldType, DType, RType > &mapping, const RFieldType &factor)
 scale mapping with factor

template<class DFieldType , class RFieldType , class DType , class RType >
static Mapping< DFieldType, RFieldType, DType, RType > operator* (const RFieldType &factor, const Mapping< DFieldType, RFieldType, DType, RType > &mapping)
 scale mapping with factor

template<class DFieldType , class RFieldType , class DType , class RType >
static Mapping< DFieldType, RFieldType, DType, RType > operator/ (const Mapping< DFieldType, RFieldType, DType, RType > &mapping, const RFieldType &factor)
 operator / for mappings

template<class DFieldType , class RFieldType , class DType , class RType >
static Mapping< DFieldType, RFieldType, DType, RType > operator/ (const RFieldType &factor, const Mapping< DFieldType, RFieldType, DType, RType > &mapping)
 operator / for mappings


Detailed Description

template<class FunctionSpace, class Function>
class Dune::Fem::BasicInstationaryFunction< FunctionSpace, Function >

basic wrapper class (still a CRTP) for instationary functions

This class implements two methods

double setTime(double);
double time() const;
Dune::Fem::BasicInstationaryFunction::setTime
double setTime(double time)
set time to give value
Definition instationary.hh:56
Dune::Fem::BasicInstationaryFunction::time
double time() const
return set time
Definition instationary.hh:59

for wrapping some time dependent function and making it a Dune::Fem::Function that may only depend on spatial variables.

Member Typedef Documentation

◆ DomainFieldType

typedef FunctionSpaceType::DomainFieldType Dune::Fem::Function< FunctionSpace , Function >::DomainFieldType
inherited

field type of domain

◆ DomainType

typedef FunctionSpaceType::DomainType Dune::Fem::Function< FunctionSpace , Function >::DomainType
inherited

domain type

◆ FunctionSpaceType

typedef FunctionSpace Dune::Fem::Function< FunctionSpace , Function >::FunctionSpaceType
inherited

type of function space this function belongs to

◆ FunctionType

typedef Function Dune::Fem::Function< FunctionSpace , Function >::FunctionType
inherited

type of the implementation (Barton-Nackman)

◆ HessianRangeType

typedef FunctionSpaceType::HessianRangeType Dune::Fem::Function< FunctionSpace , Function >::HessianRangeType
inherited

hessian type

◆ JacobianRangeType

typedef FunctionSpaceType::JacobianRangeType Dune::Fem::Function< FunctionSpace , Function >::JacobianRangeType
inherited

jacobian type

◆ MappingType

typedef Mapping< DomainFieldType, RangeFieldType, DomainType, RangeType > Dune::Fem::Function< FunctionSpace , Function >::MappingType
inherited

type of mapping base class

◆ RangeFieldType

typedef FunctionSpaceType::RangeFieldType Dune::Fem::Function< FunctionSpace , Function >::RangeFieldType
inherited

field type of range

◆ RangeType

typedef FunctionSpaceType::RangeType Dune::Fem::Function< FunctionSpace , Function >::RangeType
inherited

range type

Constructor & Destructor Documentation

◆ BasicInstationaryFunction()

template<class FunctionSpace , class Function >
Dune::Fem::BasicInstationaryFunction< FunctionSpace, Function >::BasicInstationaryFunction ( double  time)
inlineexplicit

Member Function Documentation

◆ asImp() [1/6]

Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( )
inlineprotectedinherited

◆ asImp() [2/6]

const Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( ) const
inlineprotectedinherited

◆ asImp() [3/6]

static const Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( const ThisType &  other)
inlinestaticprotectedinherited

◆ asImp() [4/6]

template<class Interface , class Implementation >
static const Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( const ThisType &  other)
inlinestaticprotectedinherited

◆ asImp() [5/6]

static Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( ThisType &  other)
inlinestaticprotectedinherited

◆ asImp() [6/6]

template<class Interface , class Implementation >
static Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( ThisType &  other)
inlinestaticprotectedinherited

◆ evaluate()

void Dune::Fem::Function< FunctionSpace , Function >::evaluate ( const DomainType &  x,
RangeType &  value
) const
inlineinherited

evaluate the function

Parameters
[in]xevaluation point
[out]valuevalue of the function in x

◆ hessian()

void Dune::Fem::Function< FunctionSpace , Function >::hessian ( const DomainType &  x,
HessianRangeType &  hessian
) const
inlineinherited

evaluate the hessian of the function

Parameters
[in]xevaluation point
[out]hessianvalue of the hessian in x

◆ jacobian()

void Dune::Fem::Function< FunctionSpace , Function >::jacobian ( const DomainType &  x,
JacobianRangeType &  jacobian
) const
inlineinherited

evaluate the Jacobian of the function

Parameters
[in]xevaluation point
[out]jacobianvalue of the Jacobian in x

◆ operator()() [1/2]

virtual void Dune::Fem::Function< FunctionSpace , Function >::operator() ( const DomainType &  arg,
RangeType &  dest
) const
inlinevirtualinherited

application operator call evaluate

Parameters
[in]argargument
[out]destdestination, i.e. f(arg)

◆ operator()() [2/2]

template<typename DFieldType , typename RFieldType , class DType , class RType >
void Dune::Fem::Mapping< DFieldType, RFieldType, DType, RType >::operator() ( const DomainType &  arg,
RangeType &  dest
) const
inlineinherited

Application operator that applies all operators in the linear combination stack.

Parameters
[in]argargument
[out]destdestination

◆ setTime()

template<class FunctionSpace , class Function >
double Dune::Fem::BasicInstationaryFunction< FunctionSpace, Function >::setTime ( double  time)
inline

set time to give value

Parameters
[in]timetime to be used
Returns
set time

◆ time()

template<class FunctionSpace , class Function >
double Dune::Fem::BasicInstationaryFunction< FunctionSpace, Function >::time ( ) const
inline

return set time

Friends And Related Symbol Documentation

◆ operator*() [1/2]

template<class DFieldType , class RFieldType , class DType , class RType >
static Mapping< DFieldType, RFieldType, DType, RType > operator* ( const Mapping< DFieldType, RFieldType, DType, RType > &  mapping,
const RFieldType &  factor
)
related

scale mapping with factor

Parameters
[in]mappingMapping which is scaled
[in]factorfactor with which mapping is scaled
Returns
new object mapping

◆ operator*() [2/2]

template<class DFieldType , class RFieldType , class DType , class RType >
static Mapping< DFieldType, RFieldType, DType, RType > operator* ( const RFieldType &  factor,
const Mapping< DFieldType, RFieldType, DType, RType > &  mapping
)
related

scale mapping with factor

Parameters
[in]factorfactor with which mapping is scaled
[in]mappingMapping which is scaled
Returns
new object mapping

◆ operator+()

template<class DFieldType , class RFieldType , class DType , class RType >
static Mapping< DFieldType, RFieldType, DType, RType > operator+ ( const Mapping< DFieldType, RFieldType, DType, RType > &  a,
const Mapping< DFieldType, RFieldType, DType, RType > &  b
)
related

add two mappings

Parameters
[in]amapping 1
[in]bmapping 2
Returns
new object mapping

◆ operator-()

template<class DFieldType , class RFieldType , class DType , class RType >
static Mapping< DFieldType, RFieldType, DType, RType > operator- ( const Mapping< DFieldType, RFieldType, DType, RType > &  a,
const Mapping< DFieldType, RFieldType, DType, RType > &  b
)
related

substract two mappings

Parameters
[in]amapping 1
[in]bmapping 2
Returns
new object mapping

◆ operator/() [1/2]

template<class DFieldType , class RFieldType , class DType , class RType >
static Mapping< DFieldType, RFieldType, DType, RType > operator/ ( const Mapping< DFieldType, RFieldType, DType, RType > &  mapping,
const RFieldType &  factor
)
related

operator / for mappings

Parameters
[in]mappingmapping which is divided
[in]factorf factor by which result of mapping is divided
Returns
new object mapping

◆ operator/() [2/2]

template<class DFieldType , class RFieldType , class DType , class RType >
static Mapping< DFieldType, RFieldType, DType, RType > operator/ ( const RFieldType &  factor,
const Mapping< DFieldType, RFieldType, DType, RType > &  mapping
)
related

operator / for mappings

Parameters
[in]factorby which result of mapping is divided
[in]mappingwhich is divided
Returns
new object mapping
The documentation for this class was generated from the following file:
