Dune::Fem::Function< FunctionSpaceImp, FunctionImp > Class Template Reference

Abstract class representing a function. More...

#include <dune/fem/function/common/function.hh>

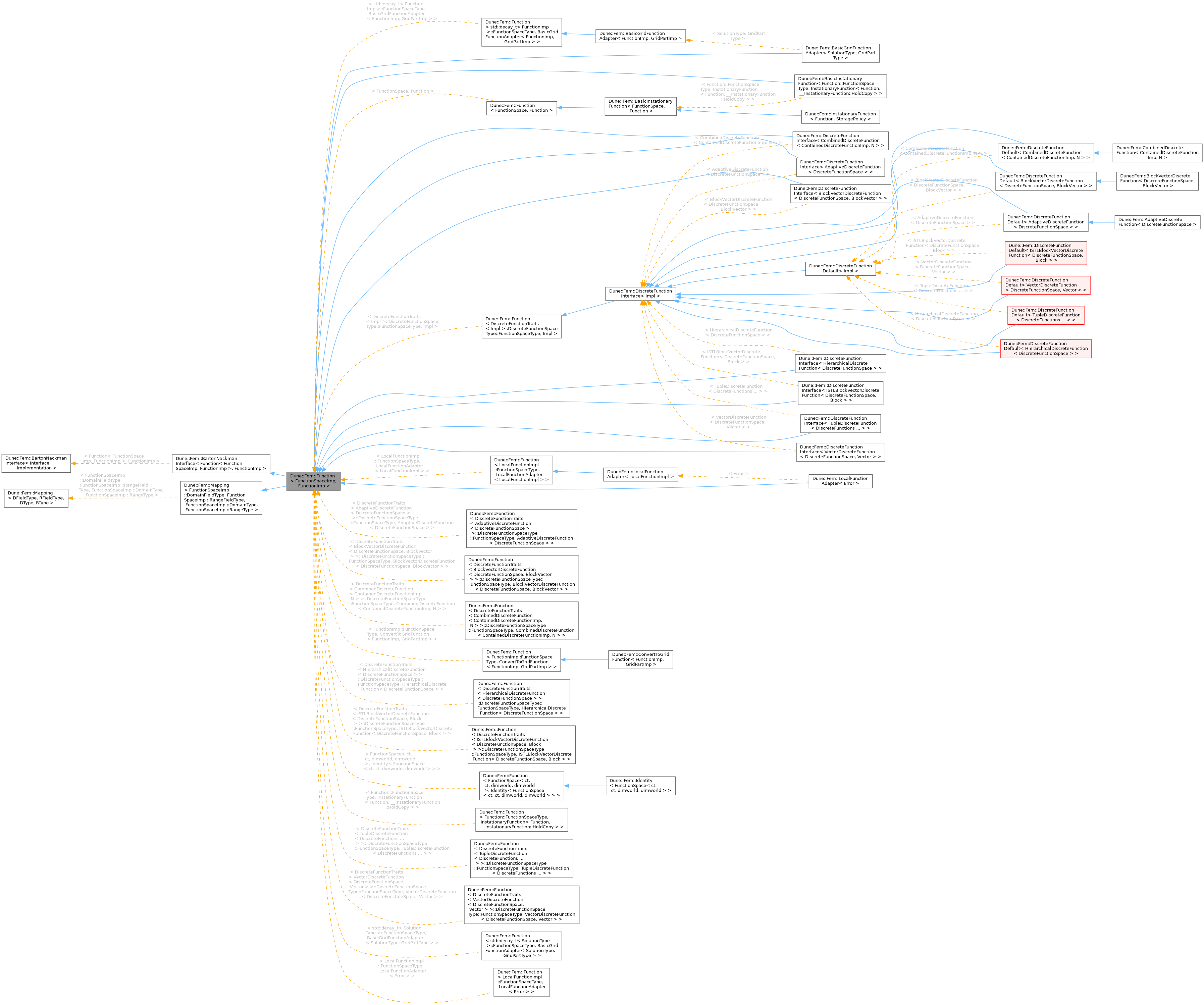

Inheritance diagram for Dune::Fem::Function< FunctionSpaceImp, FunctionImp >:

Public Types
typedef FunctionSpaceImp	FunctionSpaceType
	type of function space this function belongs to
typedef FunctionImp	FunctionType
	type of the implementation (Barton-Nackman)
typedef FunctionSpaceType::DomainFieldType	DomainFieldType
	field type of domain
typedef FunctionSpaceType::RangeFieldType	RangeFieldType
	field type of range
typedef FunctionSpaceType::DomainType	DomainType
	domain type
typedef FunctionSpaceType::RangeType	RangeType
	range type
typedef FunctionSpaceType::JacobianRangeType	JacobianRangeType
	jacobian type
typedef FunctionSpaceType::HessianRangeType	HessianRangeType
	hessian type
typedef Mapping< DomainFieldType, RangeFieldType, DomainType, RangeType >	MappingType
	type of mapping base class

Public Member Functions
ThisType &	operator= (const ThisType &)=delete
virtual	~Function ()
	destructor
virtual void	operator() (const DomainType &arg, RangeType &dest) const
	application operator call evaluate
void	evaluate (const DomainType &x, RangeType &value) const
	evaluate the function
void	jacobian (const DomainType &x, JacobianRangeType &jacobian) const
	evaluate the Jacobian of the function
void	hessian (const DomainType &x, HessianRangeType &hessian) const
	evaluate the hessian of the function
void	operator() (const DomainType &arg, RangeType &dest) const
	Application operator that applies all operators in the linear combination stack.

Protected Member Functions
	Function ()=default
	default constructor
	Function (const ThisType &)=default
const Implementation &	asImp () const
Implementation &	asImp ()

Static Protected Member Functions
static const Implementation &	asImp (const ThisType &other)
static Implementation &	asImp (ThisType &other)
static const FunctionImp &	asImp (const ThisType &other)
static FunctionImp &	asImp (ThisType &other)

Related Symbols
(Note that these are not member symbols.)
static Mapping< FunctionSpaceImp ::DomainFieldType, FunctionSpaceImp ::RangeFieldType, FunctionSpaceImp ::DomainType, FunctionSpaceImp ::RangeType >	operator+ (const Mapping< FunctionSpaceImp ::DomainFieldType, FunctionSpaceImp ::RangeFieldType, FunctionSpaceImp ::DomainType, FunctionSpaceImp ::RangeType > &a, const Mapping< FunctionSpaceImp ::DomainFieldType, FunctionSpaceImp ::RangeFieldType, FunctionSpaceImp ::DomainType, FunctionSpaceImp ::RangeType > &b)
	add two mappings
static Mapping< FunctionSpaceImp ::DomainFieldType, FunctionSpaceImp ::RangeFieldType, FunctionSpaceImp ::DomainType, FunctionSpaceImp ::RangeType >	operator- (const Mapping< FunctionSpaceImp ::DomainFieldType, FunctionSpaceImp ::RangeFieldType, FunctionSpaceImp ::DomainType, FunctionSpaceImp ::RangeType > &a, const Mapping< FunctionSpaceImp ::DomainFieldType, FunctionSpaceImp ::RangeFieldType, FunctionSpaceImp ::DomainType, FunctionSpaceImp ::RangeType > &b)
	substract two mappings
static Mapping< FunctionSpaceImp ::DomainFieldType, FunctionSpaceImp ::RangeFieldType, FunctionSpaceImp ::DomainType, FunctionSpaceImp ::RangeType >	operator* (const Mapping< FunctionSpaceImp ::DomainFieldType, FunctionSpaceImp ::RangeFieldType, FunctionSpaceImp ::DomainType, FunctionSpaceImp ::RangeType > &mapping, const FunctionSpaceImp ::RangeFieldType &factor)
	scale mapping with factor
static Mapping< FunctionSpaceImp ::DomainFieldType, FunctionSpaceImp ::RangeFieldType, FunctionSpaceImp ::DomainType, FunctionSpaceImp ::RangeType >	operator* (const FunctionSpaceImp ::RangeFieldType &factor, const Mapping< FunctionSpaceImp ::DomainFieldType, FunctionSpaceImp ::RangeFieldType, FunctionSpaceImp ::DomainType, FunctionSpaceImp ::RangeType > &mapping)
	scale mapping with factor
static Mapping< FunctionSpaceImp ::DomainFieldType, FunctionSpaceImp ::RangeFieldType, FunctionSpaceImp ::DomainType, FunctionSpaceImp ::RangeType >	operator/ (const Mapping< FunctionSpaceImp ::DomainFieldType, FunctionSpaceImp ::RangeFieldType, FunctionSpaceImp ::DomainType, FunctionSpaceImp ::RangeType > &mapping, const FunctionSpaceImp ::RangeFieldType &factor)
	operator / for mappings
static Mapping< FunctionSpaceImp ::DomainFieldType, FunctionSpaceImp ::RangeFieldType, FunctionSpaceImp ::DomainType, FunctionSpaceImp ::RangeType >	operator/ (const FunctionSpaceImp ::RangeFieldType &factor, const Mapping< FunctionSpaceImp ::DomainFieldType, FunctionSpaceImp ::RangeFieldType, FunctionSpaceImp ::DomainType, FunctionSpaceImp ::RangeType > &mapping)
	operator / for mappings

Detailed Description

template<class FunctionSpaceImp, class FunctionImp>
class Dune::Fem::Function< FunctionSpaceImp, FunctionImp >

Abstract class representing a function.

Template parameters are:

• FunctionSpaceImp type of the function space where the function belongs to.

• FunctionImp type of the implemented function (Barton-Nackman)

  An interface class:

Member Typedef Documentation

DomainFieldType

template<class FunctionSpaceImp , class FunctionImp >

typedef FunctionSpaceType::DomainFieldType Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::DomainFieldType

field type of domain

DomainType

template<class FunctionSpaceImp , class FunctionImp >

typedef FunctionSpaceType::DomainType Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::DomainType

domain type

FunctionSpaceType

template<class FunctionSpaceImp , class FunctionImp >

typedef FunctionSpaceImp Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::FunctionSpaceType

type of function space this function belongs to

FunctionType

template<class FunctionSpaceImp , class FunctionImp >

typedef FunctionImp Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::FunctionType

type of the implementation (Barton-Nackman)

HessianRangeType

template<class FunctionSpaceImp , class FunctionImp >

typedef FunctionSpaceType::HessianRangeType Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::HessianRangeType

hessian type

JacobianRangeType

template<class FunctionSpaceImp , class FunctionImp >

typedef FunctionSpaceType::JacobianRangeType Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::JacobianRangeType

jacobian type

MappingType

template<class FunctionSpaceImp , class FunctionImp >

typedef Mapping< DomainFieldType, RangeFieldType, DomainType, RangeType > Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::MappingType

type of mapping base class

RangeFieldType

template<class FunctionSpaceImp , class FunctionImp >

typedef FunctionSpaceType::RangeFieldType Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::RangeFieldType

field type of range

RangeType

template<class FunctionSpaceImp , class FunctionImp >

typedef FunctionSpaceType::RangeType Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::RangeType

range type

Constructor & Destructor Documentation

Function() [1/2]

template<class FunctionSpaceImp , class FunctionImp >

Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::Function ( )

protecteddefault

default constructor

Function() [2/2]

template<class FunctionSpaceImp , class FunctionImp >

Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::Function ( const ThisType &  )

protecteddefault

~Function()

template<class FunctionSpaceImp , class FunctionImp >

virtual Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::~Function ( )

inlinevirtual

destructor

Member Function Documentation

asImp() [1/6]

template<class FunctionSpaceImp , class FunctionImp >

Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( )

inlineprotected

asImp() [2/6]

template<class FunctionSpaceImp , class FunctionImp >

const Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( ) const

inlineprotected

asImp() [3/6]

template<class FunctionSpaceImp , class FunctionImp >

static const Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( const ThisType &  other )

inlinestaticprotected

asImp() [4/6]

static const FunctionImp & Dune::Fem::BartonNackmanInterface< Function< FunctionSpaceImp, FunctionImp > , FunctionImp >::asImp ( const ThisType &  other )

inlinestaticprotectedinherited

asImp() [5/6]

template<class FunctionSpaceImp , class FunctionImp >

static Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( ThisType &  other )

inlinestaticprotected

asImp() [6/6]

static FunctionImp & Dune::Fem::BartonNackmanInterface< Function< FunctionSpaceImp, FunctionImp > , FunctionImp >::asImp ( ThisType &  other )

inlinestaticprotectedinherited

evaluate()

template<class FunctionSpaceImp , class FunctionImp >

void Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::evaluate ( const DomainType &  x, RangeType &  value  ) const

inline

evaluate the function

Parameters

[in]	x	evaluation point
[out]	value	value of the function in x

hessian()

template<class FunctionSpaceImp , class FunctionImp >

void Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::hessian ( const DomainType &  x, HessianRangeType &  hessian  ) const

inline

evaluate the hessian of the function

Parameters

[in]	x	evaluation point
[out]	hessian	value of the hessian in x

jacobian()

template<class FunctionSpaceImp , class FunctionImp >

void Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::jacobian ( const DomainType &  x, JacobianRangeType &  jacobian  ) const

inline

evaluate the Jacobian of the function

Parameters

[in]	x	evaluation point
[out]	jacobian	value of the Jacobian in x

operator()() [1/2]

template<class FunctionSpaceImp , class FunctionImp >

virtual void Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::operator() ( const DomainType &  arg, RangeType &  dest  ) const

inlinevirtual

application operator call evaluate

Parameters

[in]	arg	argument
[out]	dest	destination, i.e. f(arg)

operator()() [2/2]

void Dune::Fem::Mapping< FunctionSpaceImp ::DomainFieldType , FunctionSpaceImp ::RangeFieldType , FunctionSpaceImp ::DomainType , FunctionSpaceImp ::RangeType >::operator() ( const DomainType &  arg, RangeType &  dest  ) const

inlineinherited

Application operator that applies all operators in the linear combination stack.

Parameters

[in]	arg	argument
[out]	dest	destination

operator=()

template<class FunctionSpaceImp , class FunctionImp >

ThisType & Dune::Fem::Function< FunctionSpaceImp, FunctionImp >::operator= ( const ThisType &  )

delete

Friends And Related Symbol Documentation

operator*() [1/2]

static Mapping< FunctionSpaceImp ::DomainFieldType , FunctionSpaceImp ::RangeFieldType , FunctionSpaceImp ::DomainType , FunctionSpaceImp ::RangeType > operator* ( const FunctionSpaceImp ::RangeFieldType &  factor, const Mapping< FunctionSpaceImp ::DomainFieldType , FunctionSpaceImp ::RangeFieldType , FunctionSpaceImp ::DomainType , FunctionSpaceImp ::RangeType > &  mapping  )

related

scale mapping with factor

Parameters

[in]	factor	factor with which mapping is scaled
[in]	mapping	Mapping which is scaled

Returns

new object mapping

operator*() [2/2]

static Mapping< FunctionSpaceImp ::DomainFieldType , FunctionSpaceImp ::RangeFieldType , FunctionSpaceImp ::DomainType , FunctionSpaceImp ::RangeType > operator* ( const Mapping< FunctionSpaceImp ::DomainFieldType , FunctionSpaceImp ::RangeFieldType , FunctionSpaceImp ::DomainType , FunctionSpaceImp ::RangeType > &  mapping, const FunctionSpaceImp ::RangeFieldType &  factor  )

related

scale mapping with factor

Parameters

[in]	mapping	Mapping which is scaled
[in]	factor	factor with which mapping is scaled

Returns

new object mapping

operator+()

static Mapping< FunctionSpaceImp ::DomainFieldType , FunctionSpaceImp ::RangeFieldType , FunctionSpaceImp ::DomainType , FunctionSpaceImp ::RangeType > operator+ ( const Mapping< FunctionSpaceImp ::DomainFieldType , FunctionSpaceImp ::RangeFieldType , FunctionSpaceImp ::DomainType , FunctionSpaceImp ::RangeType > &  a, const Mapping< FunctionSpaceImp ::DomainFieldType , FunctionSpaceImp ::RangeFieldType , FunctionSpaceImp ::DomainType , FunctionSpaceImp ::RangeType > &  b  )

related

add two mappings

Parameters

[in]	a	mapping 1
[in]	b	mapping 2

Returns

new object mapping

operator-()

static Mapping< FunctionSpaceImp ::DomainFieldType , FunctionSpaceImp ::RangeFieldType , FunctionSpaceImp ::DomainType , FunctionSpaceImp ::RangeType > operator- ( const Mapping< FunctionSpaceImp ::DomainFieldType , FunctionSpaceImp ::RangeFieldType , FunctionSpaceImp ::DomainType , FunctionSpaceImp ::RangeType > &  a, const Mapping< FunctionSpaceImp ::DomainFieldType , FunctionSpaceImp ::RangeFieldType , FunctionSpaceImp ::DomainType , FunctionSpaceImp ::RangeType > &  b  )

related

substract two mappings

Parameters

[in]	a	mapping 1
[in]	b	mapping 2

Returns

new object mapping

operator/() [1/2]

static Mapping< FunctionSpaceImp ::DomainFieldType , FunctionSpaceImp ::RangeFieldType , FunctionSpaceImp ::DomainType , FunctionSpaceImp ::RangeType > operator/ ( const FunctionSpaceImp ::RangeFieldType &  factor, const Mapping< FunctionSpaceImp ::DomainFieldType , FunctionSpaceImp ::RangeFieldType , FunctionSpaceImp ::DomainType , FunctionSpaceImp ::RangeType > &  mapping  )

related

operator / for mappings

Parameters

[in]	factor	by which result of mapping is divided
[in]	mapping	which is divided

Returns

new object mapping

operator/() [2/2]

static Mapping< FunctionSpaceImp ::DomainFieldType , FunctionSpaceImp ::RangeFieldType , FunctionSpaceImp ::DomainType , FunctionSpaceImp ::RangeType > operator/ ( const Mapping< FunctionSpaceImp ::DomainFieldType , FunctionSpaceImp ::RangeFieldType , FunctionSpaceImp ::DomainType , FunctionSpaceImp ::RangeType > &  mapping, const FunctionSpaceImp ::RangeFieldType &  factor  )

related

operator / for mappings

Parameters

[in]	mapping	mapping which is divided
[in]	factor	f factor by which result of mapping is divided

Returns

new object mapping

---

The documentation for this class was generated from the following file:

• common/function.hh
