vector space out of a tensor product of fields. More...

#include <dune/common/fvector.hh>

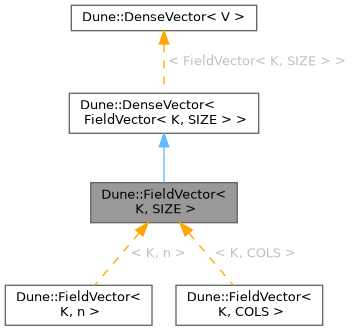

Inheritance diagram for Dune::FieldVector< K, SIZE >:

Public Types
using	size_type = typename Base::size_type
	The type used for the index access and size operation.

using	value_type = typename Base::value_type
	The type of the elements stored in the vector.

using	reference = value_type &
	The type used for references to the vector entries.

using	const_reference = const value_type &
	The type used for const references to the vector entries.

typedef Traits::derived_type	derived_type
	type of derived vector class

typedef FieldTraits< value_type >::field_type	field_type
	export the type representing the field

typedef Traits::value_type	block_type
	export the type representing the components

typedef DenseIterator< DenseVector, value_type >	Iterator
	Iterator class for sequential access.

typedef Iterator	iterator
	typedef for stl compliant access

typedef DenseIterator< const DenseVector, const value_type >	ConstIterator
	ConstIterator class for sequential access.

typedef ConstIterator	const_iterator
	typedef for stl compliant access

Public Member Functions
constexpr	FieldVector () noexcept(std::is_nothrow_default_constructible_v< K >)
	Default constructor, making value-initialized vector with all components set to zero.

	explicit (SIZE !=1) const expr FieldVector(const value_type &value) noexcept
	Constructor with a given value initializing all entries to this value.

template<Concept::Number S> requires (std::constructible_from<K,S>)
	explicit (SIZE !=1) const expr FieldVector(const S &scalar) noexcept(std::is_nothrow_constructible_v< K, S >)
	Constructor with a given scalar initializing all entries to this value.

constexpr	FieldVector (const std::initializer_list< K > &l)
	Construct from a std::initializer_list of values.

template<class V > requires (IsFieldVectorSizeCorrect<V,SIZE>::value && std::is_assignable_v<K&, decltype(std::declval<const V&>()[0])>)
constexpr	FieldVector (const DenseVector< V > &x)
	Constructor from another dense vector if the elements are assignable to K.

template<class OtherK > requires (std::is_assignable_v<K&, const OtherK&>)
constexpr	FieldVector (const FieldVector< OtherK, SIZE > &x) noexcept(std::is_nothrow_assignable_v< K &, const OtherK & >)
	Converting constructor from FieldVector with different element type.

constexpr	FieldVector (const FieldVector &)=default
	Copy constructor with default behavior.

template<class V > requires (IsFieldVectorSizeCorrect<V,SIZE>::value && std::is_assignable_v<K&, decltype(std::declval<const V&>()[0])>)
constexpr FieldVector &	operator= (const DenseVector< V > &x)
	Assignment from another dense vector.

template<Concept::Number S> requires std::constructible_from<K,S>
constexpr FieldVector &	operator= (const S &scalar) noexcept(std::is_nothrow_constructible_v< K, S >)
	Assignment operator from scalar.

template<class OtherK > requires (std::is_assignable_v<K&, const OtherK&>)
constexpr FieldVector &	operator= (const FieldVector< OtherK, SIZE > &x) noexcept(std::is_nothrow_assignable_v< K &, const OtherK & >)
	Converting assignment operator from FieldVector with different element type.

constexpr FieldVector &	operator= (const FieldVector &)=default
	Copy assignment operator with default behavior.

constexpr value_type &	front ()
	return reference to first element

constexpr const value_type &	front () const
	return reference to first element

constexpr value_type &	back ()
	return reference to last element

constexpr const value_type &	back () const
	return reference to last element

constexpr bool	empty () const
	checks whether the container is empty

constexpr size_type	size () const
	size method

constexpr Iterator	begin ()
	begin iterator

constexpr ConstIterator	begin () const
	begin ConstIterator

constexpr Iterator	end ()
	end iterator

constexpr ConstIterator	end () const
	end ConstIterator

constexpr Iterator	beforeEnd ()

constexpr ConstIterator	beforeEnd () const

constexpr Iterator	beforeBegin ()

constexpr ConstIterator	beforeBegin () const

constexpr Iterator	find (size_type i)
	return iterator to given element or end()

constexpr ConstIterator	find (size_type i) const
	return iterator to given element or end()

constexpr derived_type &	operator+= (const DenseVector< Other > &x)
	vector space addition

constexpr std::enable_if< std::is_convertible< ValueType, value_type >::value, derived_type >::type &	operator+= (const ValueType &kk)
	vector space add scalar to all comps

constexpr derived_type &	operator-= (const DenseVector< Other > &x)
	vector space subtraction

constexpr std::enable_if< std::is_convertible< ValueType, value_type >::value, derived_type >::type &	operator-= (const ValueType &kk)
	vector space subtract scalar from all comps

constexpr derived_type	operator+ (const DenseVector< Other > &b) const
	Binary vector addition.

constexpr derived_type	operator- (const DenseVector< Other > &b) const
	Binary vector subtraction.

constexpr derived_type	operator- () const
	Vector negation.

constexpr std::enable_if< std::is_convertible< FieldType, field_type >::value, derived_type >::type &	operator*= (const FieldType &kk)
	vector space multiplication with scalar

constexpr std::enable_if< std::is_convertible< FieldType, field_type >::value, derived_type >::type &	operator/= (const FieldType &kk)
	vector space division by scalar

constexpr bool	operator== (const DenseVector< Other > &x) const
	Binary vector comparison.

constexpr bool	operator!= (const DenseVector< Other > &x) const
	Binary vector incomparison.

constexpr derived_type &	axpy (const field_type &a, const DenseVector< Other > &x)
	vector space axpy operation ( *this += a x )

constexpr PromotionTraits< field_type, typenameDenseVector< Other >::field_type >::PromotedType	operator* (const DenseVector< Other > &x) const
	indefinite vector dot product \(\left (x^T \cdot y \right)\) which corresponds to Petsc's VecTDot

constexpr PromotionTraits< field_type, typenameDenseVector< Other >::field_type >::PromotedType	dot (const DenseVector< Other > &x) const
	vector dot product \(\left (x^H \cdot y \right)\) which corresponds to Petsc's VecDot

constexpr FieldTraits< value_type >::real_type	one_norm () const
	one norm (sum over absolute values of entries)

constexpr FieldTraits< value_type >::real_type	one_norm_real () const
	simplified one norm (uses Manhattan norm for complex values)

constexpr FieldTraits< value_type >::real_type	two_norm () const
	two norm sqrt(sum over squared values of entries)

constexpr FieldTraits< value_type >::real_type	two_norm2 () const
	square of two norm (sum over squared values of entries), need for block recursion

constexpr FieldTraits< vt >::real_type	infinity_norm () const
	infinity norm (maximum of absolute values of entries)

constexpr FieldTraits< vt >::real_type	infinity_norm () const
	infinity norm (maximum of absolute values of entries)

constexpr FieldTraits< vt >::real_type	infinity_norm_real () const
	simplified infinity norm (uses Manhattan norm for complex values)

constexpr FieldTraits< vt >::real_type	infinity_norm_real () const
	simplified infinity norm (uses Manhattan norm for complex values)

constexpr size_type	N () const
	number of blocks in the vector (are of size 1 here)

constexpr size_type	dim () const
	dimension of the vector space

Element access
constexpr reference	operator[] (size_type i)
	Return a reference to the `i`th element.

constexpr const_reference	operator[] (size_type i) const
	Return a (const) reference to the `i`th element.

constexpr K *	data () noexcept
	Return pointer to underlying array.

constexpr const K *	data () const noexcept
	Return pointer to underlying array.

constexpr	operator const_reference () const noexcept
	Conversion operator.

constexpr	operator reference () noexcept
	Conversion operator.

Static Public Member Functions
Capacity
static constexpr size_type	size () noexcept
	Obtain the number of elements stored in the vector.

Static Public Attributes
static constexpr int	dimension = SIZE
	The size of this vector.

static constexpr int	blocklevel
	The number of block levels we contain. This is the leaf, that is, 1.

Friends
Comparison operators
template<Concept::Number S> requires (SIZE == 1)
constexpr bool	operator== (const FieldVector &a, const S &b) noexcept
	comparing FieldVectors<1> with scalar for equality

template<Concept::Number S> requires (SIZE == 1)
constexpr bool	operator== (const S &a, const FieldVector &b) noexcept
	comparing FieldVectors<1> with scalar for equality

template<class T > requires (Std::three_way_comparable_with<K,T>)
constexpr auto	operator<=> (const FieldVector &a, const FieldVector< T, SIZE > &b) noexcept
	three-way comparison of FieldVectors

template<Concept::Number S> requires (SIZE == 1)
constexpr auto	operator<=> (const FieldVector &a, const S &b) noexcept
	three-way comparison of FieldVectors<1> with scalar

template<Concept::Number S> requires (SIZE == 1)
constexpr auto	operator<=> (const S &a, const FieldVector &b) noexcept
	three-way comparison of FieldVectors<1> with scalar

Vector space operations
template<Concept::Number S>
constexpr auto	operator* (const FieldVector &a, const S &b) noexcept
	Vector space multiplication with scalar.

template<Concept::Number S>
constexpr auto	operator* (const S &a, const FieldVector &b) noexcept
	Vector space multiplication with scalar.

template<Concept::Number S>
constexpr auto	operator/ (const FieldVector &a, const S &b) noexcept
	Vector space division by scalar.

template<Concept::Number S> requires (SIZE == 1)
constexpr FieldVector	operator/ (const S &a, const FieldVector &b) noexcept
	Binary division, when using FieldVector<K,1> like K.

template<Concept::Number S> requires (SIZE == 1)
constexpr auto	operator+ (const FieldVector &a, const S &b) noexcept
	Binary addition, when using FieldVector<K,1> like K.

template<Concept::Number S> requires (SIZE == 1)
constexpr auto	operator+ (const S &a, const FieldVector &b) noexcept
	Binary addition, when using FieldVector<K,1> like K.

template<Concept::Number S> requires (SIZE == 1)
constexpr auto	operator- (const FieldVector &a, const S &b) noexcept
	Binary subtraction, when using FieldVector<K,1> like K.

template<Concept::Number S> requires (SIZE == 1)
constexpr auto	operator- (const S &a, const FieldVector &b) noexcept
	Binary subtraction, when using FieldVector<K,1> like K.

Related Symbols
(Note that these are not member symbols.)
template<class K , int SIZE>
std::istream &	operator>> (std::istream &in, FieldVector< K, SIZE > &v)
	Read a FieldVector from an input stream.

std::ostream &	operator<< (std::ostream &s, const DenseVector< FieldVector< K, SIZE > > &v)
	Write a DenseVector to an output stream.

Detailed Description

template<class K, int SIZE>
class Dune::FieldVector< K, SIZE >

vector space out of a tensor product of fields.

Template Parameters

K	the field type (use float, double, complex, etc)
SIZE	number of components.

Member Typedef Documentation

◆ block_type

typedef Traits::value_type Dune::DenseVector< FieldVector< K, SIZE > >::block_type

inherited

export the type representing the components

◆ const_iterator

typedef ConstIterator Dune::DenseVector< FieldVector< K, SIZE > >::const_iterator

inherited

typedef for stl compliant access

◆ const_reference

template<class K , int SIZE>

using Dune::FieldVector< K, SIZE >::const_reference = const value_type&

The type used for const references to the vector entries.

◆ ConstIterator

typedef DenseIterator<const DenseVector,const value_type> Dune::DenseVector< FieldVector< K, SIZE > >::ConstIterator

inherited

ConstIterator class for sequential access.

◆ derived_type

typedef Traits::derived_type Dune::DenseVector< FieldVector< K, SIZE > >::derived_type

inherited

type of derived vector class

◆ field_type

typedef FieldTraits<value_type>::field_type Dune::DenseVector< FieldVector< K, SIZE > >::field_type

inherited

export the type representing the field

◆ Iterator

typedef DenseIterator<DenseVector,value_type> Dune::DenseVector< FieldVector< K, SIZE > >::Iterator

inherited

Iterator class for sequential access.

◆ iterator

typedef Iterator Dune::DenseVector< FieldVector< K, SIZE > >::iterator

inherited

typedef for stl compliant access

◆ reference

template<class K , int SIZE>

using Dune::FieldVector< K, SIZE >::reference = value_type&

The type used for references to the vector entries.

◆ size_type

template<class K , int SIZE>

using Dune::FieldVector< K, SIZE >::size_type = typename Base::size_type

The type used for the index access and size operation.

◆ value_type

template<class K , int SIZE>

using Dune::FieldVector< K, SIZE >::value_type = typename Base::value_type

The type of the elements stored in the vector.

Constructor & Destructor Documentation

◆ FieldVector() [1/5]

template<class K , int SIZE>

constexpr Dune::FieldVector< K, SIZE >::FieldVector ( )

inlineconstexprnoexcept

Default constructor, making value-initialized vector with all components set to zero.

◆ FieldVector() [2/5]

template<class K , int SIZE>

constexpr Dune::FieldVector< K, SIZE >::FieldVector ( const std::initializer_list< K > & l )

inlineconstexpr

Construct from a std::initializer_list of values.

◆ FieldVector() [3/5]

template<class K , int SIZE>

template<class V >
requires (IsFieldVectorSizeCorrect<V,SIZE>::value && std::is_assignable_v<K&, decltype(std::declval<const V&>()[0])>)

constexpr Dune::FieldVector< K, SIZE >::FieldVector ( const DenseVector< V > & x )

inlineconstexpr

Constructor from another dense vector if the elements are assignable to K.

◆ FieldVector() [4/5]

template<class K , int SIZE>

template<class OtherK >
requires (std::is_assignable_v<K&, const OtherK&>)

constexpr Dune::FieldVector< K, SIZE >::FieldVector ( const FieldVector< OtherK, SIZE > & x )

inlineexplicitconstexprnoexcept

Converting constructor from FieldVector with different element type.

◆ FieldVector() [5/5]

template<class K , int SIZE>

constexpr Dune::FieldVector< K, SIZE >::FieldVector ( const FieldVector< K, SIZE > & )

constexprdefault

Copy constructor with default behavior.

Member Function Documentation

◆ axpy()

constexpr derived_type & Dune::DenseVector< FieldVector< K, SIZE > >::axpy	(	const field_type &	a,
		const DenseVector< Other > &	x
	)

inlineconstexprinherited

vector space axpy operation ( *this += a x )

◆ back() [1/2]

constexpr value_type & Dune::DenseVector< FieldVector< K, SIZE > >::back ( )

inlineconstexprinherited

return reference to last element

◆ back() [2/2]

constexpr const value_type & Dune::DenseVector< FieldVector< K, SIZE > >::back ( ) const

inlineconstexprinherited

return reference to last element

◆ beforeBegin() [1/2]

constexpr Iterator Dune::DenseVector< FieldVector< K, SIZE > >::beforeBegin ( )

inlineconstexprinherited

Returns: an iterator that is positioned before the first entry of the vector.

◆ beforeBegin() [2/2]

constexpr ConstIterator Dune::DenseVector< FieldVector< K, SIZE > >::beforeBegin ( ) const

inlineconstexprinherited

Returns: an iterator that is positioned before the first entry of the vector.

◆ beforeEnd() [1/2]

constexpr Iterator Dune::DenseVector< FieldVector< K, SIZE > >::beforeEnd ( )

inlineconstexprinherited

Returns: an iterator that is positioned before the end iterator of the vector, i.e. at the last entry.

◆ beforeEnd() [2/2]

constexpr ConstIterator Dune::DenseVector< FieldVector< K, SIZE > >::beforeEnd ( ) const

inlineconstexprinherited

Returns: an iterator that is positioned before the end iterator of the vector. i.e. at the last element

◆ begin() [1/2]

constexpr Iterator Dune::DenseVector< FieldVector< K, SIZE > >::begin ( )

inlineconstexprinherited

begin iterator

◆ begin() [2/2]

constexpr ConstIterator Dune::DenseVector< FieldVector< K, SIZE > >::begin ( ) const

inlineconstexprinherited

begin ConstIterator

◆ data() [1/2]

template<class K , int SIZE>

constexpr const K * Dune::FieldVector< K, SIZE >::data ( ) const

inlineconstexprnoexcept

Return pointer to underlying array.

◆ data() [2/2]

template<class K , int SIZE>

constexpr K * Dune::FieldVector< K, SIZE >::data ( )

inlineconstexprnoexcept

Return pointer to underlying array.

◆ dim()

constexpr size_type Dune::DenseVector< FieldVector< K, SIZE > >::dim ( ) const

inlineconstexprinherited

dimension of the vector space

◆ dot()

constexpr PromotionTraits< field_type, typenameDenseVector< Other >::field_type >::PromotedType Dune::DenseVector< FieldVector< K, SIZE > >::dot ( const DenseVector< Other > & x ) const

inlineconstexprinherited

vector dot product \(\left (x^H \cdot y \right)\) which corresponds to Petsc's VecDot

http://www.mcs.anl.gov/petsc/petsc-current/docs/manualpages/Vec/VecDot.html

Parameters

x	other vector

Returns

◆ empty()

constexpr bool Dune::DenseVector< FieldVector< K, SIZE > >::empty ( ) const

inlineconstexprinherited

checks whether the container is empty

◆ end() [1/2]

constexpr Iterator Dune::DenseVector< FieldVector< K, SIZE > >::end ( )

inlineconstexprinherited

end iterator

◆ end() [2/2]

constexpr ConstIterator Dune::DenseVector< FieldVector< K, SIZE > >::end ( ) const

inlineconstexprinherited

end ConstIterator

◆ explicit() [1/2]

template<class K , int SIZE>

template<Concept::Number S>
requires (std::constructible_from<K,S>)

Dune::FieldVector< K, SIZE >::explicit ( SIZE ! = 1 ) const &

inlinenoexcept

Constructor with a given scalar initializing all entries to this value.

◆ explicit() [2/2]

template<class K , int SIZE>

Dune::FieldVector< K, SIZE >::explicit ( SIZE ! = 1 ) const &

inlinenoexcept

Constructor with a given value initializing all entries to this value.

◆ find() [1/2]

constexpr Iterator Dune::DenseVector< FieldVector< K, SIZE > >::find ( size_type i )

inlineconstexprinherited

return iterator to given element or end()

◆ find() [2/2]

constexpr ConstIterator Dune::DenseVector< FieldVector< K, SIZE > >::find ( size_type i ) const

inlineconstexprinherited

return iterator to given element or end()

◆ front() [1/2]

constexpr value_type & Dune::DenseVector< FieldVector< K, SIZE > >::front ( )

inlineconstexprinherited

return reference to first element

◆ front() [2/2]

constexpr const value_type & Dune::DenseVector< FieldVector< K, SIZE > >::front ( ) const

inlineconstexprinherited

return reference to first element

◆ infinity_norm() [1/2]

constexpr FieldTraits< vt >::real_type Dune::DenseVector< FieldVector< K, SIZE > >::infinity_norm ( ) const

inlineconstexprinherited

infinity norm (maximum of absolute values of entries)

◆ infinity_norm() [2/2]

constexpr FieldTraits< vt >::real_type Dune::DenseVector< FieldVector< K, SIZE > >::infinity_norm ( ) const

inlineconstexprinherited

infinity norm (maximum of absolute values of entries)

◆ infinity_norm_real() [1/2]

constexpr FieldTraits< vt >::real_type Dune::DenseVector< FieldVector< K, SIZE > >::infinity_norm_real ( ) const

inlineconstexprinherited

simplified infinity norm (uses Manhattan norm for complex values)

◆ infinity_norm_real() [2/2]

constexpr FieldTraits< vt >::real_type Dune::DenseVector< FieldVector< K, SIZE > >::infinity_norm_real ( ) const

inlineconstexprinherited

simplified infinity norm (uses Manhattan norm for complex values)

◆ N()

constexpr size_type Dune::DenseVector< FieldVector< K, SIZE > >::N ( ) const

inlineconstexprinherited

number of blocks in the vector (are of size 1 here)

◆ one_norm()

constexpr FieldTraits< value_type >::real_type Dune::DenseVector< FieldVector< K, SIZE > >::one_norm ( ) const

inlineconstexprinherited

one norm (sum over absolute values of entries)

◆ one_norm_real()

constexpr FieldTraits< value_type >::real_type Dune::DenseVector< FieldVector< K, SIZE > >::one_norm_real ( ) const

inlineconstexprinherited

simplified one norm (uses Manhattan norm for complex values)

◆ operator const_reference()

template<class K , int SIZE>

constexpr Dune::FieldVector< K, SIZE >::operator const_reference ( ) const

inlineconstexprnoexcept

Conversion operator.

◆ operator reference()

template<class K , int SIZE>

constexpr Dune::FieldVector< K, SIZE >::operator reference ( )

inlineconstexprnoexcept

Conversion operator.

◆ operator!=()

constexpr bool Dune::DenseVector< FieldVector< K, SIZE > >::operator!= ( const DenseVector< Other > & x ) const

inlineconstexprinherited

Binary vector incomparison.

◆ operator*()

constexpr PromotionTraits< field_type, typenameDenseVector< Other >::field_type >::PromotedType Dune::DenseVector< FieldVector< K, SIZE > >::operator* ( const DenseVector< Other > & x ) const

inlineconstexprinherited

indefinite vector dot product \(\left (x^T \cdot y \right)\) which corresponds to Petsc's VecTDot

http://www.mcs.anl.gov/petsc/petsc-current/docs/manualpages/Vec/VecTDot.html

Parameters

x	other vector

Returns

◆ operator*=()

constexpr std::enable_if< std::is_convertible< FieldType, field_type >::value, derived_type >::type & Dune::DenseVector< FieldVector< K, SIZE > >::operator*= ( const FieldType & kk )

inlineconstexprinherited

vector space multiplication with scalar

we use enable_if to avoid an ambiguity, if the function parameter can be converted to field_type implicitly. (see FS#1457)

The function is only enabled, if the parameter is directly convertible to field_type.

◆ operator+()

constexpr derived_type Dune::DenseVector< FieldVector< K, SIZE > >::operator+ ( const DenseVector< Other > & b ) const

inlineconstexprinherited

Binary vector addition.

◆ operator+=() [1/2]

constexpr derived_type & Dune::DenseVector< FieldVector< K, SIZE > >::operator+= ( const DenseVector< Other > & x )

inlineconstexprinherited

vector space addition

◆ operator+=() [2/2]

constexpr std::enable_if< std::is_convertible< ValueType, value_type >::value, derived_type >::type & Dune::DenseVector< FieldVector< K, SIZE > >::operator+= ( const ValueType & kk )

inlineconstexprinherited

vector space add scalar to all comps

we use enable_if to avoid an ambiguity, if the function parameter can be converted to value_type implicitly. (see FS#1457)

The function is only enabled, if the parameter is directly convertible to value_type.

◆ operator-() [1/2]

constexpr derived_type Dune::DenseVector< FieldVector< K, SIZE > >::operator- ( ) const

inlineconstexprinherited

Vector negation.

◆ operator-() [2/2]

constexpr derived_type Dune::DenseVector< FieldVector< K, SIZE > >::operator- ( const DenseVector< Other > & b ) const

inlineconstexprinherited

Binary vector subtraction.

◆ operator-=() [1/2]

constexpr derived_type & Dune::DenseVector< FieldVector< K, SIZE > >::operator-= ( const DenseVector< Other > & x )

inlineconstexprinherited

vector space subtraction

◆ operator-=() [2/2]

constexpr std::enable_if< std::is_convertible< ValueType, value_type >::value, derived_type >::type & Dune::DenseVector< FieldVector< K, SIZE > >::operator-= ( const ValueType & kk )

inlineconstexprinherited

vector space subtract scalar from all comps

we use enable_if to avoid an ambiguity, if the function parameter can be converted to value_type implicitly. (see FS#1457)

The function is only enabled, if the parameter is directly convertible to value_type.

◆ operator/=()

constexpr std::enable_if< std::is_convertible< FieldType, field_type >::value, derived_type >::type & Dune::DenseVector< FieldVector< K, SIZE > >::operator/= ( const FieldType & kk )

inlineconstexprinherited

vector space division by scalar

we use enable_if to avoid an ambiguity, if the function parameter can be converted to field_type implicitly. (see FS#1457)

The function is only enabled, if the parameter is directly convertible to field_type.

◆ operator=() [1/4]

template<class K , int SIZE>

template<class V >
requires (IsFieldVectorSizeCorrect<V,SIZE>::value && std::is_assignable_v<K&, decltype(std::declval<const V&>()[0])>)

constexpr FieldVector & Dune::FieldVector< K, SIZE >::operator= ( const DenseVector< V > & x )

inlineconstexpr

Assignment from another dense vector.

◆ operator=() [2/4]

template<class K , int SIZE>

constexpr FieldVector & Dune::FieldVector< K, SIZE >::operator= ( const FieldVector< K, SIZE > & )

constexprdefault

Copy assignment operator with default behavior.

◆ operator=() [3/4]

template<class K , int SIZE>

template<class OtherK >
requires (std::is_assignable_v<K&, const OtherK&>)

constexpr FieldVector & Dune::FieldVector< K, SIZE >::operator= ( const FieldVector< OtherK, SIZE > & x )

inlineconstexprnoexcept

Converting assignment operator from FieldVector with different element type.

◆ operator=() [4/4]

template<class K , int SIZE>

template<Concept::Number S>
requires std::constructible_from<K,S>

constexpr FieldVector & Dune::FieldVector< K, SIZE >::operator= ( const S & scalar )

inlineconstexprnoexcept

Assignment operator from scalar.

◆ operator==()

constexpr bool Dune::DenseVector< FieldVector< K, SIZE > >::operator== ( const DenseVector< Other > & x ) const

inlineconstexprinherited

Binary vector comparison.

◆ operator[]() [1/2]

template<class K , int SIZE>

constexpr reference Dune::FieldVector< K, SIZE >::operator[] ( size_type i )

inlineconstexpr

Return a reference to the ith element.

Exceptions

RangeError if index i is out of range [0,SIZE) (only checked if DUNE_CHECK_BOUNDS is defined).

◆ operator[]() [2/2]

template<class K , int SIZE>

constexpr const_reference Dune::FieldVector< K, SIZE >::operator[] ( size_type i ) const

inlineconstexpr

Return a (const) reference to the ith element.

Exceptions

RangeError if index i is out of range [0,SIZE) (only checked if DUNE_CHECK_BOUNDS is defined).

◆ size() [1/2]

constexpr size_type Dune::DenseVector< FieldVector< K, SIZE > >::size ( ) const

inlineconstexprinherited

size method

◆ size() [2/2]

template<class K , int SIZE>

static constexpr size_type Dune::FieldVector< K, SIZE >::size ( )

inlinestaticconstexprnoexcept

Obtain the number of elements stored in the vector.

◆ two_norm()

constexpr FieldTraits< value_type >::real_type Dune::DenseVector< FieldVector< K, SIZE > >::two_norm ( ) const

inlineconstexprinherited

two norm sqrt(sum over squared values of entries)

◆ two_norm2()

constexpr FieldTraits< value_type >::real_type Dune::DenseVector< FieldVector< K, SIZE > >::two_norm2 ( ) const

inlineconstexprinherited

square of two norm (sum over squared values of entries), need for block recursion

Friends And Related Symbol Documentation

◆ operator* [1/2]

template<class K , int SIZE>

template<Concept::Number S>

constexpr auto operator*	(	const FieldVector< K, SIZE > &	a,
		const S &	b
	)

friend

Vector space multiplication with scalar.

◆ operator* [2/2]

template<class K , int SIZE>

template<Concept::Number S>

constexpr auto operator*	(	const S &	a,
		const FieldVector< K, SIZE > &	b
	)

friend

Vector space multiplication with scalar.

◆ operator+ [1/2]

template<class K , int SIZE>

template<Concept::Number S>
requires (SIZE == 1)

constexpr auto operator+	(	const FieldVector< K, SIZE > &	a,
		const S &	b
	)

friend

Binary addition, when using FieldVector<K,1> like K.

◆ operator+ [2/2]

template<class K , int SIZE>

template<Concept::Number S>
requires (SIZE == 1)

constexpr auto operator+	(	const S &	a,
		const FieldVector< K, SIZE > &	b
	)

friend

Binary addition, when using FieldVector<K,1> like K.

◆ operator- [1/2]

template<class K , int SIZE>

template<Concept::Number S>
requires (SIZE == 1)

constexpr auto operator-	(	const FieldVector< K, SIZE > &	a,
		const S &	b
	)

friend

Binary subtraction, when using FieldVector<K,1> like K.

◆ operator- [2/2]

template<class K , int SIZE>

template<Concept::Number S>
requires (SIZE == 1)

constexpr auto operator-	(	const S &	a,
		const FieldVector< K, SIZE > &	b
	)

friend

Binary subtraction, when using FieldVector<K,1> like K.

◆ operator/ [1/2]

template<class K , int SIZE>

template<Concept::Number S>

constexpr auto operator/	(	const FieldVector< K, SIZE > &	a,
		const S &	b
	)

friend

Vector space division by scalar.

◆ operator/ [2/2]

template<class K , int SIZE>

template<Concept::Number S>
requires (SIZE == 1)

constexpr FieldVector operator/	(	const S &	a,
		const FieldVector< K, SIZE > &	b
	)

friend

Binary division, when using FieldVector<K,1> like K.

◆ operator<<()

std::ostream & operator<<	(	std::ostream &	s,
		const DenseVector< FieldVector< K, SIZE > > &	v
	)

Parameters

[in]	s	std :: ostream to write to
[in]	v	DenseVector to write

Returns: the output stream (s)

◆ operator<=> [1/3]

template<class K , int SIZE>

template<class T >
requires (Std::three_way_comparable_with<K,T>)

constexpr auto operator<=>	(	const FieldVector< K, SIZE > &	a,
		const FieldVector< T, SIZE > &	b
	)

friend

three-way comparison of FieldVectors

◆ operator<=> [2/3]

template<class K , int SIZE>

template<Concept::Number S>
requires (SIZE == 1)

constexpr auto operator<=>	(	const FieldVector< K, SIZE > &	a,
		const S &	b
	)

friend

three-way comparison of FieldVectors<1> with scalar

◆ operator<=> [3/3]

template<class K , int SIZE>

template<Concept::Number S>
requires (SIZE == 1)

constexpr auto operator<=>	(	const S &	a,
		const FieldVector< K, SIZE > &	b
	)

friend

three-way comparison of FieldVectors<1> with scalar

◆ operator== [1/2]

template<class K , int SIZE>

template<Concept::Number S>
requires (SIZE == 1)

constexpr bool operator==	(	const FieldVector< K, SIZE > &	a,
		const S &	b
	)

friend

comparing FieldVectors<1> with scalar for equality

◆ operator== [2/2]

template<class K , int SIZE>

template<Concept::Number S>
requires (SIZE == 1)

constexpr bool operator==	(	const S &	a,
		const FieldVector< K, SIZE > &	b
	)

friend

comparing FieldVectors<1> with scalar for equality

Member Data Documentation

◆ blocklevel

constexpr int Dune::DenseVector< FieldVector< K, SIZE > >::blocklevel

staticconstexprinherited

The number of block levels we contain. This is the leaf, that is, 1.

◆ dimension

template<class K , int SIZE>

constexpr int Dune::FieldVector< K, SIZE >::dimension = SIZE

staticconstexpr

The size of this vector.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Friends

Related Symbols

Detailed Description

Member Typedef Documentation

◆ block_type

◆ const_iterator

◆ const_reference

◆ ConstIterator

◆ derived_type

◆ field_type

◆ Iterator

◆ iterator

◆ reference

◆ size_type

◆ value_type

Constructor & Destructor Documentation

◆ FieldVector() [1/5]

◆ FieldVector() [2/5]

◆ FieldVector() [3/5]

◆ FieldVector() [4/5]

◆ FieldVector() [5/5]

Member Function Documentation

◆ axpy()

◆ back() [1/2]

◆ back() [2/2]

◆ beforeBegin() [1/2]

◆ beforeBegin() [2/2]

◆ beforeEnd() [1/2]

◆ beforeEnd() [2/2]

◆ begin() [1/2]

◆ begin() [2/2]

◆ data() [1/2]

◆ data() [2/2]

◆ dim()

◆ dot()

◆ empty()

◆ end() [1/2]

◆ end() [2/2]

◆ explicit() [1/2]

◆ explicit() [2/2]

◆ find() [1/2]

◆ find() [2/2]

◆ front() [1/2]

◆ front() [2/2]

◆ infinity_norm() [1/2]

◆ infinity_norm() [2/2]

◆ infinity_norm_real() [1/2]

◆ infinity_norm_real() [2/2]

◆ N()

◆ one_norm()

◆ one_norm_real()

◆ operator const_reference()

◆ operator reference()

◆ operator!=()

◆ operator*()

◆ operator*=()

◆ operator+()

◆ operator+=() [1/2]

◆ operator+=() [2/2]

◆ operator-() [1/2]

◆ operator-() [2/2]

◆ operator-=() [1/2]

◆ operator-=() [2/2]

◆ operator/=()

◆ operator=() [1/4]

◆ operator=() [2/4]

◆ operator=() [3/4]

◆ operator=() [4/4]

◆ operator==()

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ size() [1/2]

◆ size() [2/2]

◆ two_norm()

◆ two_norm2()

Friends And Related Symbol Documentation
