DarcyVelocityFromHeadCCFV< T, PL > Class Template Reference

Provide velocity field for liquid phase. More...

#include <dune/pdelab/localoperator/darcyccfv.hh>

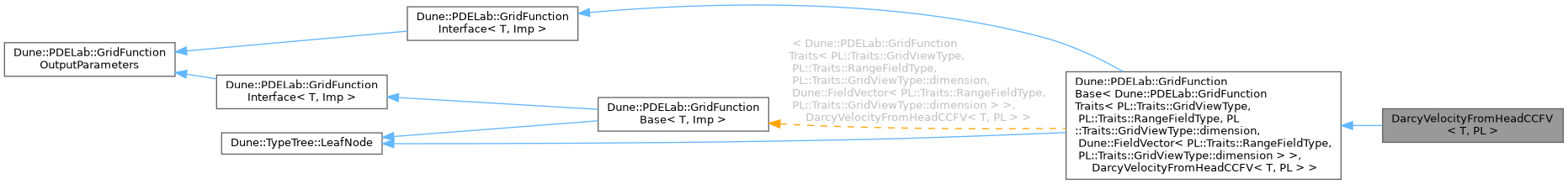

Inheritance diagram for DarcyVelocityFromHeadCCFV< T, PL >:

Public Types
using	Traits = Dune::PDELab::GridFunctionTraits< GV, RF, dim, Dune::FieldVector< RF, dim > >
using	BaseT = Dune::PDELab::GridFunctionBase< Traits, DarcyVelocityFromHeadCCFV< T, PL > >
typedef GridFunctionTag	ImplementationTag
typedef T::GridViewType	GridViewType
	Type of the GridView.
using	Output = typename Base::Output
typedef LeafNodeTag	NodeTag

Public Member Functions
	DarcyVelocityFromHeadCCFV (const T &t_, const PL &pl_)
void	set_time (typename T::Traits::RangeFieldType time_)
void	evaluate (const typename Traits::ElementType &e, const typename Traits::DomainType &x, typename Traits::RangeType &y) const
const Traits::GridViewType &	getGridView () const
void	evaluate (const typename Traits::ElementType &e, const typename Traits::DomainType &x, typename Traits::RangeType &y) const
	Evaluate the GridFunction at given position.
Output::DataSetType	dataSetType () const
	Return the data set type of this function.
void	setDataSetType (Output::DataSetType dataSetType)
	Set the data set type of this function.

Static Public Member Functions
static constexpr auto	degree ()

Static Public Attributes
static const bool	isLeaf
static const bool	isPower
static const bool	isComposite

Detailed Description

template<typename T, typename PL>
class DarcyVelocityFromHeadCCFV< T, PL >

Provide velocity field for liquid phase.

Uses RT0 interpolation on a cell.

• T : provides TwoPhaseParameterInterface
• PL : P0 function for liquid phase pressure

Member Typedef Documentation

BaseT

template<typename T , typename PL >

using DarcyVelocityFromHeadCCFV< T, PL >::BaseT = Dune::PDELab::GridFunctionBase<Traits,DarcyVelocityFromHeadCCFV<T,PL> >

GridViewType

typedef T::GridViewType Dune::PDELab::GridFunctionBase< Dune::PDELab::GridFunctionTraits< PL::Traits::GridViewType, PL::Traits::RangeFieldType, PL::Traits::GridViewType::dimension, Dune::FieldVector< PL::Traits::RangeFieldType, PL::Traits::GridViewType::dimension > > , DarcyVelocityFromHeadCCFV< T, PL > >::GridViewType

inherited

Type of the GridView.

ImplementationTag

typedef GridFunctionTag Dune::PDELab::GridFunctionBase< Dune::PDELab::GridFunctionTraits< PL::Traits::GridViewType, PL::Traits::RangeFieldType, PL::Traits::GridViewType::dimension, Dune::FieldVector< PL::Traits::RangeFieldType, PL::Traits::GridViewType::dimension > > , DarcyVelocityFromHeadCCFV< T, PL > >::ImplementationTag

inherited

Output

using Dune::PDELab::GridFunctionBase< Dune::PDELab::GridFunctionTraits< PL::Traits::GridViewType, PL::Traits::RangeFieldType, PL::Traits::GridViewType::dimension, Dune::FieldVector< PL::Traits::RangeFieldType, PL::Traits::GridViewType::dimension > > , DarcyVelocityFromHeadCCFV< T, PL > >::Output = typename Base::Output

inherited

Traits

template<typename T , typename PL >

using DarcyVelocityFromHeadCCFV< T, PL >::Traits = Dune::PDELab::GridFunctionTraits<GV,RF,dim,Dune::FieldVector<RF,dim> >

Constructor & Destructor Documentation

DarcyVelocityFromHeadCCFV()

template<typename T , typename PL >

DarcyVelocityFromHeadCCFV< T, PL >::DarcyVelocityFromHeadCCFV ( const T &  t_, const PL &  pl_  )

inline

Member Function Documentation

dataSetType()

Output::DataSetType Dune::PDELab::GridFunctionOutputParameters::dataSetType ( ) const

inlineinherited

Return the data set type of this function.

evaluate() [1/2]

template<class T , class Imp >

void Dune::PDELab::GridFunctionInterface< T, Imp >::evaluate ( const typename Traits::ElementType &  e, const typename Traits::DomainType &  x, typename Traits::RangeType &  y  ) const

inlineinherited

Evaluate the GridFunction at given position.

Evaluates components of the grid function at the given position and returns these values in a vector.

Parameters

[in]	e	The entity to evaluate on
[in]	x	The position in entity-local coordinates
[out]	y	The result of the evaluation

evaluate() [2/2]

template<typename T , typename PL >

void DarcyVelocityFromHeadCCFV< T, PL >::evaluate ( const typename Traits::ElementType &  e, const typename Traits::DomainType &  x, typename Traits::RangeType &  y  ) const

inline

getGridView()

template<typename T , typename PL >

const Traits::GridViewType & DarcyVelocityFromHeadCCFV< T, PL >::getGridView ( ) const

inline

set_time()

template<typename T , typename PL >

void DarcyVelocityFromHeadCCFV< T, PL >::set_time ( typename T::Traits::RangeFieldType  time_ )

inline

setDataSetType()

void Dune::PDELab::GridFunctionOutputParameters::setDataSetType ( Output::DataSetType  dataSetType )

inlineinherited

Set the data set type of this function.

---

The documentation for this class was generated from the following file:

• darcyccfv.hh
