Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 > Class Template Reference

The local assembler for one step methods. More...

#include <dune/pdelab/gridoperator/onestep/localassembler.hh>

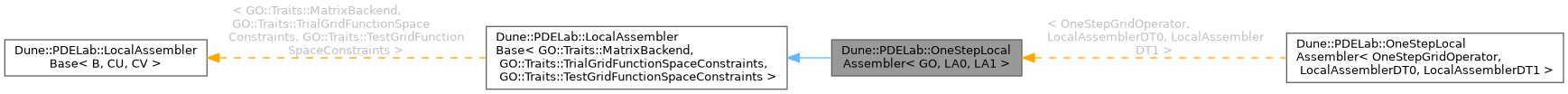

Inheritance diagram for Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >:

Public Types
enum	DTAssemblingMode { DivideOperator1ByDT , MultiplyOperator0ByDT , DoNotAssembleDT }
typedef LA0	LocalAssemblerDT0
	The types of the local assemblers of order one and zero.
typedef LA1	LocalAssemblerDT1
typedef Dune::PDELab::LocalAssemblerTraits< GO >	Traits
typedef Dune::PDELab::LocalAssemblerBase< typename GO::Traits::MatrixBackend, typename GO::Traits::TrialGridFunctionSpaceConstraints, typename GO::Traits::TestGridFunctionSpaceConstraints >	Base
	The base class.
typedef Traits::RangeField	Real
	The local operators type for real numbers e.g. time.
typedef Dune::PDELab::TimeSteppingParameterInterface< Real >	OneStepParameters
	The type of the one step parameter object.
typedef B::size_type	SizeType

Public Member Functions
void	static_checks ()
	OneStepLocalAssembler (LA0 &la0_, LA1 &la1_, typename Traits::Residual &const_residual_)
	Constructor with empty constraints.
void	preStep (Real time_, Real dt_, int stages_)
void	setMethod (const OneStepParameters &method_)
	Set the one step method parameters.
void	setStage (int stage_)
	Set the current stage of the one step scheme.
void	setDTAssemblingMode (DTAssemblingMode dt_mode_)
Real	timeAtStage (int stage_) const
	Access time at given stage.
Real	timeAtStage () const
	Access time at given stage.
void	setWeight (const Real weight)
const GO::Traits::TrialGridFunctionSpaceConstraints &	trialConstraints () const
	get the constraints on the trial grid function space
const GO::Traits::TestGridFunctionSpaceConstraints &	testConstraints () const
	get the constraints on the test grid function space
std::enable_if< AlwaysTrue< X >::value &&!std::is_same< GO::Traits::TestGridFunctionSpaceConstraints, EmptyTransformation >::value >::type	forwardtransform (X &x, const bool postrestrict=false) const
	Transforms a vector \( \boldsymbol{x} \) from \( V\) to \( V'\). If postrestrict == true then \(\boldsymbol{R}^T_{\boldsymbol{\tilde U}', \boldsymbol{U}'} \boldsymbol{S}_{\boldsymbol{\tilde V}}\) is applied instead of the full transformation.
std::enable_if< AlwaysTrue< X >::value &&std::is_same< GO::Traits::TestGridFunctionSpaceConstraints, EmptyTransformation >::value >::type	forwardtransform (X &x, const bool postrestrict=false) const
std::enable_if< AlwaysTrue< X >::value &&!std::is_same< GO::Traits::TestGridFunctionSpaceConstraints, EmptyTransformation >::value >::type	backtransform (X &x, const bool prerestrict=false) const
	Transforms a vector \( \boldsymbol{x} \) from \( V'\) to \( V\). If prerestrict == true then \(\boldsymbol{S}^T_{\boldsymbol{\tilde U}}\) is applied instead of the full transformation.
std::enable_if< AlwaysTrue< X >::value &&std::is_same< GO::Traits::TestGridFunctionSpaceConstraints, EmptyTransformation >::value >::type	backtransform (X &x, const bool prerestrict=false) const
LocalPatternAssemblerEngine &	localPatternAssemblerEngine (typename Traits::MatrixPattern &p)
LocalPreStageAssemblerEngine &	localPreStageAssemblerEngine (const std::vector< typename Traits::Solution * > &x)
LocalResidualAssemblerEngine &	localResidualAssemblerEngine (typename Traits::Residual &r, const typename Traits::Solution &x)
LocalJacobianAssemblerEngine &	localJacobianAssemblerEngine (typename Traits::Jacobian &a, const typename Traits::Solution &x)
LocalExplicitPatternAssemblerEngine &	localExplicitPatternAssemblerEngine (typename Traits::MatrixPattern &p)
LocalExplicitJacobianResidualAssemblerEngine &	localExplicitJacobianResidualAssemblerEngine (typename Traits::Jacobian &a, typename Traits::Residual &r0, typename Traits::Residual &r1, const std::vector< typename Traits::Solution * > &x)
LocalJacobianApplyAssemblerEngine &	localJacobianApplyAssemblerEngine (const typename Traits::Domain &update, typename Traits::Range &result)
LocalJacobianApplyAssemblerEngine &	localJacobianApplyAssemblerEngine (const typename Traits::Domain &solution, const typename Traits::Domain &update, typename Traits::Range &result)

Static Public Member Functions
static constexpr bool	isLinear ()

Protected Member Functions
void	eread (const GCView &globalcontainer_view, LocalMatrix< T > &localcontainer) const
	read local stiffness matrix for entity
void	ewrite (const LocalMatrix< T > &localcontainer, GCView &globalcontainer_view) const
	write local stiffness matrix for entity
void	eadd (const LocalMatrix< T > &localcontainer, GCView &globalcontainer_view) const
	write local stiffness matrix for entity
std::enable_if< AlwaysTrue< M >::value &&!std::is_same< GO::Traits::TestGridFunctionSpaceConstraints, EmptyTransformation >::value >::type	scatter_jacobian (M &local_container, GCView &global_container_view, bool symmetric_mode) const
	Scatter local jacobian to global container.
std::enable_if< AlwaysTrue< M >::value &&std::is_same< GO::Traits::TestGridFunctionSpaceConstraints, EmptyTransformation >::value >::type	scatter_jacobian (M &local_container, GCView &global_container_view, bool symmetric_mode) const
void	etadd_symmetric (M &localcontainer, GCView &globalcontainer_view) const
	Add local matrix to global matrix, and apply Dirichlet constraints in a symmetric fashion. Apart from that, identical to etadd().
void	etadd (const M &localcontainer, GCView &globalcontainer_view) const
std::enable_if< std::is_same< RI, CI >::value >::type	add_diagonal_entry (Pattern &pattern, const RI &ri, const CI &ci) const
std::enable_if<!std::is_same< RI, CI >::value >::type	add_diagonal_entry (Pattern &pattern, const RI &ri, const CI &ci) const
void	add_entry (P &globalpattern, const LFSVIndices &lfsv_indices, Index i, const LFSUIndices &lfsu_indices, Index j) const
	Adding matrix entry to pattern with respect to the constraints contributions. This assembles the entries addressed by etadd(..). See the documentation there for more information about the matrix pattern.
void	set_trivial_rows (const GFSV &gfsv, GC &globalcontainer, const C &c) const
	insert dirichlet constraints for row and assemble T^T_U in constrained rows
void	set_trivial_rows (const GFSV &gfsv, GC &globalcontainer, const EmptyTransformation &c) const
void	handle_dirichlet_constraints (const GFSV &gfsv, GC &globalcontainer) const

Protected Attributes
const GO::Traits::TrialGridFunctionSpaceConstraints *	pconstraintsu
const GO::Traits::TestGridFunctionSpaceConstraints *	pconstraintsv

Static Protected Attributes
static GO::Traits::TrialGridFunctionSpaceConstraints	emptyconstraintsu
static GO::Traits::TestGridFunctionSpaceConstraints	emptyconstraintsv
typedef OneStepLocalPatternAssemblerEngine< OneStepLocalAssembler >	LocalPatternAssemblerEngine
typedef OneStepLocalPreStageAssemblerEngine< OneStepLocalAssembler >	LocalPreStageAssemblerEngine
typedef OneStepLocalResidualAssemblerEngine< OneStepLocalAssembler >	LocalResidualAssemblerEngine
typedef OneStepLocalJacobianAssemblerEngine< OneStepLocalAssembler >	LocalJacobianAssemblerEngine
typedef OneStepLocalJacobianApplyAssemblerEngine< OneStepLocalAssembler >	LocalJacobianApplyAssemblerEngine
typedef LA1::LocalPatternAssemblerEngine	LocalExplicitPatternAssemblerEngine
typedef OneStepExplicitLocalJacobianResidualAssemblerEngine< OneStepLocalAssembler >	LocalExplicitJacobianResidualAssemblerEngine
class	OneStepLocalPatternAssemblerEngine< OneStepLocalAssembler >
class	OneStepLocalPreStageAssemblerEngine< OneStepLocalAssembler >
class	OneStepLocalResidualAssemblerEngine< OneStepLocalAssembler >
class	OneStepLocalJacobianAssemblerEngine< OneStepLocalAssembler >
class	OneStepLocalJacobianApplyAssemblerEngine< OneStepLocalAssembler >
class	OneStepExplicitLocalJacobianResidualAssemblerEngine< OneStepLocalAssembler >

Detailed Description

template<typename GO, typename LA0, typename LA1>
class Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >

The local assembler for one step methods.

Template Parameters

LA0	The local assembler for the temporal derivative term of order zero
LA1	The local assembler for the temporal derivative term of order one

Member Typedef Documentation

Base

template<typename GO , typename LA0 , typename LA1 >

typedef Dune::PDELab::LocalAssemblerBase< typename GO::Traits::MatrixBackend, typename GO::Traits::TrialGridFunctionSpaceConstraints, typename GO::Traits::TestGridFunctionSpaceConstraints> Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::Base

The base class.

LocalAssemblerDT0

template<typename GO , typename LA0 , typename LA1 >

typedef LA0 Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::LocalAssemblerDT0

The types of the local assemblers of order one and zero.

LocalAssemblerDT1

template<typename GO , typename LA0 , typename LA1 >

typedef LA1 Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::LocalAssemblerDT1

LocalExplicitJacobianResidualAssemblerEngine

template<typename GO , typename LA0 , typename LA1 >

typedef OneStepExplicitLocalJacobianResidualAssemblerEngine<OneStepLocalAssembler> Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::LocalExplicitJacobianResidualAssemblerEngine

LocalExplicitPatternAssemblerEngine

template<typename GO , typename LA0 , typename LA1 >

typedef LA1::LocalPatternAssemblerEngine Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::LocalExplicitPatternAssemblerEngine

LocalJacobianApplyAssemblerEngine

template<typename GO , typename LA0 , typename LA1 >

typedef OneStepLocalJacobianApplyAssemblerEngine<OneStepLocalAssembler> Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::LocalJacobianApplyAssemblerEngine

LocalJacobianAssemblerEngine

template<typename GO , typename LA0 , typename LA1 >

typedef OneStepLocalJacobianAssemblerEngine<OneStepLocalAssembler> Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::LocalJacobianAssemblerEngine

LocalPatternAssemblerEngine

template<typename GO , typename LA0 , typename LA1 >

typedef OneStepLocalPatternAssemblerEngine<OneStepLocalAssembler> Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::LocalPatternAssemblerEngine

The local assembler engines

LocalPreStageAssemblerEngine

template<typename GO , typename LA0 , typename LA1 >

typedef OneStepLocalPreStageAssemblerEngine<OneStepLocalAssembler> Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::LocalPreStageAssemblerEngine

LocalResidualAssemblerEngine

template<typename GO , typename LA0 , typename LA1 >

typedef OneStepLocalResidualAssemblerEngine<OneStepLocalAssembler> Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::LocalResidualAssemblerEngine

OneStepParameters

template<typename GO , typename LA0 , typename LA1 >

typedef Dune::PDELab::TimeSteppingParameterInterface<Real> Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::OneStepParameters

The type of the one step parameter object.

Real

template<typename GO , typename LA0 , typename LA1 >

typedef Traits::RangeField Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::Real

The local operators type for real numbers e.g. time.

SizeType

typedef B::size_type Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::SizeType

inherited

Traits

template<typename GO , typename LA0 , typename LA1 >

typedef Dune::PDELab::LocalAssemblerTraits<GO> Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::Traits

Member Enumeration Documentation

DTAssemblingMode

template<typename GO , typename LA0 , typename LA1 >

enum Dune::PDELab::OneStepLocalAssembler::DTAssemblingMode

Enumerator
DivideOperator1ByDT
MultiplyOperator0ByDT
DoNotAssembleDT

Constructor & Destructor Documentation

OneStepLocalAssembler()

template<typename GO , typename LA0 , typename LA1 >

Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::OneStepLocalAssembler ( LA0 &  la0_, LA1 &  la1_, typename Traits::Residual &  const_residual_  )

inline

Constructor with empty constraints.

Member Function Documentation

add_diagonal_entry() [1/2]

std::enable_if< std::is_same< RI, CI >::value >::type Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::add_diagonal_entry ( Pattern &  pattern, const RI &  ri, const CI &  ci  ) const

inlineprotectedinherited

add_diagonal_entry() [2/2]

std::enable_if<!std::is_same< RI, CI >::value >::type Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::add_diagonal_entry ( Pattern &  pattern, const RI &  ri, const CI &  ci  ) const

inlineprotectedinherited

add_entry()

void Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::add_entry ( P &  globalpattern, const LFSVIndices &  lfsv_indices, Index  i, const LFSUIndices &  lfsu_indices, Index  j  ) const

inlineprotectedinherited

Adding matrix entry to pattern with respect to the constraints contributions. This assembles the entries addressed by etadd(..). See the documentation there for more information about the matrix pattern.

backtransform() [1/2]

std::enable_if< AlwaysTrue< X >::value &&!std::is_same< GO::Traits::TestGridFunctionSpaceConstraints , EmptyTransformation >::value >::type Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::backtransform ( X &  x, const bool  prerestrict = false  ) const

inlineinherited

Transforms a vector \( \boldsymbol{x} \) from \( V'\) to \( V\). If prerestrict == true then \(\boldsymbol{S}^T_{\boldsymbol{\tilde U}}\) is applied instead of the full transformation.

backtransform() [2/2]

std::enable_if< AlwaysTrue< X >::value &&std::is_same< GO::Traits::TestGridFunctionSpaceConstraints , EmptyTransformation >::value >::type Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::backtransform ( X &  x, const bool  prerestrict = false  ) const

inlineinherited

eadd()

void Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::eadd ( const LocalMatrix< T > &  localcontainer, GCView &  globalcontainer_view  ) const

inlineprotectedinherited

write local stiffness matrix for entity

eread()

void Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::eread ( const GCView &  globalcontainer_view, LocalMatrix< T > &  localcontainer  ) const

inlineprotectedinherited

read local stiffness matrix for entity

etadd()

void Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::etadd ( const M &  localcontainer, GCView &  globalcontainer_view  ) const

inlineprotectedinherited

etadd_symmetric()

void Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::etadd_symmetric ( M &  localcontainer, GCView &  globalcontainer_view  ) const

inlineprotectedinherited

Add local matrix to global matrix, and apply Dirichlet constraints in a symmetric fashion. Apart from that, identical to etadd().

ewrite()

void Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::ewrite ( const LocalMatrix< T > &  localcontainer, GCView &  globalcontainer_view  ) const

inlineprotectedinherited

write local stiffness matrix for entity

forwardtransform() [1/2]

std::enable_if< AlwaysTrue< X >::value &&!std::is_same< GO::Traits::TestGridFunctionSpaceConstraints , EmptyTransformation >::value >::type Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::forwardtransform ( X &  x, const bool  postrestrict = false  ) const

inlineinherited

Transforms a vector \( \boldsymbol{x} \) from \( V\) to \( V'\). If postrestrict == true then \(\boldsymbol{R}^T_{\boldsymbol{\tilde U}', \boldsymbol{U}'} \boldsymbol{S}_{\boldsymbol{\tilde V}}\) is applied instead of the full transformation.

forwardtransform() [2/2]

std::enable_if< AlwaysTrue< X >::value &&std::is_same< GO::Traits::TestGridFunctionSpaceConstraints , EmptyTransformation >::value >::type Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::forwardtransform ( X &  x, const bool  postrestrict = false  ) const

inlineinherited

handle_dirichlet_constraints()

void Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::handle_dirichlet_constraints ( const GFSV &  gfsv, GC &  globalcontainer  ) const

inlineprotectedinherited

isLinear()

template<typename GO , typename LA0 , typename LA1 >

static constexpr bool Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::isLinear ( )

inlinestaticconstexpr

localExplicitJacobianResidualAssemblerEngine()

template<typename GO , typename LA0 , typename LA1 >

LocalExplicitJacobianResidualAssemblerEngine & Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::localExplicitJacobianResidualAssemblerEngine ( typename Traits::Jacobian &  a, typename Traits::Residual &  r0, typename Traits::Residual &  r1, const std::vector< typename Traits::Solution * > &  x  )

inline

Returns a reference to the requested engine. This engine is completely configured and ready to use.

localExplicitPatternAssemblerEngine()

template<typename GO , typename LA0 , typename LA1 >

LocalExplicitPatternAssemblerEngine & Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::localExplicitPatternAssemblerEngine ( typename Traits::MatrixPattern &  p )

inline

Returns a reference to the requested engine. This engine is completely configured and ready to use.

localJacobianApplyAssemblerEngine() [1/2]

template<typename GO , typename LA0 , typename LA1 >

LocalJacobianApplyAssemblerEngine & Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::localJacobianApplyAssemblerEngine ( const typename Traits::Domain &  solution, const typename Traits::Domain &  update, typename Traits::Range &  result  )

inline

Returns a reference to the requested engine. This engine is completely configured and ready to use.

localJacobianApplyAssemblerEngine() [2/2]

template<typename GO , typename LA0 , typename LA1 >

LocalJacobianApplyAssemblerEngine & Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::localJacobianApplyAssemblerEngine ( const typename Traits::Domain &  update, typename Traits::Range &  result  )

inline

Returns a reference to the requested engine. This engine is completely configured and ready to use.

localJacobianAssemblerEngine()

template<typename GO , typename LA0 , typename LA1 >

LocalJacobianAssemblerEngine & Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::localJacobianAssemblerEngine ( typename Traits::Jacobian &  a, const typename Traits::Solution &  x  )

inline

Returns a reference to the requested engine. This engine is completely configured and ready to use.

localPatternAssemblerEngine()

template<typename GO , typename LA0 , typename LA1 >

LocalPatternAssemblerEngine & Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::localPatternAssemblerEngine ( typename Traits::MatrixPattern &  p )

inline

Access methods which provid "ready to use" engines Returns a reference to the requested engine. This engine is completely configured and ready to use.

localPreStageAssemblerEngine()

template<typename GO , typename LA0 , typename LA1 >

LocalPreStageAssemblerEngine & Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::localPreStageAssemblerEngine ( const std::vector< typename Traits::Solution * > &  x )

inline

Returns a reference to the requested engine. This engine is completely configured and ready to use.

localResidualAssemblerEngine()

template<typename GO , typename LA0 , typename LA1 >

LocalResidualAssemblerEngine & Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::localResidualAssemblerEngine ( typename Traits::Residual &  r, const typename Traits::Solution &  x  )

inline

Returns a reference to the requested engine. This engine is completely configured and ready to use.

preStep()

template<typename GO , typename LA0 , typename LA1 >

void Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::preStep ( Real  time_, Real  dt_, int  stages_  )

inline

Notifies the local assembler about the current time of assembling. Should be called before assembling if the local operator has time dependencies.

scatter_jacobian() [1/2]

std::enable_if< AlwaysTrue< M >::value &&!std::is_same< GO::Traits::TestGridFunctionSpaceConstraints , EmptyTransformation >::value >::type Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::scatter_jacobian ( M &  local_container, GCView &  global_container_view, bool  symmetric_mode  ) const

inlineprotectedinherited

Scatter local jacobian to global container.

scatter_jacobian() [2/2]

std::enable_if< AlwaysTrue< M >::value &&std::is_same< GO::Traits::TestGridFunctionSpaceConstraints , EmptyTransformation >::value >::type Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::scatter_jacobian ( M &  local_container, GCView &  global_container_view, bool  symmetric_mode  ) const

inlineprotectedinherited

set_trivial_rows() [1/2]

void Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::set_trivial_rows ( const GFSV &  gfsv, GC &  globalcontainer, const C &  c  ) const

inlineprotectedinherited

insert dirichlet constraints for row and assemble T^T_U in constrained rows

set_trivial_rows() [2/2]

void Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::set_trivial_rows ( const GFSV &  gfsv, GC &  globalcontainer, const EmptyTransformation &  c  ) const

inlineprotectedinherited

setDTAssemblingMode()

template<typename GO , typename LA0 , typename LA1 >

void Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::setDTAssemblingMode ( DTAssemblingMode  dt_mode_ )

inline

Determines whether the time step size is multiplied to the mass term (first order time derivative) or the elliptic term (zero-th order time derivative).

setMethod()

template<typename GO , typename LA0 , typename LA1 >

void Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::setMethod ( const OneStepParameters &  method_ )

inline

Set the one step method parameters.

setStage()

template<typename GO , typename LA0 , typename LA1 >

void Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::setStage ( int  stage_ )

inline

Set the current stage of the one step scheme.

setWeight()

template<typename GO , typename LA0 , typename LA1 >

void Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::setWeight ( const Real  weight )

inline

static_checks()

template<typename GO , typename LA0 , typename LA1 >

void Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::static_checks ( )

inline

testConstraints()

const GO::Traits::TestGridFunctionSpaceConstraints & Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::testConstraints ( ) const

inlineinherited

get the constraints on the test grid function space

timeAtStage() [1/2]

template<typename GO , typename LA0 , typename LA1 >

Real Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::timeAtStage ( ) const

inline

Access time at given stage.

timeAtStage() [2/2]

template<typename GO , typename LA0 , typename LA1 >

Real Dune::PDELab::OneStepLocalAssembler< GO, LA0, LA1 >::timeAtStage ( int  stage_ ) const

inline

Access time at given stage.

trialConstraints()

const GO::Traits::TrialGridFunctionSpaceConstraints & Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::trialConstraints ( ) const

inlineinherited

get the constraints on the trial grid function space

Friends And Related Symbol Documentation

OneStepExplicitLocalJacobianResidualAssemblerEngine< OneStepLocalAssembler >

template<typename GO , typename LA0 , typename LA1 >

friend class OneStepExplicitLocalJacobianResidualAssemblerEngine< OneStepLocalAssembler >

friend

OneStepLocalJacobianApplyAssemblerEngine< OneStepLocalAssembler >

template<typename GO , typename LA0 , typename LA1 >

friend class OneStepLocalJacobianApplyAssemblerEngine< OneStepLocalAssembler >

friend

OneStepLocalJacobianAssemblerEngine< OneStepLocalAssembler >

template<typename GO , typename LA0 , typename LA1 >

friend class OneStepLocalJacobianAssemblerEngine< OneStepLocalAssembler >

friend

OneStepLocalPatternAssemblerEngine< OneStepLocalAssembler >

template<typename GO , typename LA0 , typename LA1 >

friend class OneStepLocalPatternAssemblerEngine< OneStepLocalAssembler >

friend

OneStepLocalPreStageAssemblerEngine< OneStepLocalAssembler >

template<typename GO , typename LA0 , typename LA1 >

friend class OneStepLocalPreStageAssemblerEngine< OneStepLocalAssembler >

friend

OneStepLocalResidualAssemblerEngine< OneStepLocalAssembler >

template<typename GO , typename LA0 , typename LA1 >

friend class OneStepLocalResidualAssemblerEngine< OneStepLocalAssembler >

friend

Member Data Documentation

emptyconstraintsu

GO::Traits::TrialGridFunctionSpaceConstraints Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::emptyconstraintsu

staticprotectedinherited

emptyconstraintsv

GO::Traits::TestGridFunctionSpaceConstraints Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::emptyconstraintsv

staticprotectedinherited

pconstraintsu

const GO::Traits::TrialGridFunctionSpaceConstraints * Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::pconstraintsu

protectedinherited

pconstraintsv

const GO::Traits::TestGridFunctionSpaceConstraints * Dune::PDELab::LocalAssemblerBase< GO::Traits::MatrixBackend , GO::Traits::TrialGridFunctionSpaceConstraints , GO::Traits::TestGridFunctionSpaceConstraints >::pconstraintsv

protectedinherited

---

The documentation for this class was generated from the following file:

• onestep/localassembler.hh
