Dune::PDELab::DiscreteGridFunctionCurl< T, X > Class Template Reference

convert a grid function space and a coefficient vector into a grid function of the curl More...

#include <dune/pdelab/gridfunctionspace/gridfunctionspaceutilities.hh>

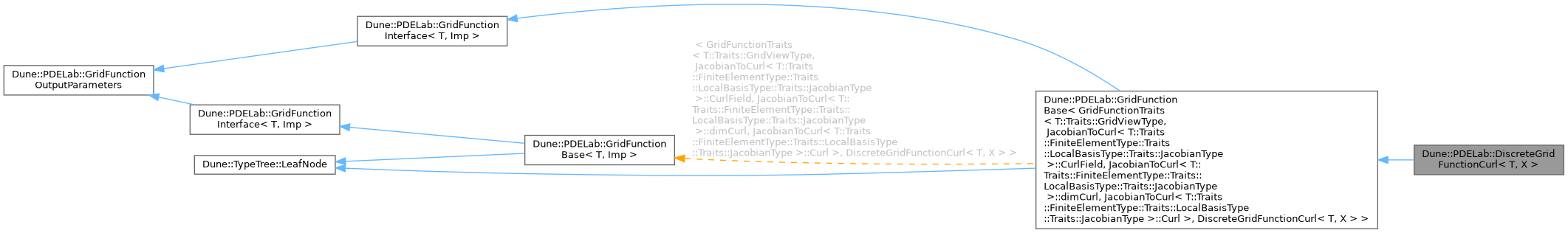

Inheritance diagram for Dune::PDELab::DiscreteGridFunctionCurl< T, X >:

Public Types
typedef GridFunctionTraits< typename T::Traits::GridViewType, typename J2C::CurlField, J2C::dimCurl, typename J2C::Curl >	Traits
typedef GridFunctionTag	ImplementationTag
typedef T::GridViewType	GridViewType
	Type of the GridView.
using	Output = typename Base::Output
typedef LeafNodeTag	NodeTag

Public Member Functions
	DiscreteGridFunctionCurl (const GFS &gfs, const X &x_)
	Construct a DiscreteGridFunctionCurl.
	DiscreteGridFunctionCurl (std::shared_ptr< const GFS > gfs, std::shared_ptr< const X > x_)
	Construct a DiscreteGridFunctionCurl.
void	evaluate (const typename Traits::ElementType &e, const typename Traits::DomainType &x, typename Traits::RangeType &y) const
const Traits::GridViewType &	getGridView () const
	get a reference to the GridView
void	evaluate (const typename Traits::ElementType &e, const typename Traits::DomainType &x, typename Traits::RangeType &y) const
	Evaluate the GridFunction at given position.
Output::DataSetType	dataSetType () const
	Return the data set type of this function.
void	setDataSetType (Output::DataSetType dataSetType)
	Set the data set type of this function.

Static Public Member Functions
static constexpr auto	degree ()

Static Public Attributes
static const bool	isLeaf
static const bool	isPower
static const bool	isComposite

Detailed Description

template<typename T, typename X>
class Dune::PDELab::DiscreteGridFunctionCurl< T, X >

convert a grid function space and a coefficient vector into a grid function of the curl

This class works only with a GridFunctionSpace with finite elements using the new global-valued interface.

Template Parameters

T	Type of GridFunctionSpace
X	Type of coefficients vector

Member Typedef Documentation

GridViewType

typedef T::GridViewType Dune::PDELab::GridFunctionBase< GridFunctionTraits< T::Traits::GridViewType, JacobianToCurl< T::Traits::FiniteElementType::Traits::LocalBasisType::Traits::JacobianType >::CurlField, JacobianToCurl< T::Traits::FiniteElementType::Traits::LocalBasisType::Traits::JacobianType >::dimCurl, JacobianToCurl< T::Traits::FiniteElementType::Traits::LocalBasisType::Traits::JacobianType >::Curl > , DiscreteGridFunctionCurl< T, X > >::GridViewType

inherited

Type of the GridView.

ImplementationTag

typedef GridFunctionTag Dune::PDELab::GridFunctionBase< GridFunctionTraits< T::Traits::GridViewType, JacobianToCurl< T::Traits::FiniteElementType::Traits::LocalBasisType::Traits::JacobianType >::CurlField, JacobianToCurl< T::Traits::FiniteElementType::Traits::LocalBasisType::Traits::JacobianType >::dimCurl, JacobianToCurl< T::Traits::FiniteElementType::Traits::LocalBasisType::Traits::JacobianType >::Curl > , DiscreteGridFunctionCurl< T, X > >::ImplementationTag

inherited

Output

using Dune::PDELab::GridFunctionBase< GridFunctionTraits< T::Traits::GridViewType, JacobianToCurl< T::Traits::FiniteElementType::Traits::LocalBasisType::Traits::JacobianType >::CurlField, JacobianToCurl< T::Traits::FiniteElementType::Traits::LocalBasisType::Traits::JacobianType >::dimCurl, JacobianToCurl< T::Traits::FiniteElementType::Traits::LocalBasisType::Traits::JacobianType >::Curl > , DiscreteGridFunctionCurl< T, X > >::Output = typename Base::Output

inherited

Traits

template<typename T , typename X >

typedef GridFunctionTraits< typename T::Traits::GridViewType, typename J2C::CurlField, J2C::dimCurl, typename J2C::Curl > Dune::PDELab::DiscreteGridFunctionCurl< T, X >::Traits

Constructor & Destructor Documentation

DiscreteGridFunctionCurl() [1/2]

template<typename T , typename X >

Dune::PDELab::DiscreteGridFunctionCurl< T, X >::DiscreteGridFunctionCurl ( const GFS &  gfs, const X &  x_  )

inline

Construct a DiscreteGridFunctionCurl.

Parameters

gfs	The GridFunctionsSpace
x_	The coefficients vector

DiscreteGridFunctionCurl() [2/2]

template<typename T , typename X >

Dune::PDELab::DiscreteGridFunctionCurl< T, X >::DiscreteGridFunctionCurl ( std::shared_ptr< const GFS >  gfs, std::shared_ptr< const X >  x_  )

inline

Construct a DiscreteGridFunctionCurl.

Parameters

gfs	shared pointer to the GridFunctionsSpace
x_	shared pointer to the coefficients vector

Member Function Documentation

dataSetType()

Output::DataSetType Dune::PDELab::GridFunctionOutputParameters::dataSetType ( ) const

inlineinherited

Return the data set type of this function.

evaluate() [1/2]

template<class T , class Imp >

void Dune::PDELab::GridFunctionInterface< T, Imp >::evaluate ( const typename Traits::ElementType &  e, const typename Traits::DomainType &  x, typename Traits::RangeType &  y  ) const

inlineinherited

Evaluate the GridFunction at given position.

Evaluates components of the grid function at the given position and returns these values in a vector.

Parameters

[in]	e	The entity to evaluate on
[in]	x	The position in entity-local coordinates
[out]	y	The result of the evaluation

evaluate() [2/2]

template<typename T , typename X >

void Dune::PDELab::DiscreteGridFunctionCurl< T, X >::evaluate ( const typename Traits::ElementType &  e, const typename Traits::DomainType &  x, typename Traits::RangeType &  y  ) const

inline

getGridView()

template<typename T , typename X >

const Traits::GridViewType & Dune::PDELab::DiscreteGridFunctionCurl< T, X >::getGridView ( ) const

inline

get a reference to the GridView

setDataSetType()

void Dune::PDELab::GridFunctionOutputParameters::setDataSetType ( Output::DataSetType  dataSetType )

inlineinherited

Set the data set type of this function.

---

The documentation for this class was generated from the following file:

• gridfunctionspaceutilities.hh
