Dune::PDELab::GFSDataHandle< GFS, V, GatherScatter, CommunicationDescriptor > Class Template Reference

Implement a data handle with a grid function space. More...

#include <dune/pdelab/gridfunctionspace/genericdatahandle.hh>

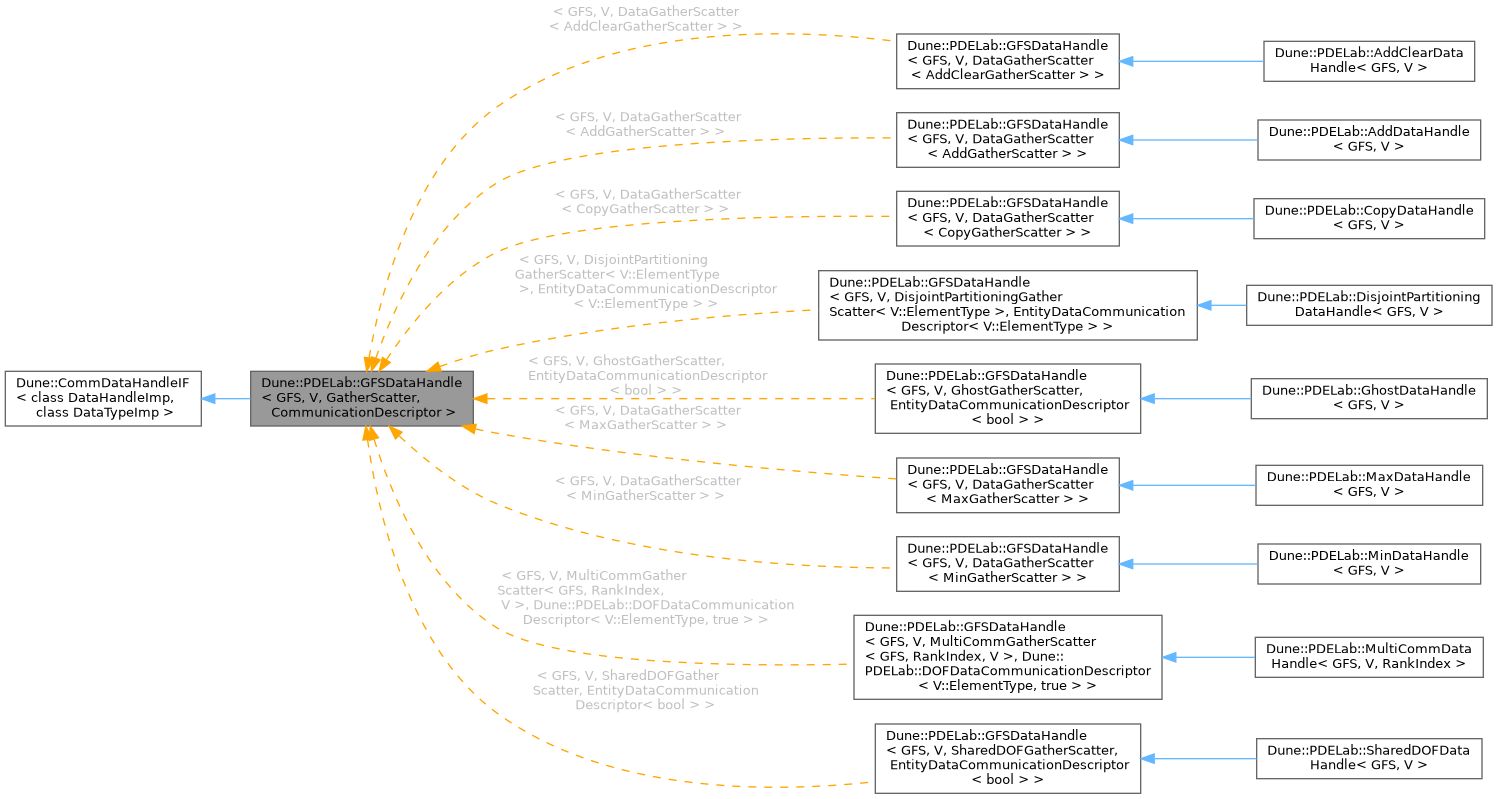

Inheritance diagram for Dune::PDELab::GFSDataHandle< GFS, V, GatherScatter, CommunicationDescriptor >:

Public Types
typedef CommunicationDescriptor::DataType	DataType
typedef GFS::Traits::SizeType	size_type

Public Member Functions
	GFSDataHandle (const GFS &gfs, V &v, GatherScatter gather_scatter=GatherScatter(), CommunicationDescriptor communication_descriptor=CommunicationDescriptor())
bool	contains (int dim, int codim) const
	returns true if data for this codim should be communicated
bool	fixedSize (int dim, int codim) const
	returns true if size per entity of given dim and codim is a constant
template<typename Entity >
size_type	size (const Entity &e) const
	how many objects of type DataType have to be sent for a given entity
template<typename MessageBuffer , typename Entity >
std::enable_if< CommunicationDescriptor::wrap_buffer &&AlwaysTrue< Entity >::value >::type	gather (MessageBuffer &buff, const Entity &e) const
	pack data from user to message buffer - version with support for sending leaf ordering sizes
template<typename MessageBuffer , typename Entity >
std::enable_if<!CommunicationDescriptor::wrap_buffer &&AlwaysTrue< Entity >::value >::type	gather (MessageBuffer &buff, const Entity &e) const
	pack data from user to message buffer - version without support for sending leaf ordering sizes
template<typename MessageBuffer , typename Entity >
std::enable_if< CommunicationDescriptor::wrap_buffer &&AlwaysTrue< Entity >::value >::type	scatter (MessageBuffer &buff, const Entity &e, size_type n)
	unpack data from message buffer to user
template<typename MessageBuffer , typename Entity >
std::enable_if<!CommunicationDescriptor::wrap_buffer &&AlwaysTrue< Entity >::value >::type	scatter (MessageBuffer &buff, const Entity &e, size_type n)
	unpack data from message buffer to user
size_t	size (const EntityType &e) const
void	gather (MessageBufferImp &buff, const EntityType &e) const
void	scatter (MessageBufferImp &buff, const EntityType &e, size_t n)

Static Public Attributes
static const size_type	leaf_count = TypeTree::TreeInfo<typename GFS::Ordering>::leafCount

Detailed Description

template<typename GFS, typename V, typename GatherScatter, typename CommunicationDescriptor = DOFDataCommunicationDescriptor<typename V::ElementType>>
class Dune::PDELab::GFSDataHandle< GFS, V, GatherScatter, CommunicationDescriptor >

Implement a data handle with a grid function space.

Template Parameters

GFS	a grid function space
V	a vector container associated with the GFS
GatherScatter	gather/scatter methods with argumemts buffer, and data
CommunicationDescriptor	A descriptor for the communication structure

Member Typedef Documentation

DataType

template<typename GFS , typename V , typename GatherScatter , typename CommunicationDescriptor = DOFDataCommunicationDescriptor<typename V::ElementType>>

typedef CommunicationDescriptor::DataType Dune::PDELab::GFSDataHandle< GFS, V, GatherScatter, CommunicationDescriptor >::DataType

size_type

template<typename GFS , typename V , typename GatherScatter , typename CommunicationDescriptor = DOFDataCommunicationDescriptor<typename V::ElementType>>

typedef GFS::Traits::SizeType Dune::PDELab::GFSDataHandle< GFS, V, GatherScatter, CommunicationDescriptor >::size_type

Constructor & Destructor Documentation

GFSDataHandle()

template<typename GFS , typename V , typename GatherScatter , typename CommunicationDescriptor = DOFDataCommunicationDescriptor<typename V::ElementType>>

Dune::PDELab::GFSDataHandle< GFS, V, GatherScatter, CommunicationDescriptor >::GFSDataHandle ( const GFS &  gfs, V &  v, GatherScatter  gather_scatter = GatherScatter(), CommunicationDescriptor  communication_descriptor = CommunicationDescriptor()  )

inline

Member Function Documentation

contains()

template<typename GFS , typename V , typename GatherScatter , typename CommunicationDescriptor = DOFDataCommunicationDescriptor<typename V::ElementType>>

bool Dune::PDELab::GFSDataHandle< GFS, V, GatherScatter, CommunicationDescriptor >::contains ( int  dim, int  codim  ) const

inline

returns true if data for this codim should be communicated

fixedSize()

template<typename GFS , typename V , typename GatherScatter , typename CommunicationDescriptor = DOFDataCommunicationDescriptor<typename V::ElementType>>

bool Dune::PDELab::GFSDataHandle< GFS, V, GatherScatter, CommunicationDescriptor >::fixedSize ( int  dim, int  codim  ) const

inline

returns true if size per entity of given dim and codim is a constant

gather() [1/2]

template<typename GFS , typename V , typename GatherScatter , typename CommunicationDescriptor = DOFDataCommunicationDescriptor<typename V::ElementType>>

template<typename MessageBuffer , typename Entity >

std::enable_if< CommunicationDescriptor::wrap_buffer &&AlwaysTrue< Entity >::value >::type Dune::PDELab::GFSDataHandle< GFS, V, GatherScatter, CommunicationDescriptor >::gather ( MessageBuffer &  buff, const Entity &  e  ) const

inline

pack data from user to message buffer - version with support for sending leaf ordering sizes

gather() [2/2]

template<typename GFS , typename V , typename GatherScatter , typename CommunicationDescriptor = DOFDataCommunicationDescriptor<typename V::ElementType>>

template<typename MessageBuffer , typename Entity >

std::enable_if<!CommunicationDescriptor::wrap_buffer &&AlwaysTrue< Entity >::value >::type Dune::PDELab::GFSDataHandle< GFS, V, GatherScatter, CommunicationDescriptor >::gather ( MessageBuffer &  buff, const Entity &  e  ) const

inline

pack data from user to message buffer - version without support for sending leaf ordering sizes

scatter() [1/2]

template<typename GFS , typename V , typename GatherScatter , typename CommunicationDescriptor = DOFDataCommunicationDescriptor<typename V::ElementType>>

template<typename MessageBuffer , typename Entity >

std::enable_if< CommunicationDescriptor::wrap_buffer &&AlwaysTrue< Entity >::value >::type Dune::PDELab::GFSDataHandle< GFS, V, GatherScatter, CommunicationDescriptor >::scatter ( MessageBuffer &  buff, const Entity &  e, size_type  n  )

inline

unpack data from message buffer to user

n is the number of objects sent by the sender

This is the version with support for receiving leaf ordering sizes

scatter() [2/2]

template<typename GFS , typename V , typename GatherScatter , typename CommunicationDescriptor = DOFDataCommunicationDescriptor<typename V::ElementType>>

template<typename MessageBuffer , typename Entity >

std::enable_if<!CommunicationDescriptor::wrap_buffer &&AlwaysTrue< Entity >::value >::type Dune::PDELab::GFSDataHandle< GFS, V, GatherScatter, CommunicationDescriptor >::scatter ( MessageBuffer &  buff, const Entity &  e, size_type  n  )

inline

unpack data from message buffer to user

n is the number of objects sent by the sender

This is the version without support for receiving leaf ordering sizes

size()

template<typename GFS , typename V , typename GatherScatter , typename CommunicationDescriptor = DOFDataCommunicationDescriptor<typename V::ElementType>>

template<typename Entity >

size_type Dune::PDELab::GFSDataHandle< GFS, V, GatherScatter, CommunicationDescriptor >::size ( const Entity &  e ) const

inline

how many objects of type DataType have to be sent for a given entity

Note: Only the sender side needs to know this size.

Member Data Documentation

leaf_count

template<typename GFS , typename V , typename GatherScatter , typename CommunicationDescriptor = DOFDataCommunicationDescriptor<typename V::ElementType>>

const size_type Dune::PDELab::GFSDataHandle< GFS, V, GatherScatter, CommunicationDescriptor >::leaf_count = TypeTree::TreeInfo<typename GFS::Ordering>::leafCount

static

---

The documentation for this class was generated from the following file:

• genericdatahandle.hh
