An intersection that forms part of the interface between two subdomains. More...

#include <dune/grid/multidomaingrid/subdomaininterfaceiterator.hh>

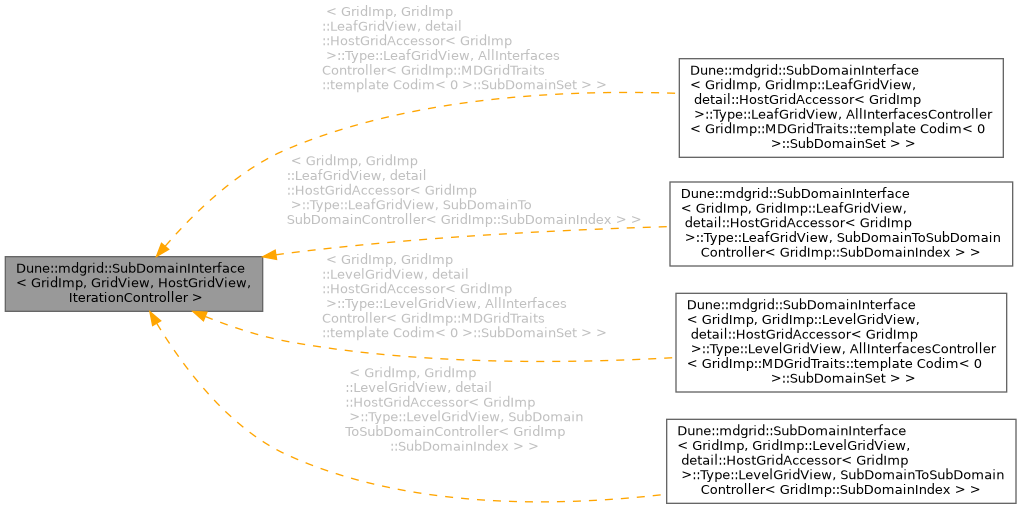

Inheritance diagram for Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >:

Public Types
typedef GridImp::ctype	ctype

typedef GridImp::SubDomainIndex	SubDomainIndex

typedef GridImp::Traits::template Codim< 0 >::Entity	Entity

typedef GridImp::Traits::template Codim< 1 >::Geometry	Geometry

typedef GridImp::Traits::template Codim< 1 >::LocalGeometry	LocalGeometry

Public Member Functions
bool	operator== (const SubDomainInterface &rhs) const

SubDomainInterface-specific interface methods
Entity	firstCell () const
	Returns the entity of the corresponding cell in the first subdomain.

Entity	secondCell () const
	Returns the entity of the corresponding cell in the second subdomain.

LocalGeometry	geometryInFirstCell () const
	Returns the local geometry in the corresponding cell of the first subdomain.

LocalGeometry	geometryInSecondCell () const
	Returns the local geometry in the corresponding cell of the second subdomain.

int	indexInFirstCell () const

int	indexInSecondCell () const

GlobalCoords	firstOuterNormal (const LocalCoords &local) const

GlobalCoords	firstIntegrationOuterNormal (const LocalCoords &local) const

GlobalCoords	firstUnitOuterNormal (const LocalCoords &local) const

GlobalCoords	secondOuterNormal (const LocalCoords &local) const

GlobalCoords	secondIntegrationOuterNormal (const LocalCoords &local) const

GlobalCoords	secondUnitOuterNormal (const LocalCoords &local) const

MultiDomainIntersectionIterator	secondMultiDomainIntersectionIterator () const
	Returns a standard Dune IntersectionIterator for the current intersection, but with inside and outside flipped.

MultiDomainIntersectionIterator	firstMultiDomainIntersectionIterator () const
	Returns a standard Dune IntersectionIterator for the current intersection.

SubDomainIndex	subDomain1 () const
	Returns the index of the subdomain the first (inside) cell belongs to.

SubDomainIndex	subDomain2 () const
	Returns the index of the subdomain the second (outside) cell belongs to.

Static Public Attributes
static const int	dimension = GridImp::dimension

static const int	dimensionworld = GridImp::dimensionworld

Friends
template<typename >
class	SubDomainToSubDomainController

template<typename >
class	AllInterfacesController

template<typename , typename , typename , typename >
class	SubDomainInterfaceIterator

Standard Dune Intersection interface methods
Entity	inside () const
	Returns the entity of the corresponding cell in the first subdomain.

Entity	outside () const
	Returns the entity of the corresponding cell in the second subdomain.

bool	conforming () const
	Returns true if this intersection is conforming.

LocalGeometry	geometryInInside () const
	Returns the local geometry in the corresponding cell of the first subdomain.

LocalGeometry	geometryInOutside () const
	Returns the local geometry in the corresponding cell of the second subdomain.

Geometry	geometry () const
	Returns the global geometry of the intersection.

GeometryType	type () const
	Returns the GeometryType of this intersection.

int	indexInInside () const

int	indexInOutside () const

SubDomainIndex	subDomainInInside () const
	Returns the index of the subdomain the first (inside) cell belongs to.

SubDomainIndex	subDomainInOutside () const
	Returns the index of the subdomain the second (outside) cell belongs to.

GlobalCoords	outerNormal (const LocalCoords &local) const

GlobalCoords	integrationOuterNormal (const LocalCoords &local) const

GlobalCoords	unitOuterNormal (const LocalCoords &local) const

Detailed Description

template<typename GridImp, typename GridView, typename HostGridView, typename IterationController>
class Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >

An intersection that forms part of the interface between two subdomains.

Member Typedef Documentation

◆ ctype

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

typedef GridImp::ctype Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::ctype

◆ Entity

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

typedef GridImp::Traits::template Codim<0>::Entity Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::Entity

◆ Geometry

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

typedef GridImp::Traits::template Codim<1>::Geometry Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::Geometry

◆ LocalGeometry

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

typedef GridImp::Traits::template Codim<1>::LocalGeometry Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::LocalGeometry

◆ SubDomainIndex

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

typedef GridImp::SubDomainIndex Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::SubDomainIndex

Member Function Documentation

◆ conforming()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

bool Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::conforming ( ) const

inline

Returns true if this intersection is conforming.

◆ firstCell()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

Entity Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::firstCell ( ) const

inline

Returns the entity of the corresponding cell in the first subdomain.

◆ firstIntegrationOuterNormal()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

GlobalCoords Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::firstIntegrationOuterNormal ( const LocalCoords & local ) const

inline

◆ firstMultiDomainIntersectionIterator()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

MultiDomainIntersectionIterator Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::firstMultiDomainIntersectionIterator ( ) const

inline

Returns a standard Dune IntersectionIterator for the current intersection.

◆ firstOuterNormal()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

GlobalCoords Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::firstOuterNormal ( const LocalCoords & local ) const

inline

◆ firstUnitOuterNormal()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

GlobalCoords Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::firstUnitOuterNormal ( const LocalCoords & local ) const

inline

◆ geometry()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

Geometry Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::geometry ( ) const

inline

Returns the global geometry of the intersection.

◆ geometryInFirstCell()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

LocalGeometry Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::geometryInFirstCell ( ) const

inline

Returns the local geometry in the corresponding cell of the first subdomain.

◆ geometryInInside()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

LocalGeometry Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::geometryInInside ( ) const

inline

Returns the local geometry in the corresponding cell of the first subdomain.

◆ geometryInOutside()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

LocalGeometry Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::geometryInOutside ( ) const

inline

Returns the local geometry in the corresponding cell of the second subdomain.

◆ geometryInSecondCell()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

LocalGeometry Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::geometryInSecondCell ( ) const

inline

Returns the local geometry in the corresponding cell of the second subdomain.

◆ indexInFirstCell()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

int Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::indexInFirstCell ( ) const

inline

Returns the subindex of the corresponding face in the cell belonging to the first subdomain.

◆ indexInInside()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

int Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::indexInInside ( ) const

inline

Returns the subindex of the corresponding face in the cell belonging to the first subdomain.

◆ indexInOutside()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

int Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::indexInOutside ( ) const

inline

Returns the subindex of the corresponding face in the cell belonging to the second subdomain.

◆ indexInSecondCell()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

int Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::indexInSecondCell ( ) const

inline

Returns the subindex of the corresponding face in the cell belonging to the second subdomain.

◆ inside()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

Entity Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::inside ( ) const

inline

Returns the entity of the corresponding cell in the first subdomain.

◆ integrationOuterNormal()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

GlobalCoords Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::integrationOuterNormal ( const LocalCoords & local ) const

inline

◆ operator==()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

bool Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::operator== ( const SubDomainInterface< GridImp, GridView, HostGridView, IterationController > & rhs ) const

inline

◆ outerNormal()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

GlobalCoords Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::outerNormal ( const LocalCoords & local ) const

inline

◆ outside()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

Entity Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::outside ( ) const

inline

Returns the entity of the corresponding cell in the second subdomain.

◆ secondCell()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

Entity Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::secondCell ( ) const

inline

Returns the entity of the corresponding cell in the second subdomain.

◆ secondIntegrationOuterNormal()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

GlobalCoords Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::secondIntegrationOuterNormal ( const LocalCoords & local ) const

inline

◆ secondMultiDomainIntersectionIterator()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

MultiDomainIntersectionIterator Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::secondMultiDomainIntersectionIterator ( ) const

inline

Returns a standard Dune IntersectionIterator for the current intersection, but with inside and outside flipped.

◆ secondOuterNormal()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

GlobalCoords Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::secondOuterNormal ( const LocalCoords & local ) const

inline

◆ secondUnitOuterNormal()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

GlobalCoords Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::secondUnitOuterNormal ( const LocalCoords & local ) const

inline

◆ subDomain1()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

SubDomainIndex Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::subDomain1 ( ) const

inline

Returns the index of the subdomain the first (inside) cell belongs to.

◆ subDomain2()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

SubDomainIndex Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::subDomain2 ( ) const

inline

Returns the index of the subdomain the second (outside) cell belongs to.

◆ subDomainInInside()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

SubDomainIndex Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::subDomainInInside ( ) const

inline

Returns the index of the subdomain the first (inside) cell belongs to.

Note: This method is equivalent to subDomain1().

◆ subDomainInOutside()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

SubDomainIndex Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::subDomainInOutside ( ) const

inline

Returns the index of the subdomain the second (outside) cell belongs to.

Note: This method is equivalent to subDomain2().

◆ type()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

GeometryType Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::type ( ) const

inline

Returns the GeometryType of this intersection.

◆ unitOuterNormal()

template<typename GridImp , typename GridView , typename HostGridView , typename IterationController >

GlobalCoords Dune::mdgrid::SubDomainInterface< GridImp, GridView, HostGridView, IterationController >::unitOuterNormal ( const LocalCoords & local ) const
