Implementation class for a multiple codim and multiple geometry type mapper. More...

#include <dune/grid/multidomaingrid/multidomainmcmgmapper.hh>

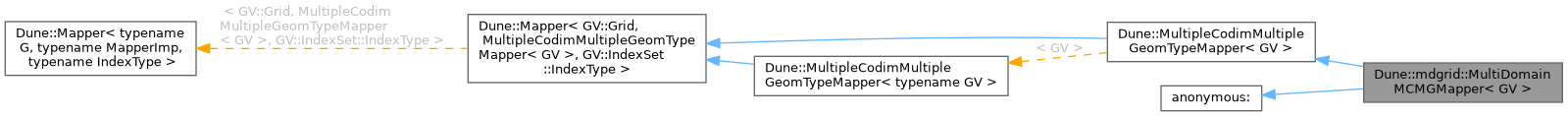

Inheritance diagram for Dune::mdgrid::MultiDomainMCMGMapper< GV >:

Public Types
typedef GV::IndexSet::IndexType	IndexType

typedef GV::Grid::SubDomainIndex	SubDomainIndex

typedef GV	GridView

typedef GV::IndexSet::IndexType	Index

typedef decltype(std::declval< typename GV::IndexSet >().size(0))	size_type

Public Member Functions
	MultiDomainMCMGMapper (const GV &gv, const MCMGLayout &layout)

	MultiDomainMCMGMapper (const GV &gv)
	Construct mapper from grid and one of its index sets.

template<class EntityType >
int	map (SubDomainIndex subDomain, const EntityType &e) const
	Map entity to array index.

int	map (SubDomainIndex subDomain, const typename GV::template Codim< 0 >::Entity &e, int i, unsigned int codim) const
	Map subentity of codim 0 entity to array index.

int	size (SubDomainIndex subDomain) const
	Return total number of entities in the entity set managed by the mapper.

template<class EntityType >
bool	contains (SubDomainIndex subDomain, const EntityType &e, IndexType &result) const
	Returns true if the entity is contained in the index set.

template<int cc>
bool	contains (SubDomainIndex subDomain, const typename GV::template Codim< 0 >::Entity &e, int i, IndexType &result) const
	Returns true if the entity is contained in the index set.

void	update (const GV &gv)
	Recalculates indices after grid adaptation.

Index	index (const EntityType &e) const

Index	subIndex (const typename GV::template Codim< 0 >::Entity &e, int i, unsigned int codim) const

Index	subIndex (const typename G::Traits::template Codim< 0 >::Entity &e, int i, unsigned int codim) const

size_type	size () const

size_type	size (GeometryType gt) const

const std::vector< GeometryType > &	types (int codim) const

IntegralRange< Index >	indices (const EntityType &e) const

IntegralRange< Index >	indices (const typename GV::template Codim< 0 >::Entity &e, int i, int cc) const

bool	contains (const EntityType &e, Index &result) const

bool	contains (const typename GV::template Codim< 0 >::Entity &e, int i, int cc, Index &result) const

bool	contains (const typename G::Traits::template Codim< 0 >::Entity &e, int i, int cc, GV::IndexSet::IndexType &result) const

bool	contains (const EntityType &e, IndexType &result) const

bool	contains (const typename G::Traits::template Codim< 0 >::Entity &e, int i, int cc, IndexType &result) const

void	update (GV &&gridView)

void	update (GridView &&gridView)

const MCMGLayout &	layout () const

const GridView &	gridView () const

Protected Attributes
std::array< std::vector< IndexType >, GV::Grid::maxSubDomainIndex()> _offsets

Detailed Description

template<typename GV>
class Dune::mdgrid::MultiDomainMCMGMapper< GV >

Implementation class for a multiple codim and multiple geometry type mapper.

In this implementation of a mapper the entity set used as domain for the map consists of the entities of a subset of codimensions in the given index set. The index set may contain entities of several geometry types. This version is usually not used directly but is used to implement versions for leafwise and levelwise entity sets.

Template parameters are:

GV: A Dune GridView type.

Layout: A helper class with a method contains(), that returns true for all geometry types that are in the domain of the map. The class should be of the following shape
template<int dim>

struct LayoutClass {

bool contains (Dune::GeometryType gt) const {

// Return true if gt is in the domain of the map

}

};

Dune::mdgrid::setContains
bool setContains(const ArrayBasedSet< SI, capacity > &a, const ArrayBasedSet< SI, capacity > &b)

contains
static bool contains(const Type &attribute)

Dune::GeometryType

If you don't want to use the default constructor of the LayoutClass you can construct it yourself and hand it to the respective constructor.

Member Typedef Documentation

◆ IndexType

template<typename GV >

typedef GV::IndexSet::IndexType Dune::mdgrid::MultiDomainMCMGMapper< GV >::IndexType

◆ SubDomainIndex

template<typename GV >

typedef GV::Grid::SubDomainIndex Dune::mdgrid::MultiDomainMCMGMapper< GV >::SubDomainIndex

Constructor & Destructor Documentation

◆ MultiDomainMCMGMapper() [1/2]

template<typename GV >

Dune::mdgrid::MultiDomainMCMGMapper< GV >::MultiDomainMCMGMapper	(	const GV &	gv,
		const MCMGLayout &	layout
	)

inline

◆ MultiDomainMCMGMapper() [2/2]

template<typename GV >

Dune::mdgrid::MultiDomainMCMGMapper< GV >::MultiDomainMCMGMapper ( const GV & gv )

inline

Construct mapper from grid and one of its index sets.

Parameters

grid	A Dune grid object.
indexset	IndexSet object returned by grid.

Member Function Documentation

◆ contains() [1/2]

template<typename GV >

template<class EntityType >

bool Dune::mdgrid::MultiDomainMCMGMapper< GV >::contains	(	SubDomainIndex	subDomain,
		const EntityType &	e,
		IndexType &	result
	)		const

inline

Returns true if the entity is contained in the index set.

Parameters

e	Reference to entity
result	integer reference where corresponding index is stored if true

Returns: true if entity is in entity set of the mapper

◆ contains() [2/2]

template<typename GV >

template<int cc>

bool Dune::mdgrid::MultiDomainMCMGMapper< GV >::contains	(	SubDomainIndex	subDomain,
		const typename GV::template Codim< 0 >::Entity &	e,
		int	i,
		IndexType &	result
	)		const

inline

Returns true if the entity is contained in the index set.

Parameters

e	Reference to codim 0 entity
i	subentity number
result	integer reference where corresponding index is stored if true

Returns: true if entity is in entity set of the mapper

◆ map() [1/2]

template<typename GV >

template<class EntityType >

int Dune::mdgrid::MultiDomainMCMGMapper< GV >::map	(	SubDomainIndex	subDomain,
		const EntityType &	e
	)		const

inline

Map entity to array index.

Parameters

e	Reference to codim cc entity, where cc is the template parameter of the function.

Returns: An index in the range 0 ... Max number of entities in set - 1.

◆ map() [2/2]

template<typename GV >

int Dune::mdgrid::MultiDomainMCMGMapper< GV >::map	(	SubDomainIndex	subDomain,
		const typename GV::template Codim< 0 >::Entity &	e,
		int	i,
		unsigned int	codim
	)		const

inline

Map subentity of codim 0 entity to array index.

Parameters

e	Reference to codim 0 entity.
i	Number of subentity of e
codim	Codimension of the subendity

Returns: An index in the range 0 ... Max number of entities in set - 1.

◆ size()

template<typename GV >

int Dune::mdgrid::MultiDomainMCMGMapper< GV >::size ( SubDomainIndex subDomain ) const

inline

Return total number of entities in the entity set managed by the mapper.

This number can be used to allocate a vector of data elements associated with the entities of the set. In the parallel case this number is per process (i.e. it may be different in different processes).

Returns: Size of the entity set.

◆ update()

template<typename GV >

void Dune::mdgrid::MultiDomainMCMGMapper< GV >::update ( const GV & gv )

inline

Recalculates indices after grid adaptation.

After grid adaptation you need to call this to update the stored gridview and recalculate the indices.

Member Data Documentation

◆ _offsets

template<typename GV , bool max_subomain_index_is_static>

std::array<std::vector<IndexType>,GV::Grid::maxSubDomainIndex()> Dune::mdgrid::MCMGMapperStorageProvider< GV, max_subomain_index_is_static >::_offsets

protectedinherited

The documentation for this class was generated from the following file:

multidomainmcmgmapper.hh
