#include <dune/grid/multidomaingrid/indexsets.hh>

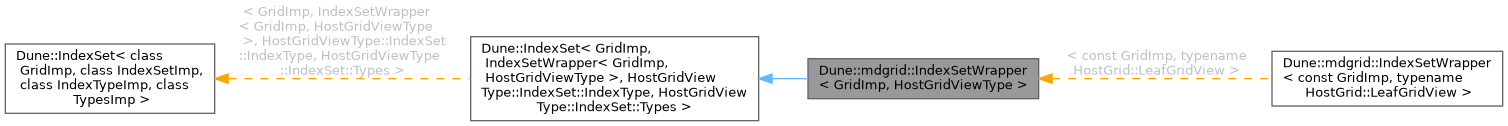

Inheritance diagram for Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >:

Public Types
typedef BaseT::Types	Types

using	MDGridTraits = typename Grid::MDGridTraits

typedef MDGridTraits::template Codim< 0 >::SubDomainSet	SubDomainSet

typedef MDGridTraits::SubDomainIndex	SubDomainIndex

typedef HostIndexSet::IndexType	IndexType

Public Member Functions
template<int codim>
IndexType	index (const typename Grid::Traits::template Codim< codim >::Entity &e) const
	Returns the index of the entity with codimension codim.

template<typename Entity >
IndexType	index (const Entity &e) const
	Returns the index of the entity.

template<int codim>
IndexType	subIndex (const typename Grid::Traits::template Codim< codim >::Entity &e, int i, unsigned int cd) const
	Returns the subdindex of the i-th subentity of e with codimension codim.

template<typename Entity >
IndexType	subIndex (const Entity &e, int i, unsigned int cd) const
	Returns the subdindex of the i-th subentity of e with codimension codim.

Types	types (int codim) const
	Returns a list of all geometry types with codimension codim contained in the grid.

IndexType	size (GeometryType type) const
	Returns the number of entities with GeometryType type in the grid.

IndexType	size (int codim) const
	Returns the number of entities with codimension codim in the grid.

template<typename EntityType >
bool	contains (const EntityType &e) const
	Returns true if the entity is contained in the grid.

template<typename EntityType >
const MapEntry< EntityType::codimension >::SubDomainSet &	subDomains (const EntityType &e) const
	Returns a constant reference to the SubDomainSet of the given entity.

template<int cc>
const MapEntry< cc >::SubDomainSet &	subDomains (const typename Grid::Traits::template Codim< cc >::Entity &e) const

template<class EntityType >
IndexType	index (SubDomainIndex subDomain, const EntityType &e) const
	Returns the index of the entity in a specific subdomain.

template<int cc>
IndexType	index (SubDomainIndex subDomain, const typename Grid::Traits::template Codim< cc >::Entity &e) const

template<typename SubDomainEntity >
IndexType	subIndex (SubDomainIndex subDomain, const SubDomainEntity &e, int i, int codim) const

Types	types (SubDomainIndex subDomain, int codim) const

IndexType	size (SubDomainIndex subDomain, GeometryType type) const

IndexType	size (SubDomainIndex subDomain, int codim) const

template<typename EntityType >
bool	contains (SubDomainIndex subDomain, const EntityType &e) const
	Returns true if the entity is contained in a specific subdomain.

	IndexSetWrapper (const GridImp &grid, HostGridView hostGridView)

IndexType	index (const typename Traits::template Codim< cc >::Entity &e) const

IndexType	subIndex (const typename Traits::template Codim< cc >::Entity &e, int i, unsigned int codim) const

bool	contains (const Entity &e) const

Static Public Attributes
static const int	dimension = Grid::dimension

static const std::size_t	maxSubDomains = SubDomainSet::maxSize

Friends
template<typename , typename >
class	IndexSetWrapper

template<typename , typename >
class	MultiDomainGrid

template<typename , typename >
class	subdomain::IndexSetWrapper

template<typename , typename , typename , typename >
class	SubDomainInterface

template<typename >
class	SubDomainToSubDomainController

template<typename >
class	AllInterfacesController

Detailed Description

template<typename GridImp, typename HostGridViewType>
class Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >

This is the heart of this module. The index sets for each level of the grid view and for the leaf grid view store a container of the type ContainerMap which is roughly the following:

{c++}
template<int codim>
struct Container {
 struct MapEntry {
   using SubDomainSet = typename MDGridTraits::template Codim<cc>::SubDomainSet;
   SubDomainSet domains;
   IndexType index;
 };

 // [geometry-type, host-index] -> map-entry
 using IndexMap = std::vector<std::vector<MapEntry>>;

 // [geometry-type, sub-domain] -> entity-count
 using SizeMap = std::vector<typename Grid::MDGridTraits::template Codim<codim>::SizeContainer>;

 // [sub-domain] -> entity-count
 using CodimSizeMap = typename Grid::MDGridTraits::template Codim<codim>::SizeContainer;

 // [map-entry.index] -> [sub-domain-offset-0-index, ..., sub-domain-offset-i-index]
 using MultiIndexMap = std::vector<typename Grid::MDGridTraits::template Codim<codim>::MultiIndexContainer>;

 IndexMap indexMap;
 SizeMap sizeMap;
 CodimSizeMap codimSizeMap;
 MultiIndexMap multiIndexMap;
};

using ContainerMap = std::tuple<Container<0>, ..., Container<dim>>;

Most of the fancy stuff is just to avoid instantiating unsupported codimensions by the host grid. But in general, the index of the sub-domain entity is stored in multiIndexMap and is accessed through the indexMap. If there is only one sub-domain in the entity, the sub-domain index is directly stored in indexMap to avoid the indirection of going to multiIndexMap. This also makes the multi-domain entities more compact.

To be performant in the overlapping case, the current implementation requires that MultiIndexContainer stores its contents within its class itself (i.e. no indirection to the heap). Doing otherwise implies very scatter memory and a very irregular memory access pattern. Either a fixed integer or an array do this. An idea to make this performant in a more general case is to use a polymorphic allocator that creates the multi-indices contiguously in memory. Index set for the MultiDomainGrid.

Member Typedef Documentation

◆ IndexType

template<typename GridImp , typename HostGridViewType >

typedef HostIndexSet::IndexType Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::IndexType

◆ MDGridTraits

template<typename GridImp , typename HostGridViewType >

using Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::MDGridTraits = typename Grid::MDGridTraits

◆ SubDomainIndex

template<typename GridImp , typename HostGridViewType >

typedef MDGridTraits::SubDomainIndex Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::SubDomainIndex

◆ SubDomainSet

template<typename GridImp , typename HostGridViewType >

typedef MDGridTraits::template Codim<0>::SubDomainSet Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::SubDomainSet

◆ Types

template<typename GridImp , typename HostGridViewType >

typedef BaseT::Types Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::Types

Constructor & Destructor Documentation

◆ IndexSetWrapper()

template<typename GridImp , typename HostGridViewType >

Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::IndexSetWrapper	(	const GridImp &	grid,
		HostGridView	hostGridView
	)

inline

Member Function Documentation

◆ contains() [1/2]

template<typename GridImp , typename HostGridViewType >

template<typename EntityType >

bool Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::contains ( const EntityType & e ) const

inline

Returns true if the entity is contained in the grid.

◆ contains() [2/2]

template<typename GridImp , typename HostGridViewType >

template<typename EntityType >

bool Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::contains	(	SubDomainIndex	subDomain,
		const EntityType &	e
	)		const

inline

Returns true if the entity is contained in a specific subdomain.

◆ index() [1/4]

template<typename GridImp , typename HostGridViewType >

template<typename Entity >

IndexType Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::index ( const Entity & e ) const

inline

Returns the index of the entity.

◆ index() [2/4]

template<typename GridImp , typename HostGridViewType >

template<int codim>

IndexType Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::index ( const typename Grid::Traits::template Codim< codim >::Entity & e ) const

inline

Returns the index of the entity with codimension codim.

◆ index() [3/4]

template<typename GridImp , typename HostGridViewType >

template<class EntityType >

IndexType Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::index	(	SubDomainIndex	subDomain,
		const EntityType &	e
	)		const

inline

Returns the index of the entity in a specific subdomain.

◆ index() [4/4]

template<typename GridImp , typename HostGridViewType >

template<int cc>

IndexType Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::index	(	SubDomainIndex	subDomain,
		const typename Grid::Traits::template Codim< cc >::Entity &	e
	)		const

inline

Returns the index of the entity with codimension cc in a specific subdomain.

Template Parameters

the	codimension of the entity.

◆ size() [1/4]

template<typename GridImp , typename HostGridViewType >

IndexType Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::size ( GeometryType type ) const

inline

Returns the number of entities with GeometryType type in the grid.

◆ size() [2/4]

template<typename GridImp , typename HostGridViewType >

IndexType Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::size ( int codim ) const

inline

Returns the number of entities with codimension codim in the grid.

◆ size() [3/4]

template<typename GridImp , typename HostGridViewType >

IndexType Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::size	(	SubDomainIndex	subDomain,
		GeometryType	type
	)		const

inline

◆ size() [4/4]

template<typename GridImp , typename HostGridViewType >

IndexType Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::size	(	SubDomainIndex	subDomain,
		int	codim
	)		const

inline

◆ subDomains() [1/2]

template<typename GridImp , typename HostGridViewType >

template<typename EntityType >

const MapEntry< EntityType::codimension >::SubDomainSet & Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::subDomains ( const EntityType & e ) const

inline

Returns a constant reference to the SubDomainSet of the given entity.

◆ subDomains() [2/2]

template<typename GridImp , typename HostGridViewType >

template<int cc>

const MapEntry< cc >::SubDomainSet & Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::subDomains ( const typename Grid::Traits::template Codim< cc >::Entity & e ) const

inline

Returns a constant reference to the SubDomainSet of the given entity with codimension cc.

Template Parameters

cc	the codimension of the entity.

◆ subIndex() [1/3]

template<typename GridImp , typename HostGridViewType >

template<typename Entity >

IndexType Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::subIndex	(	const Entity &	e,
		int	i,
		unsigned int	cd
	)		const

inline

Returns the subdindex of the i-th subentity of e with codimension codim.

◆ subIndex() [2/3]

template<typename GridImp , typename HostGridViewType >

template<int codim>

IndexType Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::subIndex	(	const typename Grid::Traits::template Codim< codim >::Entity &	e,
		int	i,
		unsigned int	cd
	)		const

inline

Returns the subdindex of the i-th subentity of e with codimension codim.

◆ subIndex() [3/3]

template<typename GridImp , typename HostGridViewType >

template<typename SubDomainEntity >

IndexType Dune::mdgrid::IndexSetWrapper< GridImp, HostGridViewType >::subIndex	(	SubDomainIndex	subDomain,
		const SubDomainEntity &	e,
		int	i,
		int	codim
	)		const
