Dune::EdgeS0_5Interpolation< Geometry, Traits_ > Class Template Reference

Interpolation for lowest order edge elements on simplices. More...

#include <dune/localfunctions/whitney/edges0.5/interpolation.hh>

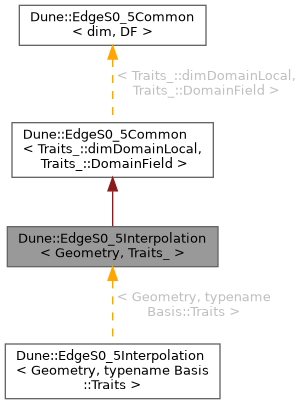

Inheritance diagram for Dune::EdgeS0_5Interpolation< Geometry, Traits_ >:

Public Types
typedef Traits_	Traits

Public Member Functions
template<typename VertexOrder >
	EdgeS0_5Interpolation (const Geometry &geo, const VertexOrder &vertexOrder)
	constructor
template<typename F , typename C >
void	interpolate (const F &f, std::vector< C > &out) const
	Interpolation of a function.

Detailed Description

template<class Geometry, class Traits_>
class Dune::EdgeS0_5Interpolation< Geometry, Traits_ >

Interpolation for lowest order edge elements on simplices.

Template Parameters

Geometry	Type of the local-to-global map.
RF	Type to represent the field in the range.

Member Typedef Documentation

Traits

template<class Geometry , class Traits_ >

typedef Traits_ Dune::EdgeS0_5Interpolation< Geometry, Traits_ >::Traits

Constructor & Destructor Documentation

EdgeS0_5Interpolation()

template<class Geometry , class Traits_ >

template<typename VertexOrder >

Dune::EdgeS0_5Interpolation< Geometry, Traits_ >::EdgeS0_5Interpolation ( const Geometry &  geo, const VertexOrder &  vertexOrder  )

inline

constructor

Parameters

geo	Geometry of the element to construct a local basis for.
vertexOrder	Vertex ordering information. Only the vertex order on the dim=1 sub-entities (edges) is required.

Member Function Documentation

interpolate()

template<class Geometry , class Traits_ >

template<typename F , typename C >

void Dune::EdgeS0_5Interpolation< Geometry, Traits_ >::interpolate ( const F &  f, std::vector< C > &  out  ) const

inline

Interpolation of a function.

---

The documentation for this class was generated from the following file:

• whitney/edges0.5/interpolation.hh
