Dune::LocalToGlobalInterpolationAdaptor< LocalInterpolation, Traits_ > Class Template Reference

Convert a local interpolation into a global interpolation. More...

#include <dune/localfunctions/common/localtoglobaladaptors.hh>

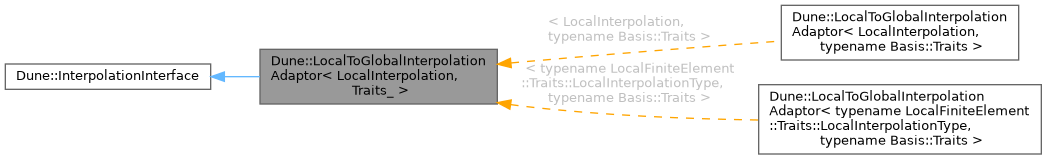

Inheritance diagram for Dune::LocalToGlobalInterpolationAdaptor< LocalInterpolation, Traits_ >:

Public Types
typedef Traits_	Traits

Public Member Functions
	LocalToGlobalInterpolationAdaptor (const LocalInterpolation &localInterpolation_)
	construct a LocalToGlobalInterpolationAdaptor
template<class Function , class Coeff >
void	interpolate (const Function &function, std::vector< Coeff > &out) const
template<typename F , typename C >
void	interpolate (const F &f, std::vector< C > &out) const
	Determine coefficients interpolating a given function.

Detailed Description

template<class LocalInterpolation, class Traits_>
class Dune::LocalToGlobalInterpolationAdaptor< LocalInterpolation, Traits_ >

Convert a local interpolation into a global interpolation.

Template Parameters

LocalInterpolation	Type of the local interpolation to adapt.
Traits_	Traits of the corresposnding basis class.

Member Typedef Documentation

Traits

template<class LocalInterpolation , class Traits_ >

typedef Traits_ Dune::LocalToGlobalInterpolationAdaptor< LocalInterpolation, Traits_ >::Traits

Constructor & Destructor Documentation

LocalToGlobalInterpolationAdaptor()

template<class LocalInterpolation , class Traits_ >

Dune::LocalToGlobalInterpolationAdaptor< LocalInterpolation, Traits_ >::LocalToGlobalInterpolationAdaptor ( const LocalInterpolation &  localInterpolation_ )

inline

construct a LocalToGlobalInterpolationAdaptor

Parameters

localInterpolation_

The local interpolation object to adapt.

Note

This class stores the reference to the local interpolation object passed here. Any use of this class after the reference have become invalid results in undefined behaviour. The exception is that the destructor of this class may still be called.

Member Function Documentation

interpolate() [1/2]

template<typename F , typename C >

void Dune::InterpolationInterface::interpolate ( const F &  f, std::vector< C > &  out  ) const

inherited

Determine coefficients interpolating a given function.

Parameters

f	An object supporting the expression f.evaluate(x,y), where x is of type Traits::DomainLocal and y of the type Traits::Range. When f.evaluate(x,y) is evaluated, x will be a local coordinate , and the expression should set y to the function value at that position. The initial value of y should not be used.
out	Vector where to store the interpolated coefficients.

interpolate() [2/2]

template<class LocalInterpolation , class Traits_ >

template<class Function , class Coeff >

void Dune::LocalToGlobalInterpolationAdaptor< LocalInterpolation, Traits_ >::interpolate ( const Function &  function, std::vector< Coeff > &  out  ) const

inline

---

The documentation for this class was generated from the following file:

• localtoglobaladaptors.hh
