Dune::BDM2Cube2DLocalInterpolation< LB > Class Template Reference

First order Brezzi-Douglas-Marini shape functions on quadrilaterals. More...

#include <dune/localfunctions/brezzidouglasmarini/brezzidouglasmarini2cube2d/brezzidouglasmarini2cube2dlocalinterpolation.hh>

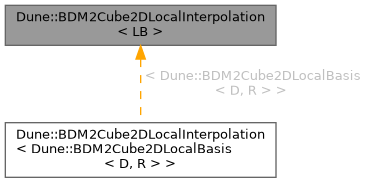

Inheritance diagram for Dune::BDM2Cube2DLocalInterpolation< LB >:

Public Member Functions
	BDM2Cube2DLocalInterpolation ()
	Standard constructor.
	BDM2Cube2DLocalInterpolation (unsigned int s)
	Make set number s, where 0 <= s < 16.
template<typename F , typename C >
void	interpolate (const F &f, std::vector< C > &out) const
	Interpolate a given function with shape functions.

Detailed Description

template<class LB>
class Dune::BDM2Cube2DLocalInterpolation< LB >

First order Brezzi-Douglas-Marini shape functions on quadrilaterals.

Template Parameters

LB	corresponding LocalBasis giving traits

Constructor & Destructor Documentation

BDM2Cube2DLocalInterpolation() [1/2]

template<class LB >

Dune::BDM2Cube2DLocalInterpolation< LB >::BDM2Cube2DLocalInterpolation ( )

inline

Standard constructor.

BDM2Cube2DLocalInterpolation() [2/2]

template<class LB >

Dune::BDM2Cube2DLocalInterpolation< LB >::BDM2Cube2DLocalInterpolation ( unsigned int  s )

inline

Make set number s, where 0 <= s < 16.

Parameters

s	Edge orientation indicator

Member Function Documentation

interpolate()

template<class LB >

template<typename F , typename C >

void Dune::BDM2Cube2DLocalInterpolation< LB >::interpolate ( const F &  f, std::vector< C > &  out  ) const

inline

Interpolate a given function with shape functions.

Template Parameters

F	Function type for function which should be interpolated
C	Coefficient type

Parameters

f	function which should be interpolated
out	return value, vector of coefficients

---

The documentation for this class was generated from the following file:

• brezzidouglasmarini2cube2dlocalinterpolation.hh
