dune-fem: Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry > Class Template Reference

DUNE

dune-fem 2.12-git

Loading...

Searching...

No Matches

implementation of entity and geometry storage for basis function set and local functions More...

#include <dune/fem/storage/entitygeometry.hh>

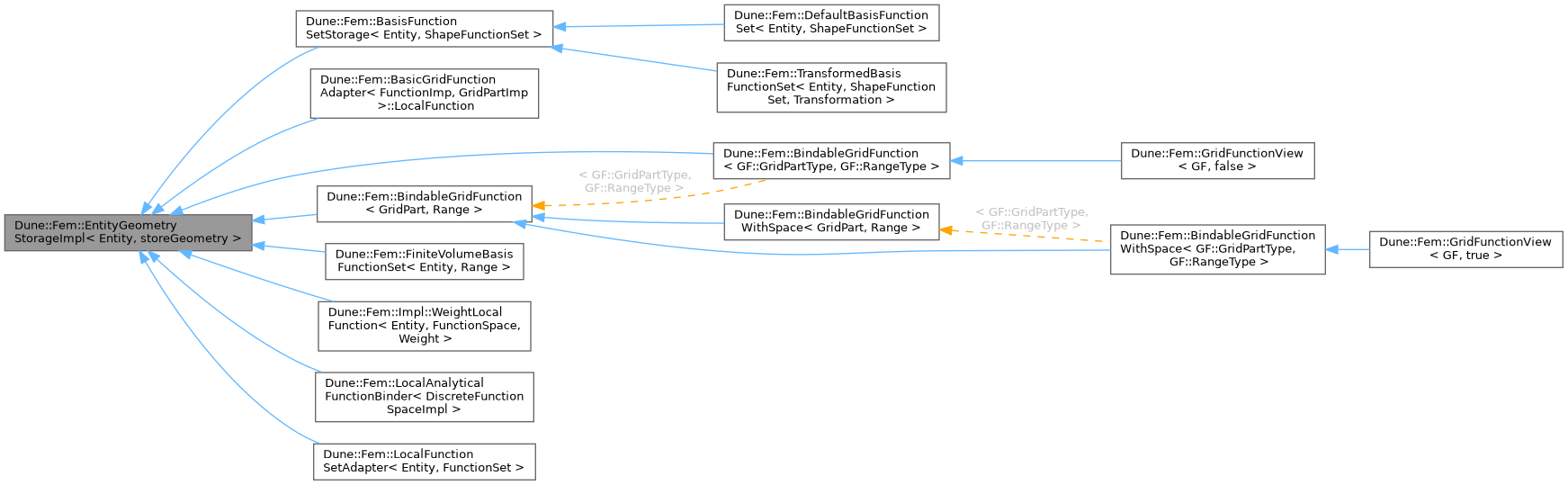

Inheritance diagram for Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >:

Inheritance graph

Classes
struct	Empty

Public Types
typedef Entity	EntityType
	entity type

typedef EntityType::Geometry	Geometry
	type of geometry

typedef Geometry::ctype	ctype
	type of coordinate field

typedef std::decay_t< decltype(Dune::ReferenceElements< ctype, Geometry::coorddimension >::general(std::declval< const Dune::GeometryType & >())) >	ReferenceElementType
	type of reference element

Public Member Functions
	EntityGeometryStorageImpl ()
	constructor

	EntityGeometryStorageImpl (const EntityType &entity)
	constructor

	EntityGeometryStorageImpl (const EntityGeometryStorageImpl &other)
	copy constructor

EntityGeometryStorageImpl &	operator= (const EntityGeometryStorageImpl &other)
	assignment operator

const Entity &	entity () const
	return entity

bool	valid () const
	return true if entity pointer is set

const Geometry &	geometry () const
	return geometry

Dune::GeometryType	type () const
	return geometry type

const ReferenceElementType &	referenceElement () const
	return reference element

void	bind (const EntityType &entity)
	set new entity object and geometry if enabled

void	unbind ()
	release entity and geometry object

Protected Types
typedef std::optional< EntityType >	EntityStorageType

typedef std::conditional< storeGeometry, std::optional< Geometry >, Empty >::type	GeometryStorageType

Protected Member Functions
void	copyGeometry (const EntityGeometryStorageImpl &other)

Protected Attributes
EntityStorageType	entity_

GeometryStorageType	geometry_

Detailed Description

template<class Entity, bool storeGeometry = true>
class Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >

implementation of entity and geometry storage for basis function set and local functions

Template Parameters

Entity	entity type
storeGeometry	if true, geometry is also stored

Note: EntityGeometryStorageImpl must be a copyable object.

Member Typedef Documentation

◆ ctype

template<class Entity , bool storeGeometry = true>

typedef Geometry::ctype Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::ctype

type of coordinate field

◆ EntityStorageType

template<class Entity , bool storeGeometry = true>

typedef std::optional< EntityType > Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::EntityStorageType

protected

◆ EntityType

template<class Entity , bool storeGeometry = true>

typedef Entity Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::EntityType

entity type

◆ Geometry

template<class Entity , bool storeGeometry = true>

typedef EntityType::Geometry Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::Geometry

type of geometry

◆ GeometryStorageType

template<class Entity , bool storeGeometry = true>

typedef std::conditional<storeGeometry,std::optional<Geometry>,Empty>::type Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::GeometryStorageType

protected

◆ ReferenceElementType

template<class Entity , bool storeGeometry = true>

typedef std::decay_t< decltype( Dune::ReferenceElements< ctype, Geometry::coorddimension >:: general( std::declval< const Dune::GeometryType & >() ) ) > Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::ReferenceElementType

type of reference element

Constructor & Destructor Documentation

◆ EntityGeometryStorageImpl() [1/3]

template<class Entity , bool storeGeometry = true>

Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::EntityGeometryStorageImpl ( )

inline

constructor

◆ EntityGeometryStorageImpl() [2/3]

template<class Entity , bool storeGeometry = true>

Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::EntityGeometryStorageImpl ( const EntityType & entity )

inlineexplicit

constructor

◆ EntityGeometryStorageImpl() [3/3]

template<class Entity , bool storeGeometry = true>

Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::EntityGeometryStorageImpl ( const EntityGeometryStorageImpl< Entity, storeGeometry > & other )

inline

copy constructor

Member Function Documentation

◆ bind()

template<class Entity , bool storeGeometry = true>

void Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::bind ( const EntityType & entity )

inline

set new entity object and geometry if enabled

◆ copyGeometry()

template<class Entity , bool storeGeometry = true>

void Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::copyGeometry ( const EntityGeometryStorageImpl< Entity, storeGeometry > & other )

inlineprotected

◆ entity()

template<class Entity , bool storeGeometry = true>

const Entity & Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::entity ( ) const

inline

return entity

◆ geometry()

template<class Entity , bool storeGeometry = true>

const Geometry & Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::geometry ( ) const

inline

return geometry

◆ operator=()

template<class Entity , bool storeGeometry = true>

EntityGeometryStorageImpl & Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::operator= ( const EntityGeometryStorageImpl< Entity, storeGeometry > & other )

inline

assignment operator

◆ referenceElement()

template<class Entity , bool storeGeometry = true>

const ReferenceElementType & Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::referenceElement ( ) const

inline

return reference element

◆ type()

template<class Entity , bool storeGeometry = true>

Dune::GeometryType Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::type ( ) const

inline

return geometry type

◆ unbind()

template<class Entity , bool storeGeometry = true>

void Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::unbind ( )

inline

release entity and geometry object

◆ valid()

template<class Entity , bool storeGeometry = true>

bool Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::valid ( ) const

inline

return true if entity pointer is set

Member Data Documentation

◆ entity_

template<class Entity , bool storeGeometry = true>

EntityStorageType Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::entity_

protected

◆ geometry_

template<class Entity , bool storeGeometry = true>

GeometryStorageType Dune::Fem::EntityGeometryStorageImpl< Entity, storeGeometry >::geometry_

protected

The documentation for this class was generated from the following file:

entitygeometry.hh
