Dune::Fem::KrylovInverseOperator< DiscreteFunction, method > Class Template Reference

#include <dune/fem/solver/krylovinverseoperators.hh>

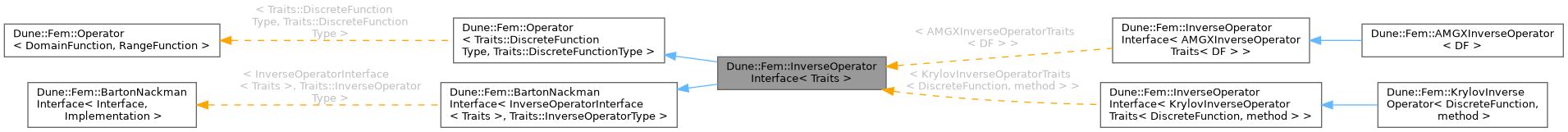

Inheritance diagram for Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >:

Public Types
typedef BaseType::DomainFunctionType	DomainFunctionType
typedef BaseType::RangeFunctionType	RangeFunctionType
typedef BaseType::OperatorType	OperatorType
typedef BaseType::PreconditionerType	PreconditionerType
typedef BaseType::AssembledOperatorType	AssembledOperatorType
typedef Traits::SolverDiscreteFunctionType	SolverDiscreteFunctionType
typedef Traits::SolverParameterType	SolverParameterType
typedef Impl::SolverInfo	SolverInfoType
typedef std::function< bool(const RangeFunctionType &w, const RangeFunctionType &dw, double residualNorm) >	ErrorMeasureType
	type of error measure (used by NewtonInverseOperator primnarily)
typedef DomainFunction::RangeFieldType	DomainFieldType
	field type of the operator's domain
typedef RangeFunction::RangeFieldType	RangeFieldType
	field type of the operator's range

Public Member Functions
	KrylovInverseOperator (const OperatorType &op, const SolverParameter &parameter=SolverParameter(Parameter::container()))
	KrylovInverseOperator (const OperatorType &op, const PreconditionerType &preconditioner, const SolverParameter &parameter=SolverParameter(Parameter::container()))
	KrylovInverseOperator (const SolverParameter &parameter=SolverParameter(Parameter::container()))
	main constructor
template<class Operator >
void	bind (const Operator &op)
virtual void	operator() (const DomainFunctionType &u, RangeFunctionType &w) const
	application of operator to compute
void	operator() (const DiscreteFunctionInterface< DImpl > &u, DiscreteFunctionInterface< RImpl > &w) const
	application of operator to compute
virtual void	operator() (const DomainFunctionType &u, RangeFunctionType &w) const=0
	application operator
void	bind (const OperatorType &op)
	store pointer to linear operator
void	bind (const OperatorType &op, const PreconditionerType &preconditioner)
	store pointer to linear operator and preconditioner
void	unbind ()
	reset all pointers and internal temporary memory
int	iterations () const
	return number of iterations used in previous call of application operator
virtual SolverInfoType	info () const
	Return performance info about last solver call.
virtual void	setMaxLinearIterations (const int iter)
	set number of max linear iterations to be used before an exception is thrown
virtual void	setMaxIterations (const int iter)
void	setParameters (const SolverParameterType &newParams)
	set complete set of linear inverse operator parameters
SolverParameterType &	parameter () const
bool	verbose () const
double	averageCommTime () const
	return accumulated communication time
virtual void	finalize ()
	finalization of operator
virtual bool	nonlinear () const

Static Public Member Functions
static std::vector< int >	supportedSolverMethods ()
static std::vector< int >	supportedPreconditionMethods ()

Static Public Attributes
static const bool	preconditioningAvailable
	true if a preconditioner type is exported and can be set using bind( op, p )

Protected Types
typedef BartonNackmanInterface< InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >, typename Traits::InverseOperatorType >	Base2Type
typedef Traits::InverseOperatorType	InverseOperatorType

Protected Member Functions
int	apply (const DomainFunctionType &u, RangeFunctionType &w) const
template<class LinearOperator >
	KrylovInverseOperator (const LinearOperator &op, const PreconditionerType *preconditioner, const SolverParameter &parameter=SolverParameter(Parameter::container()))
template<class LinearOperator >
void	createPreconditioner (const LinearOperator &op)
void	opApply (const SolverDiscreteFunctionType &u, SolverDiscreteFunctionType &w) const
void	opApply (const DiscreteFunctionInterface< DImpl > &u, DiscreteFunctionInterface< RImpl > &w) const
const Implementation &	asImp () const
Implementation &	asImp ()

Static Protected Member Functions
static const Implementation &	asImp (const ThisType &other)
static Implementation &	asImp (ThisType &other)

Protected Attributes
std::unique_ptr< PreconditionerType >	precondObj_
std::vector< DomainFunctionType >	v_
const bool	verbose_
const int	method_
const int	precondMethod_
std::shared_ptr< SolverParameterType >	parameter_
const OperatorType *	operator_
const AssembledOperatorType *	assembledOperator_
const PreconditionerType *	preconditioner_
std::unique_ptr< SolverDiscreteFunctionType >	rhs_
std::unique_ptr< SolverDiscreteFunctionType >	x_
int	iterations_
bool	rightHandSideCopied_

Friends
class	InverseOperatorInterface< Traits >

Member Typedef Documentation

AssembledOperatorType

template<class DiscreteFunction , int method>

typedef BaseType::AssembledOperatorType Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::AssembledOperatorType

Base2Type

typedef BartonNackmanInterface< InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >, typename Traits::InverseOperatorType > Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::Base2Type

protectedinherited

DomainFieldType

typedef DomainFunction::RangeFieldType Dune::Fem::Operator< Traits::DiscreteFunctionType , Traits::DiscreteFunctionType >::DomainFieldType

inherited

field type of the operator's domain

DomainFunctionType

template<class DiscreteFunction , int method>

typedef BaseType::DomainFunctionType Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::DomainFunctionType

ErrorMeasureType

typedef std::function< bool ( const RangeFunctionType &w, const RangeFunctionType &dw, double residualNorm ) > Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::ErrorMeasureType

inherited

type of error measure (used by NewtonInverseOperator primnarily)

InverseOperatorType

typedef Traits::InverseOperatorType Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::InverseOperatorType

protectedinherited

OperatorType

template<class DiscreteFunction , int method>

typedef BaseType::OperatorType Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::OperatorType

PreconditionerType

template<class DiscreteFunction , int method>

typedef BaseType::PreconditionerType Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::PreconditionerType

RangeFieldType

typedef RangeFunction::RangeFieldType Dune::Fem::Operator< Traits::DiscreteFunctionType , Traits::DiscreteFunctionType >::RangeFieldType

inherited

field type of the operator's range

RangeFunctionType

template<class DiscreteFunction , int method>

typedef BaseType::RangeFunctionType Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::RangeFunctionType

SolverDiscreteFunctionType

typedef Traits::SolverDiscreteFunctionType Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::SolverDiscreteFunctionType

inherited

SolverInfoType

typedef Impl::SolverInfo Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::SolverInfoType

inherited

SolverParameterType

typedef Traits::SolverParameterType Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::SolverParameterType

inherited

Constructor & Destructor Documentation

KrylovInverseOperator() [1/4]

template<class DiscreteFunction , int method>

Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::KrylovInverseOperator ( const OperatorType &  op, const SolverParameter &  parameter = SolverParameter(Parameter::container())  )

inline

KrylovInverseOperator() [2/4]

template<class DiscreteFunction , int method>

Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::KrylovInverseOperator ( const OperatorType &  op, const PreconditionerType &  preconditioner, const SolverParameter &  parameter = SolverParameter(Parameter::container())  )

inline

KrylovInverseOperator() [3/4]

template<class DiscreteFunction , int method>

Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::KrylovInverseOperator ( const SolverParameter &  parameter = SolverParameter(Parameter::container()) )

inline

main constructor

KrylovInverseOperator() [4/4]

template<class DiscreteFunction , int method>

template<class LinearOperator >

Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::KrylovInverseOperator ( const LinearOperator &  op, const PreconditionerType *  preconditioner, const SolverParameter &  parameter = SolverParameter(Parameter::container())  )

inlineprotected

Member Function Documentation

apply()

template<class DiscreteFunction , int method>

int Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::apply ( const DomainFunctionType &  u, RangeFunctionType &  w  ) const

inlineprotected

asImp() [1/4]

template<class Interface , class Implementation >

Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( )

inlineprotectedinherited

asImp() [2/4]

template<class Interface , class Implementation >

const Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( ) const

inlineprotectedinherited

asImp() [3/4]

template<class Interface , class Implementation >

static const Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( const ThisType &  other )

inlinestaticprotectedinherited

asImp() [4/4]

template<class Interface , class Implementation >

static Implementation & Dune::Fem::BartonNackmanInterface< Interface, Implementation >::asImp ( ThisType &  other )

inlinestaticprotectedinherited

averageCommTime()

double Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::averageCommTime ( ) const

inlineinherited

return accumulated communication time

bind() [1/3]

template<class DiscreteFunction , int method>

template<class Operator >

void Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::bind ( const Operator &  op )

inline

bind() [2/3]

void Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::bind ( const OperatorType &  op )

inlineinherited

store pointer to linear operator

Parameters

op	linear operator following the Dune::Fem:Operator interface

Note

A dynamic cast to AssembledOperatorType is carried out. For some solvers this is necessary.

bind() [3/3]

void Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::bind ( const OperatorType &  op, const PreconditionerType &  preconditioner  )

inlineinherited

store pointer to linear operator and preconditioner

Parameters

op	linear operator following the Dune::Fem:Operator interface
preconditioner	precondition operator

Note

A dynamic cast to AssembledOperatorType is carried out. For some solvers this is necessary.

createPreconditioner()

template<class DiscreteFunction , int method>

template<class LinearOperator >

void Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::createPreconditioner ( const LinearOperator &  op )

inlineprotected

finalize()

virtual void Dune::Fem::Operator< Traits::DiscreteFunctionType , Traits::DiscreteFunctionType >::finalize ( )

inlinevirtualinherited

finalization of operator

Note

The default implementation is empty.

info()

virtual SolverInfoType Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::info ( ) const

inlinevirtualinherited

Return performance info about last solver call.

iterations()

int Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::iterations ( ) const

inlineinherited

return number of iterations used in previous call of application operator

nonlinear()

virtual bool Dune::Fem::Operator< Traits::DiscreteFunctionType , Traits::DiscreteFunctionType >::nonlinear ( ) const

inlinevirtualinherited

Return true if the Operator is nonlinear and false otherwise (default is true).

opApply() [1/2]

void Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::opApply ( const DiscreteFunctionInterface< DImpl > &  u, DiscreteFunctionInterface< RImpl > &  w  ) const

inlineprotectedinherited

opApply() [2/2]

void Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::opApply ( const SolverDiscreteFunctionType &  u, SolverDiscreteFunctionType &  w  ) const

inlineprotectedinherited

operator()() [1/3]

void Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::operator() ( const DiscreteFunctionInterface< DImpl > &  u, DiscreteFunctionInterface< RImpl > &  w  ) const

inlineinherited

application of operator to compute

\[ w = op^-1( u ) \]

.

Parameters

u	parameter right hand side of linear problem
w	initial guess for linear solver

Note

Calling the inverse operator for arbitrary discrete functions a copy to solver compatible discrete function is made.

operator()() [2/3]

virtual void Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::operator() ( const DomainFunctionType &  u, RangeFunctionType &  w  ) const

inlinevirtualinherited

application of operator to compute

\[ w = op^-1( u ) \]

.

Parameters

u	parameter right hand side of linear problem
w	initial guess for linear solver

operator()() [3/3]

virtual void Dune::Fem::Operator< Traits::DiscreteFunctionType , Traits::DiscreteFunctionType >::operator() ( const DomainFunctionType &  u, RangeFunctionType &  w  ) const

pure virtualinherited

application operator

Parameters

[in]	u	argument discrete function
[out]	w	destination discrete function

Note

This method has to be implemented by all derived classes.

parameter()

SolverParameterType & Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::parameter ( ) const

inlineinherited

setMaxIterations()

virtual void Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::setMaxIterations ( const int  iter )

inlinevirtualinherited

setMaxLinearIterations()

virtual void Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::setMaxLinearIterations ( const int  iter )

inlinevirtualinherited

set number of max linear iterations to be used before an exception is thrown

Parameters

iter	number of max linear iterations

setParameters()

void Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::setParameters ( const SolverParameterType &  newParams )

inlineinherited

set complete set of linear inverse operator parameters

Note

newParams set of new parameters

supportedPreconditionMethods()

template<class DiscreteFunction , int method>

static std::vector< int > Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::supportedPreconditionMethods ( )

inlinestatic

supportedSolverMethods()

template<class DiscreteFunction , int method>

static std::vector< int > Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::supportedSolverMethods ( )

inlinestatic

unbind()

void Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::unbind ( )

inlineinherited

reset all pointers and internal temporary memory

verbose()

bool Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::verbose ( ) const

inlineinherited

Friends And Related Symbol Documentation

InverseOperatorInterface< Traits >

template<class DiscreteFunction , int method>

friend class InverseOperatorInterface< Traits >

friend

Member Data Documentation

assembledOperator_

const AssembledOperatorType* Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::assembledOperator_

protectedinherited

iterations_

int Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::iterations_

mutableprotectedinherited

method_

template<class DiscreteFunction , int method>

const int Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::method_

protected

operator_

const OperatorType* Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::operator_

protectedinherited

parameter_

std::shared_ptr<SolverParameterType> Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::parameter_

protectedinherited

preconditioner_

const PreconditionerType* Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::preconditioner_

protectedinherited

preconditioningAvailable

const bool Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::preconditioningAvailable

staticinherited

true if a preconditioner type is exported and can be set using bind( op, p )

precondMethod_

template<class DiscreteFunction , int method>

const int Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::precondMethod_

protected

precondObj_

template<class DiscreteFunction , int method>

std::unique_ptr< PreconditionerType > Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::precondObj_

protected

rhs_

std::unique_ptr< SolverDiscreteFunctionType > Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::rhs_

mutableprotectedinherited

rightHandSideCopied_

bool Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::rightHandSideCopied_

mutableprotectedinherited

v_

template<class DiscreteFunction , int method>

std::vector< DomainFunctionType > Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::v_

mutableprotected

verbose_

template<class DiscreteFunction , int method>

const bool Dune::Fem::KrylovInverseOperator< DiscreteFunction, method >::verbose_

protected

x_

std::unique_ptr< SolverDiscreteFunctionType > Dune::Fem::InverseOperatorInterface< KrylovInverseOperatorTraits< DiscreteFunction, method > >::x_

mutableprotectedinherited

---

The documentation for this class was generated from the following file:

• krylovinverseoperators.hh
