Dune::Fem::CGInverseOperator< DiscreteFunction, Op > Class Template Reference

Inverse operator base on CG method. Uses a runtime parameter fem.preconditioning which enables diagonal preconditioning if diagonal matrix entries are available, i.e., Op :: assembled is true. More...

#include <dune/fem/solver/cginverseoperator.hh>

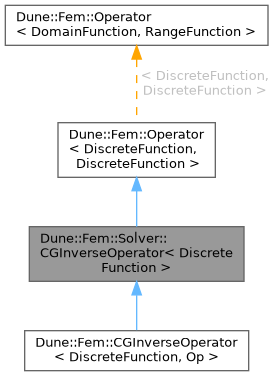

Inheritance diagram for Dune::Fem::CGInverseOperator< DiscreteFunction, Op >:

Public Types
typedef SolverParameter	SolverParameterType
typedef BaseType::DomainFunctionType	DomainFunctionType
typedef BaseType::RangeFunctionType	RangeFunctionType
typedef DomainFunctionType	DestinationType
typedef Op	OperatorType
	type of operator
typedef OperatorType::RangeFieldType	RangeFieldType
typedef Dune::FieldTraits< RangeFieldType >::real_type	RealType
typedef Fem::Operator< RangeFunctionType, DomainFunctionType >	PreconditioningType
typedef Fem::Operator< RangeFunctionType, DomainFunctionType >	PreconditionerType
typedef DomainFunction::RangeFieldType	DomainFieldType
	field type of the operator's domain

Public Member Functions
	CGInverseOperator (const SolverParameter &param=SolverParameter(Parameter::container()))
	CGInverseOperator (RealType redEps, RealType absLimit, unsigned int maxIter, bool verbose, const ParameterReader &parameter=Parameter::container())
	constructor of CGInverseOperator
	CGInverseOperator (RealType redEps, RealType absLimit, unsigned int maxIter, const ParameterReader &parameter=Parameter::container())
	constructor of CGInverseOperator
	CGInverseOperator (RealType redEps, RealType absLimit, const ParameterReader &parameter=Parameter::container())
template<class LinearOperator , std::enable_if_t< std::is_base_of< OperatorType, LinearOperator >::value, int > = 0>
	CGInverseOperator (const LinearOperator &op, RealType redEps, RealType absLimit, unsigned int maxIter, bool verbose, const ParameterReader &parameter=Parameter::container())
	constructor of CGInverseOperator
template<class LinearOperator , std::enable_if_t< std::is_base_of< OperatorType, LinearOperator >::value, int > = 0>
	CGInverseOperator (const LinearOperator &op, RealType redEps, RealType absLimit, unsigned int maxIter, const ParameterReader &parameter=Parameter::container())
	constructor of CGInverseOperator
template<class LinearOperator , std::enable_if_t< std::is_base_of< OperatorType, LinearOperator >::value, int > = 0>
	CGInverseOperator (const LinearOperator &op, RealType redEps, RealType absLimit, const ParameterReader &parameter=Parameter::container())
	CGInverseOperator (const OperatorType &op, const PreconditioningType &precond, RealType redEps, RealType absLimit, unsigned int maxIter, bool verbose, const ParameterReader &parameter=Parameter::container())
	constructor of CGInverseOperator
	CGInverseOperator (const OperatorType &op, const PreconditioningType &precond, RealType redEps, RealType absLimit, unsigned int maxIter, const ParameterReader &parameter=Parameter::container())
	constructor of CGInverseOperator
	CGInverseOperator (const OperatorType &op, const PreconditioningType &precond, RealType redEps, RealType absLimit, const ParameterReader &parameter=Parameter::container())
template<class LinearOperator , std::enable_if_t< std::is_base_of< OperatorType, LinearOperator >::value, int > = 0>
void	bind (const LinearOperator &op)
void	unbind ()
void	bind (const OperatorType &op)
void	bind (const OperatorType &op, const PreconditionerType &precond)
void	bind (const OperatorType &op)
void	bind (const OperatorType &op, const PreconditionerType &precond)
virtual void	operator() (const DomainFunctionType &arg, RangeFunctionType &dest) const
	application operator
template<typename... A>
void	prepare (A...) const
virtual void	apply (const DomainFunctionType &arg, RangeFunctionType &dest) const
	application operator
unsigned int	iterations () const
	number of iterations needed for last solve
void	setMaxIterations (unsigned int maxIter)
double	averageCommTime () const
	return average communication time during last solve
SolverParameter &	parameter () const
virtual void	finalize ()
	finalization of operator
virtual bool	nonlinear () const

Protected Member Functions
template<class LinearOperator >
void	checkPreconditioning (const LinearOperator &linearOp)

Protected Attributes
std::unique_ptr< PreconditioningType >	precondObj_
const PreconditionerType *	preconditioner_
SolverParameter	parameter_
const OperatorType *	operator_ = nullptr
SolverType	solver_

Detailed Description

template<class DiscreteFunction, class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>
class Dune::Fem::CGInverseOperator< DiscreteFunction, Op >

Inverse operator base on CG method. Uses a runtime parameter fem.preconditioning which enables diagonal preconditioning if diagonal matrix entries are available, i.e., Op :: assembled is true.

Member Typedef Documentation

DestinationType

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

typedef DomainFunctionType Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::DestinationType

DomainFieldType

typedef DomainFunction::RangeFieldType Dune::Fem::Operator< DiscreteFunction , DiscreteFunction >::DomainFieldType

inherited

field type of the operator's domain

DomainFunctionType

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

typedef BaseType::DomainFunctionType Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::DomainFunctionType

OperatorType

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

typedef Op Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::OperatorType

type of operator

PreconditionerType

template<class DiscreteFunction >

typedef Fem::Operator< RangeFunctionType, DomainFunctionType > Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::PreconditionerType

inherited

PreconditioningType

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

typedef Fem::Operator< RangeFunctionType,DomainFunctionType > Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::PreconditioningType

RangeFieldType

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

typedef OperatorType::RangeFieldType Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::RangeFieldType

RangeFunctionType

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

typedef BaseType::RangeFunctionType Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::RangeFunctionType

RealType

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

typedef Dune::FieldTraits<RangeFieldType>::real_type Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::RealType

SolverParameterType

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

typedef SolverParameter Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::SolverParameterType

Constructor & Destructor Documentation

CGInverseOperator() [1/10]

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::CGInverseOperator ( const SolverParameter &  param = SolverParameter(Parameter::container()) )

inline

CGInverseOperator() [2/10]

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::CGInverseOperator ( RealType  redEps, RealType  absLimit, unsigned int  maxIter, bool  verbose, const ParameterReader &  parameter = Parameter::container()  )

inline

constructor of CGInverseOperator

Parameters

[in]	redEps	reduction epsilon
[in]	absLimit	absolut limit of residual
[in]	maxIter	maximum number of iteration steps
[in]	verbose	verbosity

CGInverseOperator() [3/10]

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::CGInverseOperator ( RealType  redEps, RealType  absLimit, unsigned int  maxIter, const ParameterReader &  parameter = Parameter::container()  )

inline

constructor of CGInverseOperator

Parameters

[in]	redEps	reduction epsilon
[in]	absLimit	absolut limit of residual
[in]	maxIter	maximum number of iteration steps

CGInverseOperator() [4/10]

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::CGInverseOperator ( RealType  redEps, RealType  absLimit, const ParameterReader &  parameter = Parameter::container()  )

inline

CGInverseOperator() [5/10]

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

template<class LinearOperator , std::enable_if_t< std::is_base_of< OperatorType, LinearOperator >::value, int > = 0>

Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::CGInverseOperator ( const LinearOperator &  op, RealType  redEps, RealType  absLimit, unsigned int  maxIter, bool  verbose, const ParameterReader &  parameter = Parameter::container()  )

inline

constructor of CGInverseOperator

Parameters

[in]	op	operator to invert
[in]	redEps	reduction epsilon
[in]	absLimit	absolut limit of residual
[in]	maxIter	maximum number of iteration steps
[in]	verbose	verbosity

CGInverseOperator() [6/10]

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

template<class LinearOperator , std::enable_if_t< std::is_base_of< OperatorType, LinearOperator >::value, int > = 0>

Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::CGInverseOperator ( const LinearOperator &  op, RealType  redEps, RealType  absLimit, unsigned int  maxIter, const ParameterReader &  parameter = Parameter::container()  )

inline

constructor of CGInverseOperator

Parameters

[in]	op	operator to invert
[in]	redEps	reduction epsilon
[in]	absLimit	absolut limit of residual
[in]	maxIter	maximum number of iteration steps

CGInverseOperator() [7/10]

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

template<class LinearOperator , std::enable_if_t< std::is_base_of< OperatorType, LinearOperator >::value, int > = 0>

Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::CGInverseOperator ( const LinearOperator &  op, RealType  redEps, RealType  absLimit, const ParameterReader &  parameter = Parameter::container()  )

inline

CGInverseOperator() [8/10]

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::CGInverseOperator ( const OperatorType &  op, const PreconditioningType &  precond, RealType  redEps, RealType  absLimit, unsigned int  maxIter, bool  verbose, const ParameterReader &  parameter = Parameter::container()  )

inline

constructor of CGInverseOperator

Parameters

[in]	op	operator to invert
[in]	precond	precondition operator
[in]	redEps	reduction epsilon
[in]	absLimit	absolut limit of residual
[in]	maxIter	maximum number of iteration steps

CGInverseOperator() [9/10]

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::CGInverseOperator ( const OperatorType &  op, const PreconditioningType &  precond, RealType  redEps, RealType  absLimit, unsigned int  maxIter, const ParameterReader &  parameter = Parameter::container()  )

inline

constructor of CGInverseOperator

Parameters

[in]	op	operator to invert
[in]	precond	precondition operator
[in]	redEps	reduction epsilon
[in]	absLimit	absolut limit of residual
[in]	maxIter	maximum number of iteration steps

CGInverseOperator() [10/10]

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::CGInverseOperator ( const OperatorType &  op, const PreconditioningType &  precond, RealType  redEps, RealType  absLimit, const ParameterReader &  parameter = Parameter::container()  )

inline

Member Function Documentation

apply()

template<class DiscreteFunction >

virtual void Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::apply ( const DomainFunctionType &  arg, RangeFunctionType &  dest  ) const

inlinevirtualinherited

application operator

The application operator actually solves the linear system \(op(dest) = arg\) using the CG method.

Parameters

[in]	arg	argument discrete function
[out]	dest	destination discrete function

averageCommTime()

template<class DiscreteFunction >

double Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::averageCommTime ( ) const

inlineinherited

return average communication time during last solve

bind() [1/5]

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

template<class LinearOperator , std::enable_if_t< std::is_base_of< OperatorType, LinearOperator >::value, int > = 0>

void Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::bind ( const LinearOperator &  op )

inline

bind() [2/5]

template<class DiscreteFunction >

void Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::bind ( const OperatorType &  op )

inlineinherited

bind() [3/5]

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

void Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::bind ( const OperatorType &  op )

inline

bind() [4/5]

template<class DiscreteFunction >

void Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::bind ( const OperatorType &  op, const PreconditionerType &  precond  )

inlineinherited

bind() [5/5]

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

void Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::bind ( const OperatorType &  op, const PreconditionerType &  precond  )

inline

checkPreconditioning()

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

template<class LinearOperator >

void Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::checkPreconditioning ( const LinearOperator &  linearOp )

inlineprotected

finalize()

virtual void Dune::Fem::Operator< DiscreteFunction , DiscreteFunction >::finalize ( )

inlinevirtualinherited

finalization of operator

Note

The default implementation is empty.

iterations()

template<class DiscreteFunction >

unsigned int Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::iterations ( ) const

inlineinherited

number of iterations needed for last solve

nonlinear()

virtual bool Dune::Fem::Operator< DiscreteFunction , DiscreteFunction >::nonlinear ( ) const

inlinevirtualinherited

Return true if the Operator is nonlinear and false otherwise (default is true).

operator()()

template<class DiscreteFunction >

virtual void Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::operator() ( const DomainFunctionType &  arg, RangeFunctionType &  dest  ) const

inlinevirtualinherited

application operator

The application operator actually solves the linear system \(op(dest) = arg\) using the CG method.

Parameters

[in]	arg	argument discrete function
[out]	dest	destination discrete function

Implements Dune::Fem::Operator< DiscreteFunction, DiscreteFunction >.

parameter()

template<class DiscreteFunction >

SolverParameter & Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::parameter ( ) const

inlineinherited

prepare()

template<class DiscreteFunction >

template<typename... A>

void Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::prepare ( A...  ) const

inlineinherited

setMaxIterations()

template<class DiscreteFunction >

void Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::setMaxIterations ( unsigned int  maxIter )

inlineinherited

unbind()

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

void Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::unbind ( )

inline

Member Data Documentation

operator_

template<class DiscreteFunction >

const OperatorType* Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::operator_ = nullptr

protectedinherited

parameter_

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

SolverParameter Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::parameter_

mutableprotected

preconditioner_

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

const PreconditionerType* Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::preconditioner_

protected

precondObj_

template<class DiscreteFunction , class Op = Fem::Operator< DiscreteFunction, DiscreteFunction >>

std::unique_ptr< PreconditioningType > Dune::Fem::CGInverseOperator< DiscreteFunction, Op >::precondObj_

protected

solver_

template<class DiscreteFunction >

SolverType Dune::Fem::Solver::CGInverseOperator< DiscreteFunction >::solver_

protectedinherited

---

The documentation for this class was generated from the following file:

• cginverseoperator.hh
